C-COR Flex Max901e Equipment Manual page 45

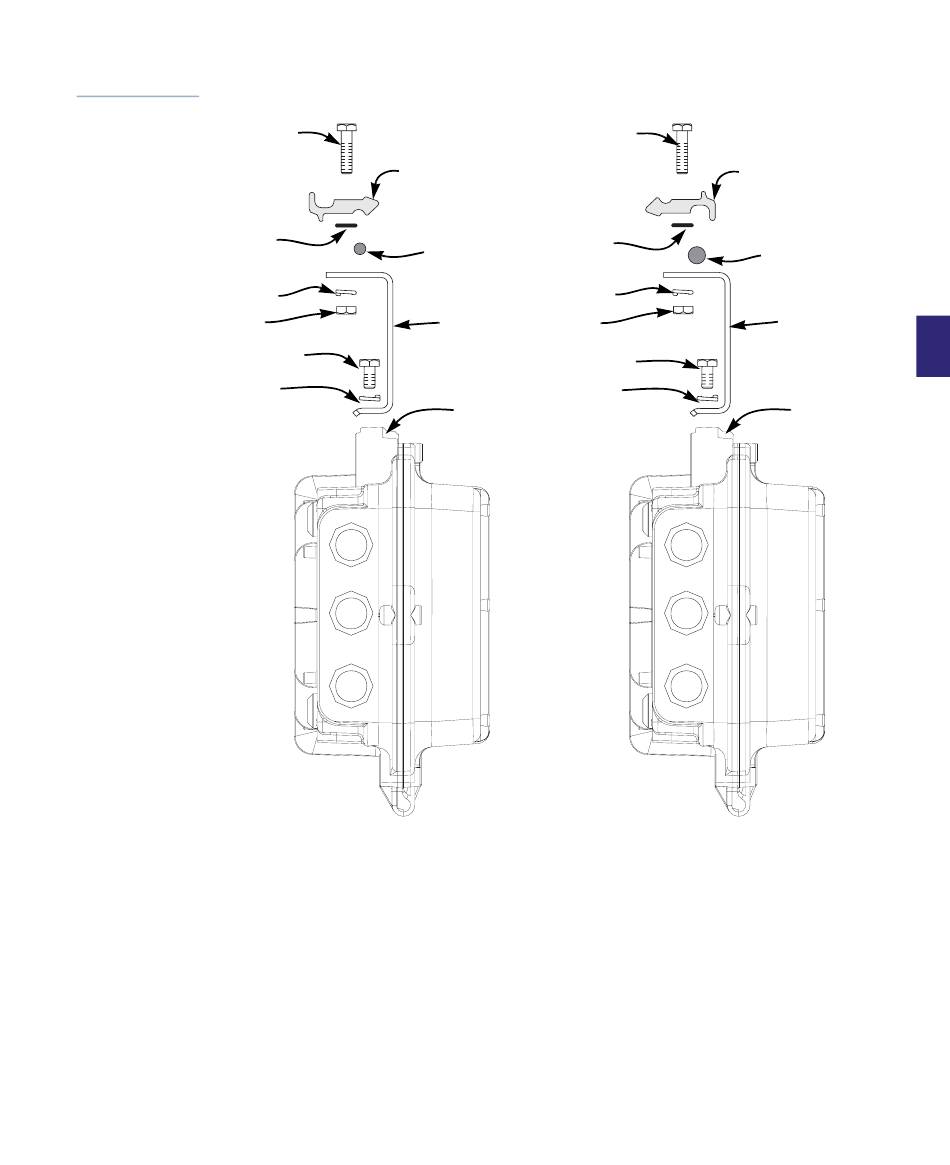

Figure 4.5
Strand/Pedestal
1-inch
Clamp Bolt
Mounting with EMBs
O-Ring
(retaining)
Lock
Washer
Nut
1/2-inch
EMB Bolt
Lock
Washer
1502154 Rev D
Strand Clamp
1/4-inch
Strand
EMB
Top
Strand
Clamp
Boss
Strand Clamp Orientation
for 1/4-inch Strand or Smaller
1-inch
Clamp Bolt
O-Ring
(retaining)
Lock
Washer
Nut
1/2-inch
EMB Bolt
Lock
Washer
Strand Clamp Orientation
for 5/16-inch Strand or Larger
Housing Instructions
Strand Clamp
5/16-inch
Strand
EMB
4
Top Strand
Clamp
Boss
4-9
