Housing Opening

The existing FlexNet amplifier has a specialized, diecast aluminum housing. Proper installation and
other housing related procedures are important to ensure the integrity of the electronics in the
housing.
3

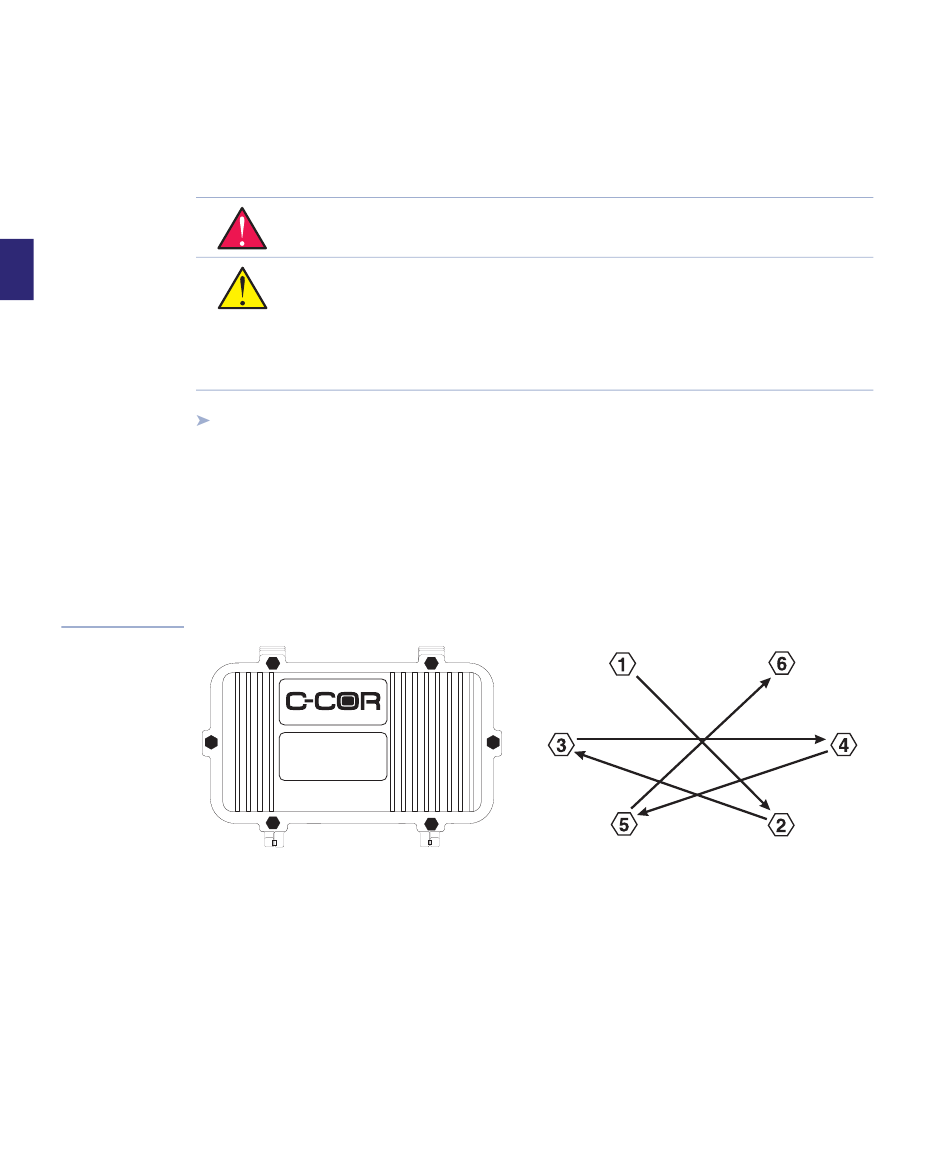

Figure 3.1
Housing Lid Bolt
Loosening Sequence
3-4 Flex Max901e 1GHz Trunk and Bridger Amplifiers
WARNING Hazardous voltages are present. Use approved safety equipment and
procedures.
CAUTION Amplifier electronic components can be damaged by the environment.
Close the housing whenever it is left unattended to keep moisture out of the station
and to protect the network from RF interference.
CAUTION When opening a housing, a vacuum may exist. If it is necessary to pry open
the lid, do so at the lid bolt bosses which offer additional structural support. Prying the
lid at another location may damage the housing.
To open the housing
1. Loosen the six captive lid bolts with a 7/16-inch (11 mm) nutdriver using the sequence
shown in Figure 3.1.
2. Hand loosen and release the two captive cover bolts next to the cover hinges. Hand loosen
and release the captive cover bolts at the ends of the unit.
3. While holding the cover closed with one hand, release the last two captive cover bolts, and
open (lower) the cover.
