Transponder Identification - C-COR Flex Max901e Equipment Manual

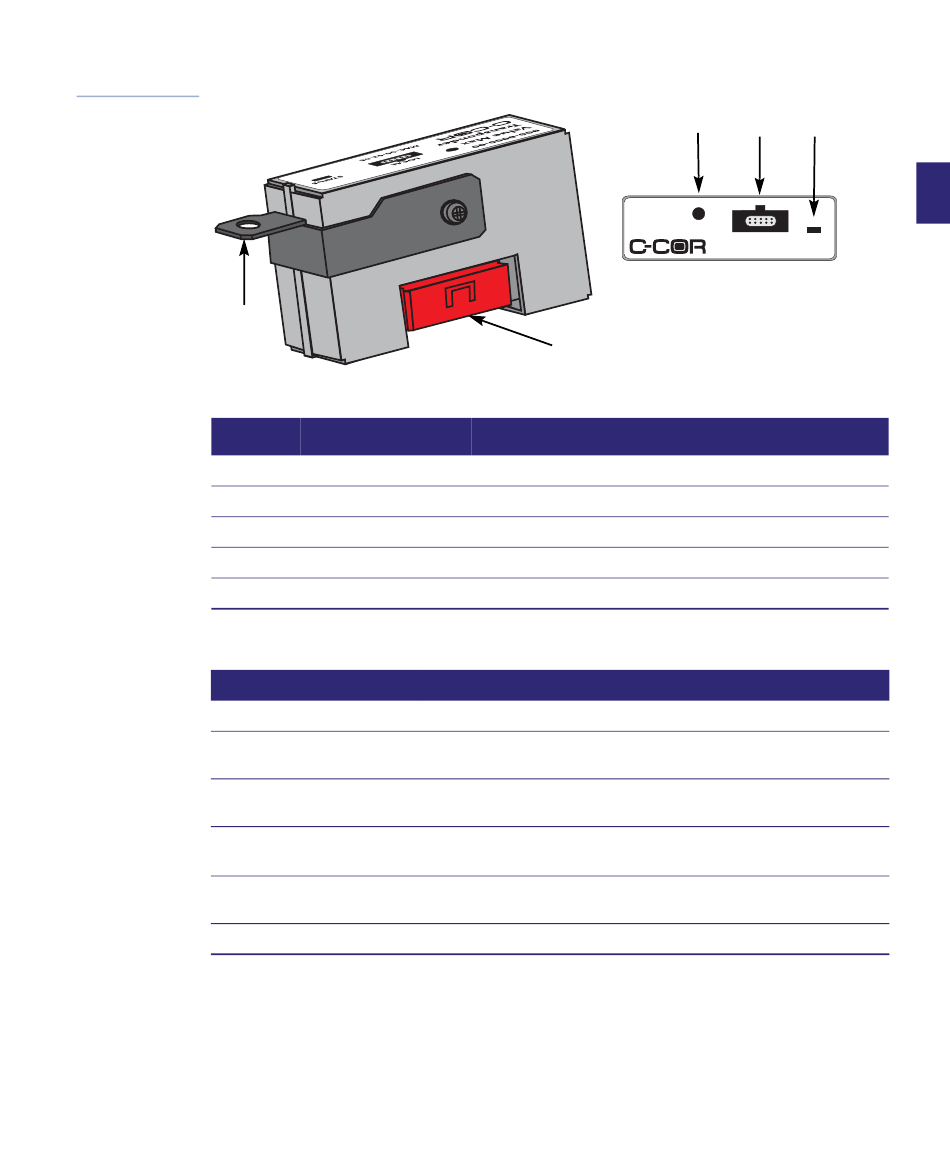

Figure 2.2
Transponder
Identification
1
Item
1
2
3
4
5
LED Sequence
Steady on for 3 to 10 seconds
Single blink every 5 seconds
Double blink every 5 seconds
Burst blink of transmitted data
Blinks on 0.5 second then off 0.5
second
Off, stays off
1502154 Rev D
Table 2.2 Transponder Identification
Label Function
Grounding Bracket Connects transponder to ground
Interface Connector Provides connection to RF board and element management system
Tamper Switch Detects open lid
LOCAL Provides local port for bench interface procedures
STATUS LED indicates transponder status
Table 2.3 Value Max Transponder LED Status
Indication
During boot-up immediately following installation.
On, but in search mode (RF input is low or receiver is not tuned to forward
data carrier).
Registration to forward data carrier frequency may be about to occur or may
be in process.
Transponder is sending data to the headend controller.
Blinks every second or so; often in multiple transponder systems.
Transmitter constantly on.
Fault/failure
3
Value Max
Transponder
MAC ADRS:
AM ADRS:
Actual size
2
Physical Identification
4 5
2
LOCAL
STATUS
xx-xx-xx-xx-xx-xx
xxxxxx
H
2-5
