Replacement - C-COR Flex Max901e Equipment Manual

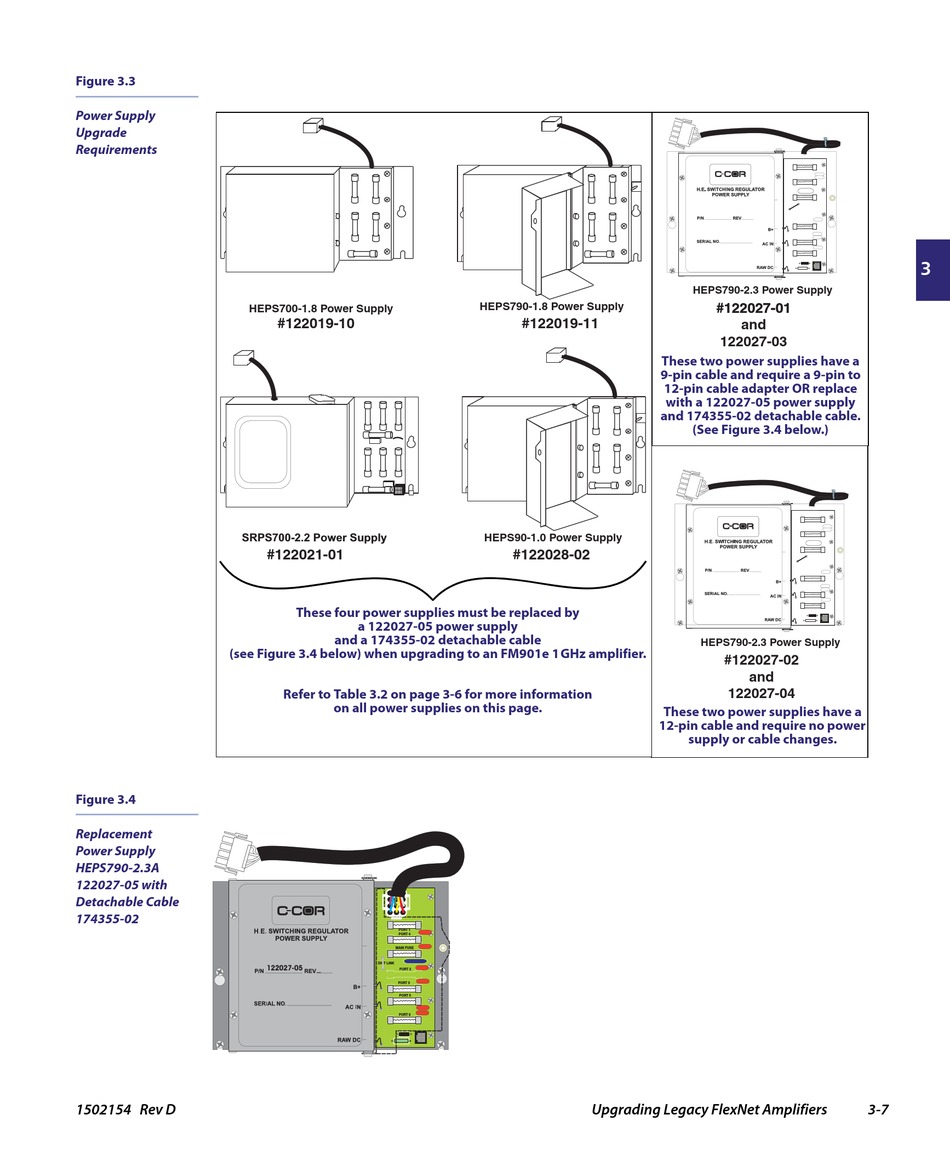

Figure 3.3
Power Supply
Upgrade
Requirements
HEPS700-1.8 Power Supply
SRPS700-2.2 Power Supply
(see Figure 3.4 below) when upgrading to an FM901e 1GHz amplifier.
Figure 3.4

Replacement

Power Supply
HEPS790-2.3A
122027-05 with
Detachable Cable
174355-02
1502154 Rev D
#122019-10
#122021-01
These four power supplies must be replaced by
a 122027-05 power supply
and a 174355-02 detachable cable
Refer to Table 3.2 on page 3-6 for more information
on all power supplies on this page.
PORT 1
PORT 4
MAIN FUSE
DIST LINK
122027-05
B
PORT 2
PORT 3
PORT 5
PORT 6
HEPS790-1.8 Power Supply
#122019-11
HEPS90-1.0 Power Supply
#122028-02
12-pin cable and require no power
Upgrading Legacy FlexNet Amplifiers
HEPS790-2.3 Power Supply
#122027-01 #122027-01
and
122027-03
These two power supplies have a
9-pin cable and require a 9-pin to
12-pin cable adapter OR replace
with a 122027-05 power supply
and 174355-02 detachable cable.
(See Figure 3.4 below.)
HEPS790-2.3 Power Supply
#122027-02
and
122027-04
These two power supplies have a
supply or cable changes.
