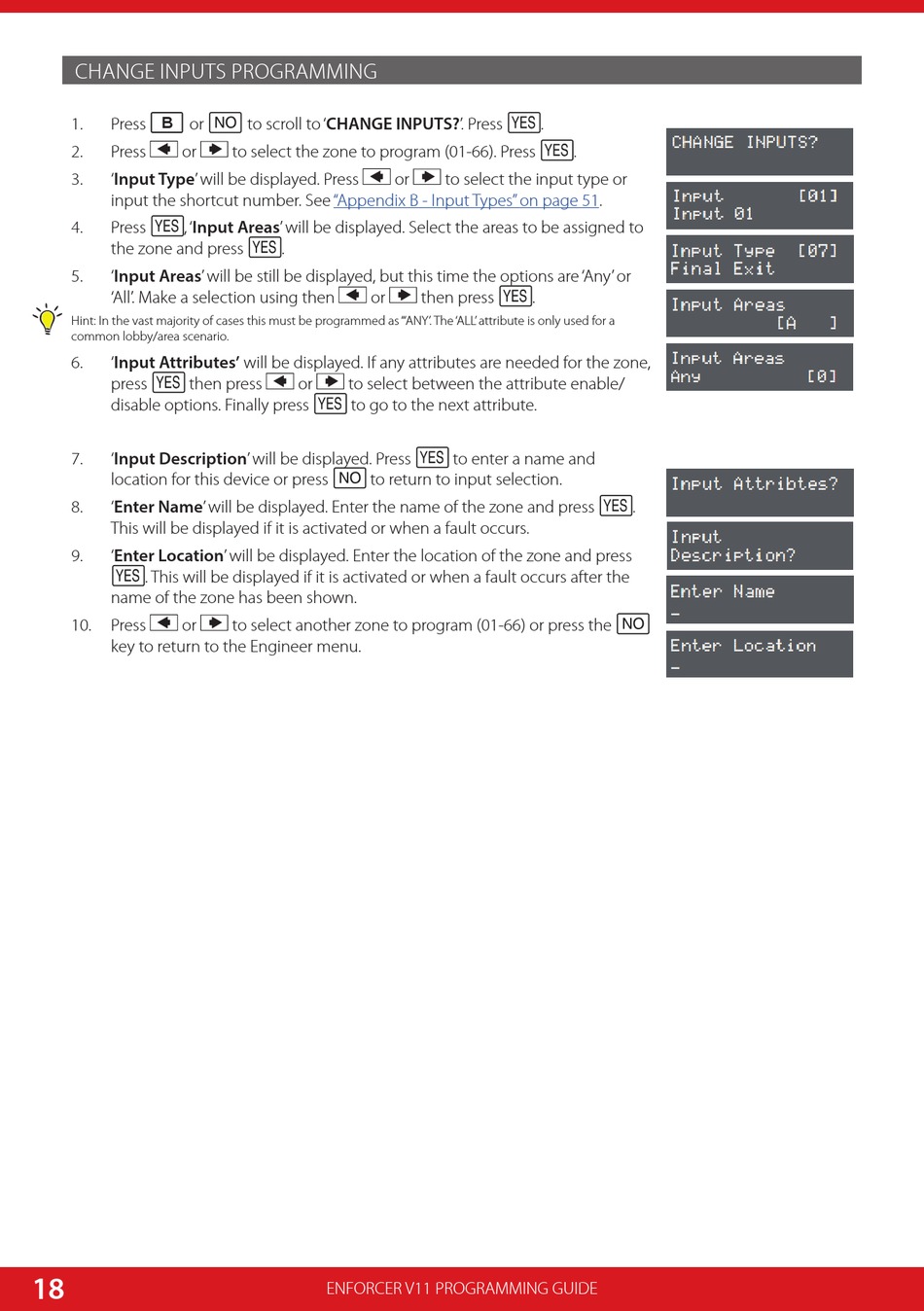

CHANGE INPUTS PROGRAMMING

Press b or h to scroll to 'CHANGE INPUTS?' . Press .
1.
Press [ or ] to select the zone to program (01-66). Press .
2.
'Input Type' will be displayed. Press [ or ] to select the input type or
3.
input the shortcut number. See
Press , 'Input Areas' will be displayed. Select the areas to be assigned to
4.
the zone and press .
5. 'Input Areas' will be still be displayed, but this time the options are 'Any' or
'All' . Make a selection using then [ or ] then press .
Hint: In the vast majority of cases this must be programmed as "'ANY' . The 'ALL' attribute is only used for a
common lobby/area scenario.
6. 'Input Attributes' will be displayed. If any attributes are needed for the zone,
press  then press [ or ] to select between the attribute enable/
disable options. Finally press  to go to the next attribute.
'Input Description' will be displayed. Press  to enter a name and
7.
location for this device or press h to return to input selection.
'Enter Name' will be displayed. Enter the name of the zone and press .
8.
This will be displayed if it is activated or when a fault occurs.
'Enter Location' will be displayed. Enter the location of the zone and press
9.
. This will be displayed if it is activated or when a fault occurs after the
name of the zone has been shown.
Press [ or ] to select another zone to program (01-66) or press the h
10.
key to return to the Engineer menu.
18
"Appendix B - Input Types" on page
ENFORCER V11 PROGRAMMING GUIDE
51.
