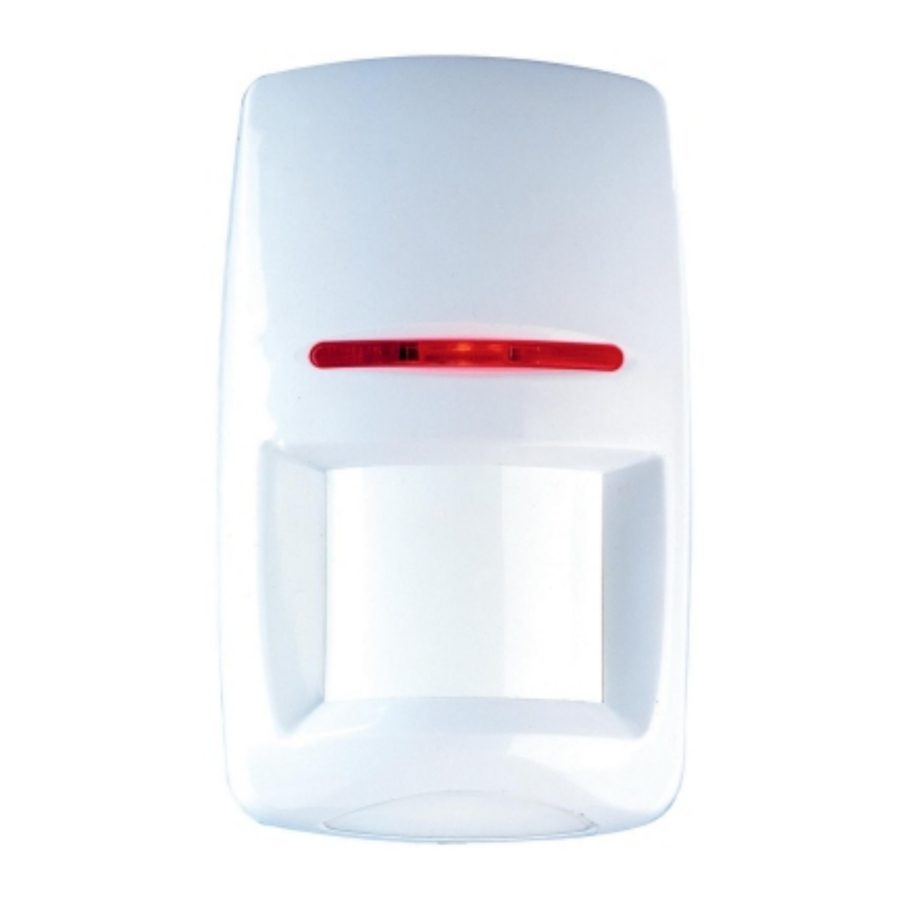

Pyronix ENFORCER Manual

INSTALLATION

1. Remove case lid by unscrewing fixing screw , and remove the PCB.
   (Do not touch Pyro sensor )
2. Choose suitable wall fixing holes.
3. Mark wall for fixing positions (Do not route wires near mains cabling, avoid vibrating surfaces, and only use solid wall).
4. Drill fixing holes.
5. Fix case to wall.
6. Replace PCB (Do not touch Pyro sensor ).
7. Refit lid to case and fasten.

POTENTIAL FALSE ALARM HAZARDS

1. Direct sun light on detector may cause false alarms.
2. Do not mount detectors near heaters.
3. Draughts from open windows may cause false alarms.

PET SETTINGS/PET RULES

PCB must be set in Pet Immune Position P2

Pet Settings.
DO NOT Change Jumper Positions

1. PIR must be set at a height of 2.4m.
2. Total weight of 1 pet or several smaller pets must not exceed 27Kg above 1m, or 36kg below the 1m line.
3. The PIR must be mounted parallel to the wall (with or without bracket).
4. Jumper positions must be set as shown in P1.
5. The PCB must be set in the Pet Immune Position as shown in P2.

HORIZONTAL COVERAGE PATTERN

See

MEASUREMENTS AND WEIGHT WITHOUT BRACKET

See

VERTICAL COVERAGE PATTERN

See

The total weight of 1 pet or several smaller Pets should not exceed 36 Kg below 1m or 27Kg above 1m

WIRING TO CONTROL PANEL

See -

Tamper Operation
Normal = Cover closed
Alarm = Cover open

Relay Contacts
Normal = No movement
Alarm = Intruder detected

FUNCTIONS

• PIR remote LED enable (E-)
  Function: Enables the PIR LED during walk test mode when the LED has been disabled by removing the LED link pin.
  Pyronix panels: From user mode enter walk test mode. The PIR LED will be enabled. Walk test the PIR. When exiting walk test mode the PIR LED will be disabled again.
  Connection: Connect (E-) to a PGM at the control panel programmed to be 0V when the system is in walk test mode.
  Pyronix panels: Connect (E-) to a PGM at the control panel programmed as (E-).
• PIR Latch memory (C+)
  Function: Allows an activated PIR to be identified after an alarm activation. Pyronix panels: On resetting the panel after an alarm activation, the PIR LED will flash at intervals of 1-2sec. To reset latch memory, enter the user code, and then again after 5 seconds.
  Connection: Connect (C+) to a PGM at the control panel programmed to be 12V after arming. To reset the latch memory create a 5 sec switch from 0V to 12V and back to 0V.
  Pyronix panels: Connect input (C+) to a PGM programmed as (C+) Use a 2K2 resistor from Aux (+) to the PGM.
• FTA (First To Alarm)
  Function: When 2 or more detectors with latch memory are connected to a single zone, FTA will allow the engineer (after an alarm) to identify the detector which was first to activate. After an alarm, reset the control panel. The LED of the first PIR to activate will be Flashing. The LED's of any other PIR's that were activated in the same zone will be permanently On.
  Connection: Daisy chain (FTA) inputs of all PIR's on the same zone.

SPECIFICATIONS

Pyronix Limited
Pyronix House
Braithwell Way
Hellaby, Rotherham
S66 8QY, ENGLAND

Customer Support:
+44(0)845 6434 999 (local rate)
or +44(0)1709 535225
Hours: Mon to Fri, 8:00am till 6:30pm
Email: customer.support@pyronix.com
Website: www.pyronix.com
