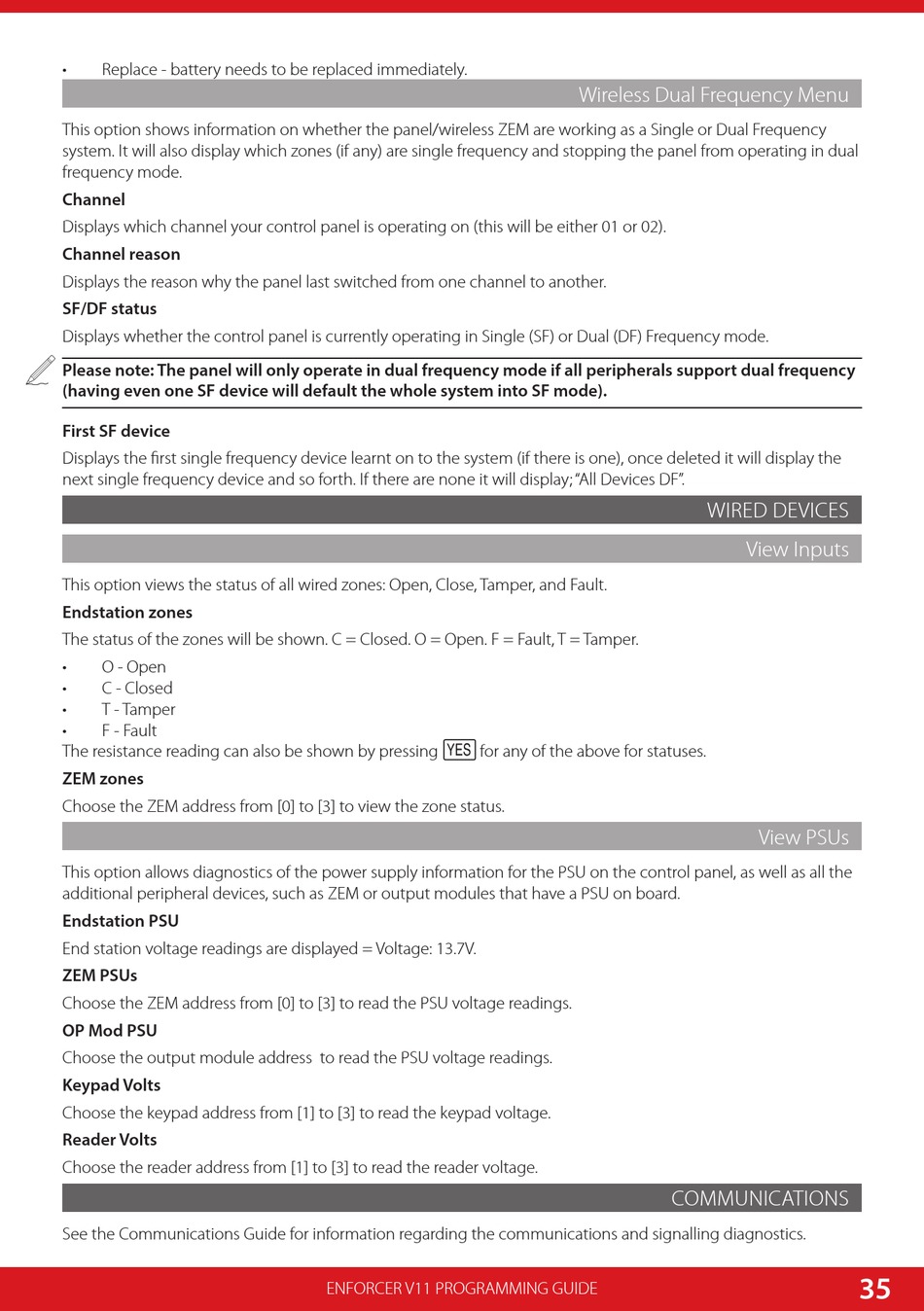

Replace - battery needs to be replaced immediately.

This option shows information on whether the panel/wireless ZEM are working as a Single or Dual Frequency

system. It will also display which zones (if any) are single frequency and stopping the panel from operating in dual

frequency mode.

Channel

Displays which channel your control panel is operating on (this will be either 01 or 02).

Channel reason

Displays the reason why the panel last switched from one channel to another.

SF/DF status

Displays whether the control panel is currently operating in Single (SF) or Dual (DF) Frequency mode.

Please note: The panel will only operate in dual frequency mode if all peripherals support dual frequency

(having even one SF device will default the whole system into SF mode).

First SF device

Displays the first single frequency device learnt on to the system (if there is one), once deleted it will display the

next single frequency device and so forth. If there are none it will display; "All Devices DF".

This option views the status of all wired zones: Open, Close, Tamper, and Fault.

Endstation zones

The status of the zones will be shown. C = Closed. O = Open. F = Fault, T = Tamper.

•

O - Open

•

C - Closed

•

T - Tamper

•

F - Fault

The resistance reading can also be shown by pressing  for any of the above for statuses.

ZEM zones

Choose the ZEM address from [0] to [3] to view the zone status.

This option allows diagnostics of the power supply information for the PSU on the control panel, as well as all the

additional peripheral devices, such as ZEM or output modules that have a PSU on board.

Endstation PSU

End station voltage readings are displayed = Voltage: 13.7V.

ZEM PSUs

Choose the ZEM address from [0] to [3] to read the PSU voltage readings.

OP Mod PSU

Choose the output module address to read the PSU voltage readings.

Keypad Volts

Choose the keypad address from [1] to [3] to read the keypad voltage.

Reader Volts

Choose the reader address from [1] to [3] to read the reader voltage.

See the Communications Guide for information regarding the communications and signalling diagnostics.

ENFORCER V11 PROGRAMMING GUIDE
