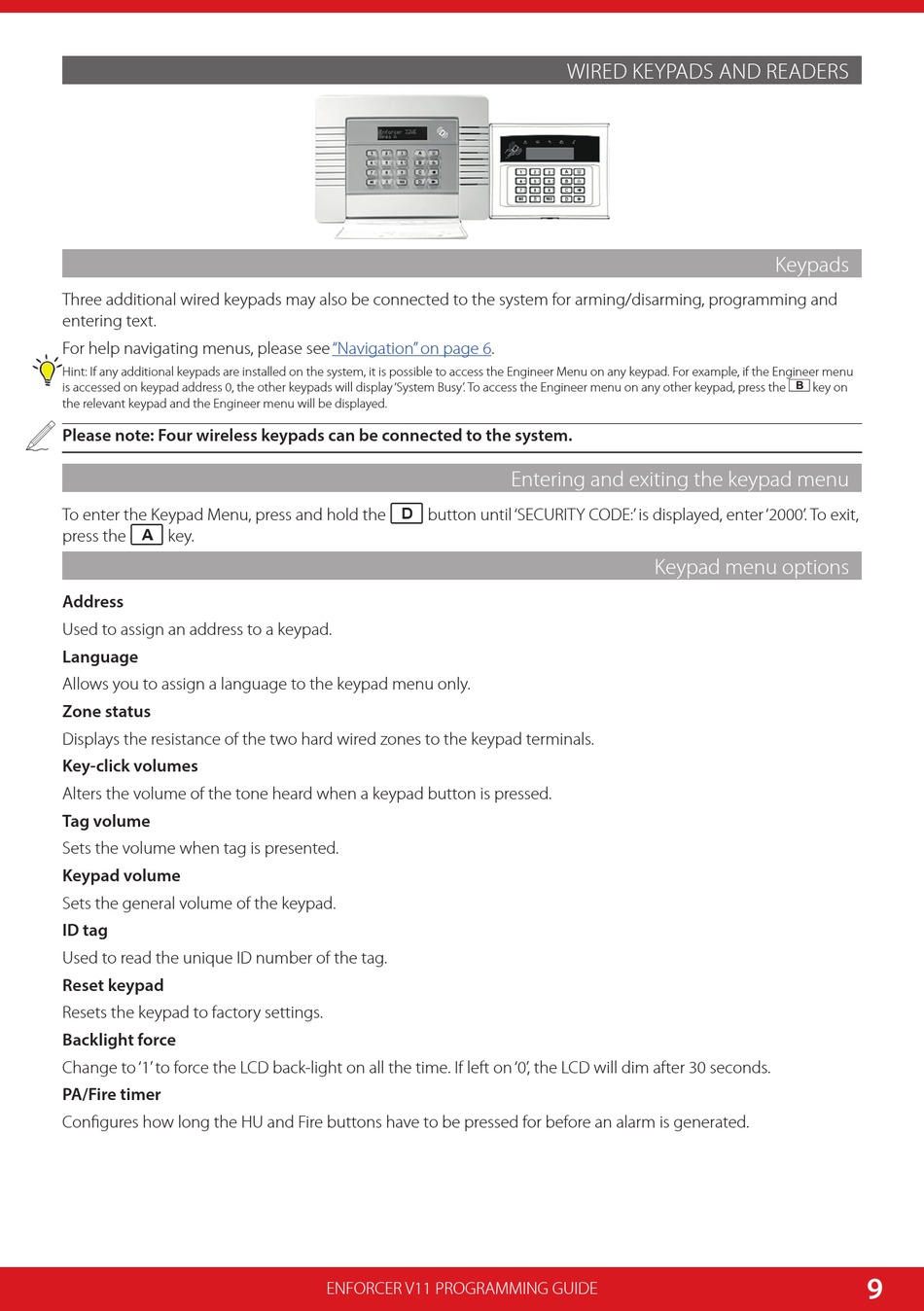

WIRED KEYPADS AND READERS

Keypads

Three additional wired keypads may also be connected to the system for arming/disarming, programming and
entering text.
For help navigating menus, please see "Navigation" on page 6.
Hint: If any additional keypads are installed on the system, it is possible to access the Engineer Menu on any keypad. For example, if the Engineer menu
is accessed on keypad address 0, the other keypads will display 'System Busy' . To access the Engineer menu on any other keypad, press the  key on
the relevant keypad and the Engineer menu will be displayed.
Please note: Four wireless keypads can be connected to the system.

Entering and exiting the keypad menu

To enter the Keypad Menu, press and hold the d button until 'SECURITY CODE:' is displayed, enter '2000' . To exit,
press the a key.

Keypad menu options

Address
Used to assign an address to a keypad.
Language
Allows you to assign a language to the keypad menu only.
Zone status
Displays the resistance of the two hard wired zones to the keypad terminals.
Key-click volumes
Alters the volume of the tone heard when a keypad button is pressed.
Tag volume
Sets the volume when tag is presented.
Keypad volume
Sets the general volume of the keypad.
ID tag
Used to read the unique ID number of the tag.
Reset keypad
Resets the keypad to factory settings.
Backlight force
Change to '1' to force the LCD back-light on all the time. If left on '0' , the LCD will dim after 30 seconds.
PA/Fire timer
Configures how long the HU and Fire buttons have to be pressed for before an alarm is generated.
9
ENFORCER V11 PROGRAMMING GUIDE
