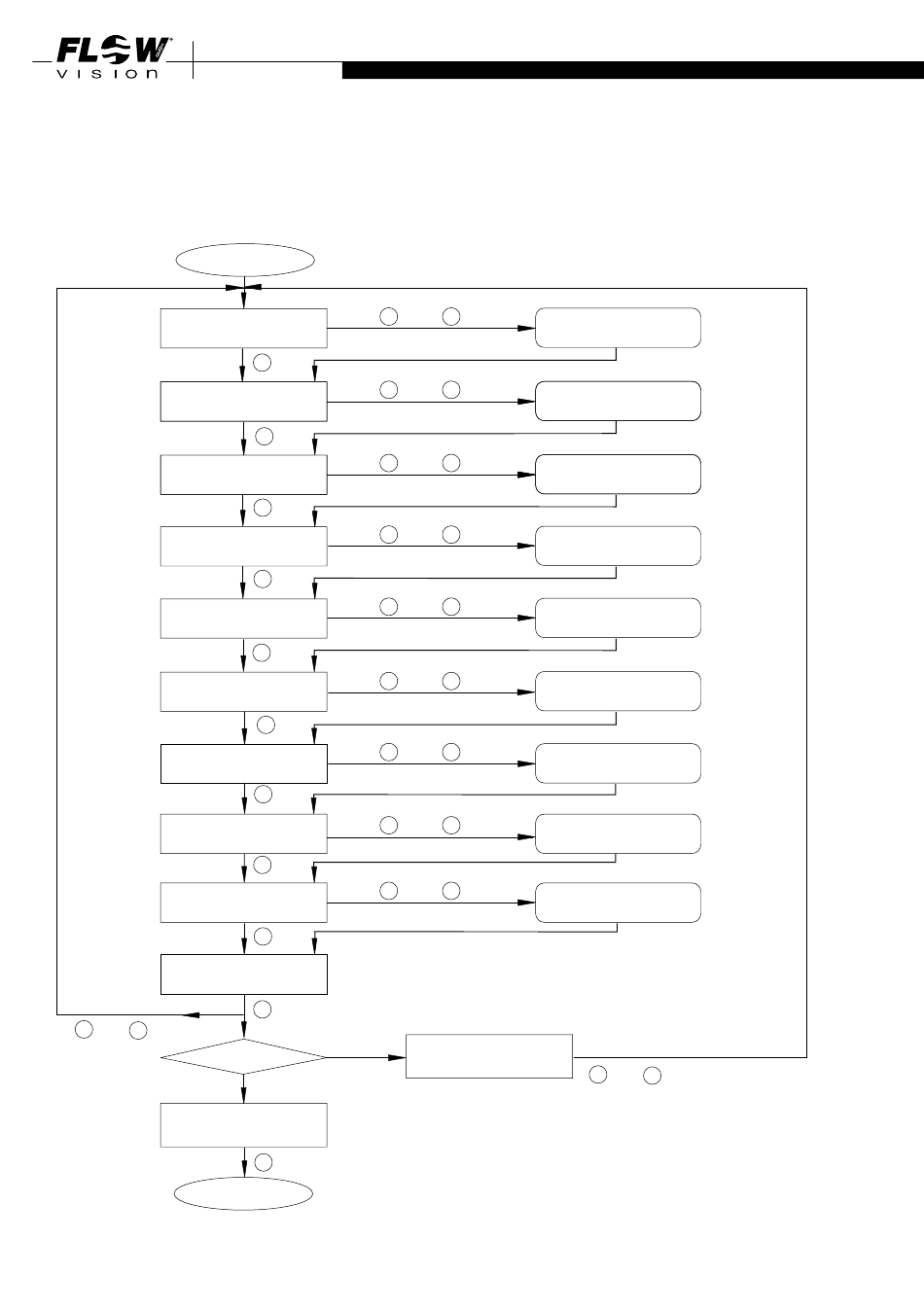

5 . 1 . 1 . 1 5 Configuration menu

Configuration
CONFIGURATION
SENSOR SELECT
CONFIGURATION
MEDIUM SELECT
CONFIGURATION
CUSTOMER TRIM
CONFIGURATION
LIMIT SWITCHES
CONFIGURATION
FLOW UNIT
CONFIGURATION
TEMP. UNIT
CONFIGURATION
DISPLAY SELECT
CONFIGURATION
ANA OUT FLOW
CONFIGURATION
ANA OUT TEMP.
END OF CONFIG.?
M→yes ▲ or ▼ → no
▲ or
▼
Config. plausible?
CONFIG. OK!
PUSH M
return (to main menu)
50
OPERATION
▲ and
M
and
▲
M
and
▲
M
and
▲
M
and
▲
M
and
▲
M
and
▲
M
▲ and
M
and
▲
M
M
no
yes
M
▼
submenu
sensor selection
▼
submenu
medium selection
▼
submenu
customer trim
▼
submenu
LS combination
▼
submenu
flow unit
▼
submenu
temperature unit
▼
submenu
display selection
submenu
▼
analogue flow
▼
submenu
analogue temperature
ERROR CONFIG.
▲
or
▼
