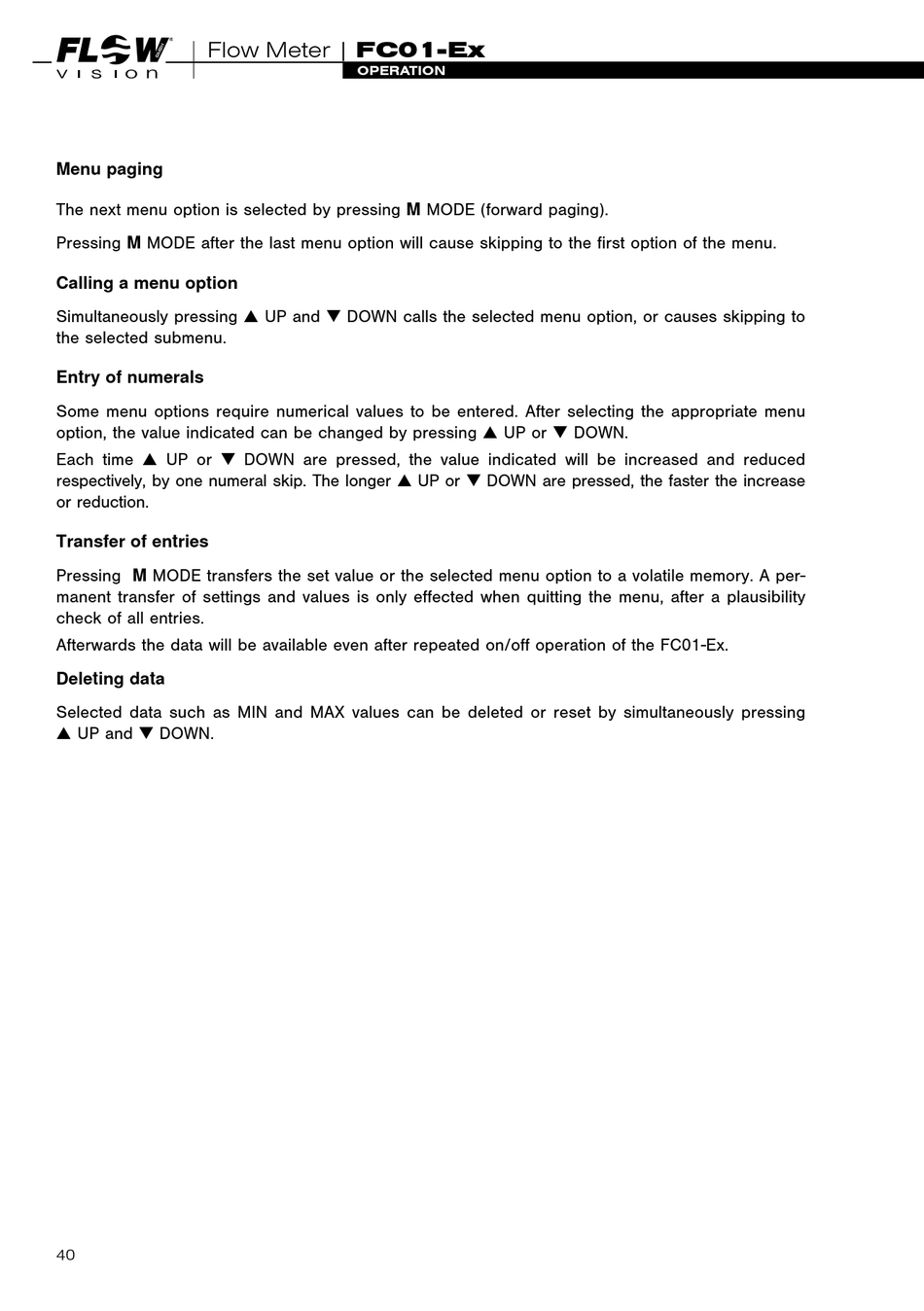

Flow vision FC01-Ex User Handbook Manual page 40

Flow Meter | FC01- Ex
OPERATION
Menu paging
The next menu option is selected by pressing M MODE (forward paging).
Pressing M MODE after the last menu option will cause skipping to the first option of the menu.
Calling a menu option
Simultaneously pressing s UP and t DOWN calls the selected menu option, or causes skipping to
the selected submenu.
Entry of numerals
Some menu options require numerical values to be entered. After selecting the appropriate menu
option, the value indicated can be changed by pressing s UP or t DOWN.
Each time s UP or t DOWN are pressed, the value indicated will be increased and reduced
respectively, by one numeral skip. The longer s UP or t DOWN are pressed, the faster the increase
or reduction.
Transfer of entries
Pressing M MODE transfers the set value or the selected menu option to a volatile memory. A per-
manent transfer of settings and values is only effected when quitting the menu, after a plausibility
check of all entries.
Afterwards the data will be available even after repeated on/off operation of the FC01-Ex.
Deleting data
Selected data such as MIN and MAX values can be deleted or reset by simultaneously pressing
s UP and t DOWN.
40
