2 .6 .2 Installation of electronic control unit FC01-Ex

2 .6 .2 . 1 Mechanical installation

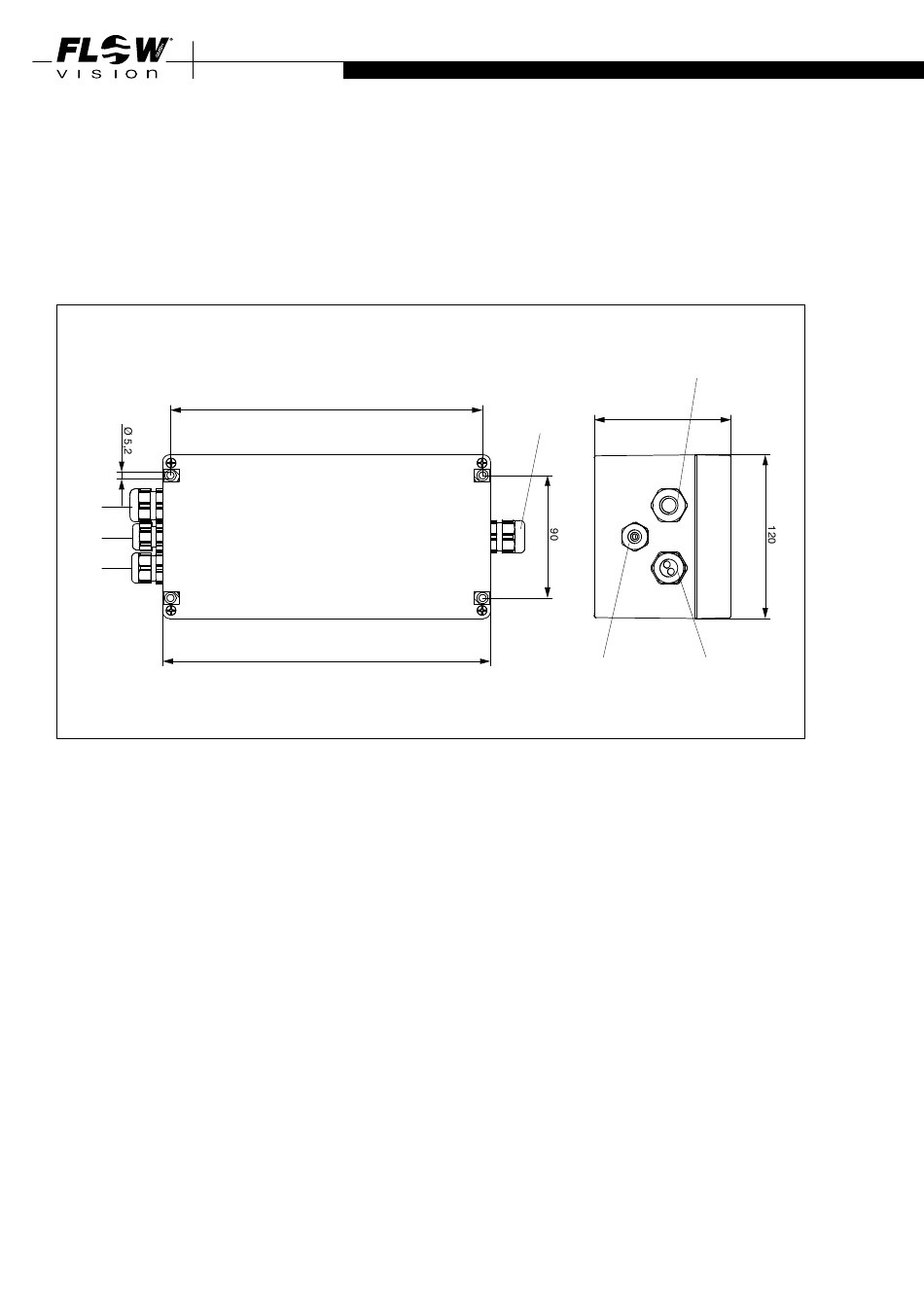

• The enclosure is installed by 4 retaining screws.
• The surface mounted enclosure meets protection degree IP54.
1
2
3

2 .6 .2 .2 Electrical connection

• Take the FC01-Ex equipotential bonding cables (≥ 1,5 mm
the cable gland 1 (fig. 7) and to the centre grounding system (fig. 6) and connect to terminal
USLKG5.
• Take the cable of the monitoring head through the blue cable gland and connect to the barriers
according to the connection scheme FC01-Ex (fig. 6).
• Take power supply feed through cable gland 2 and further required connection cables
through cable gland 3 (fig. 7) and connect to terminals XV (see connection scheme fig. 6).
