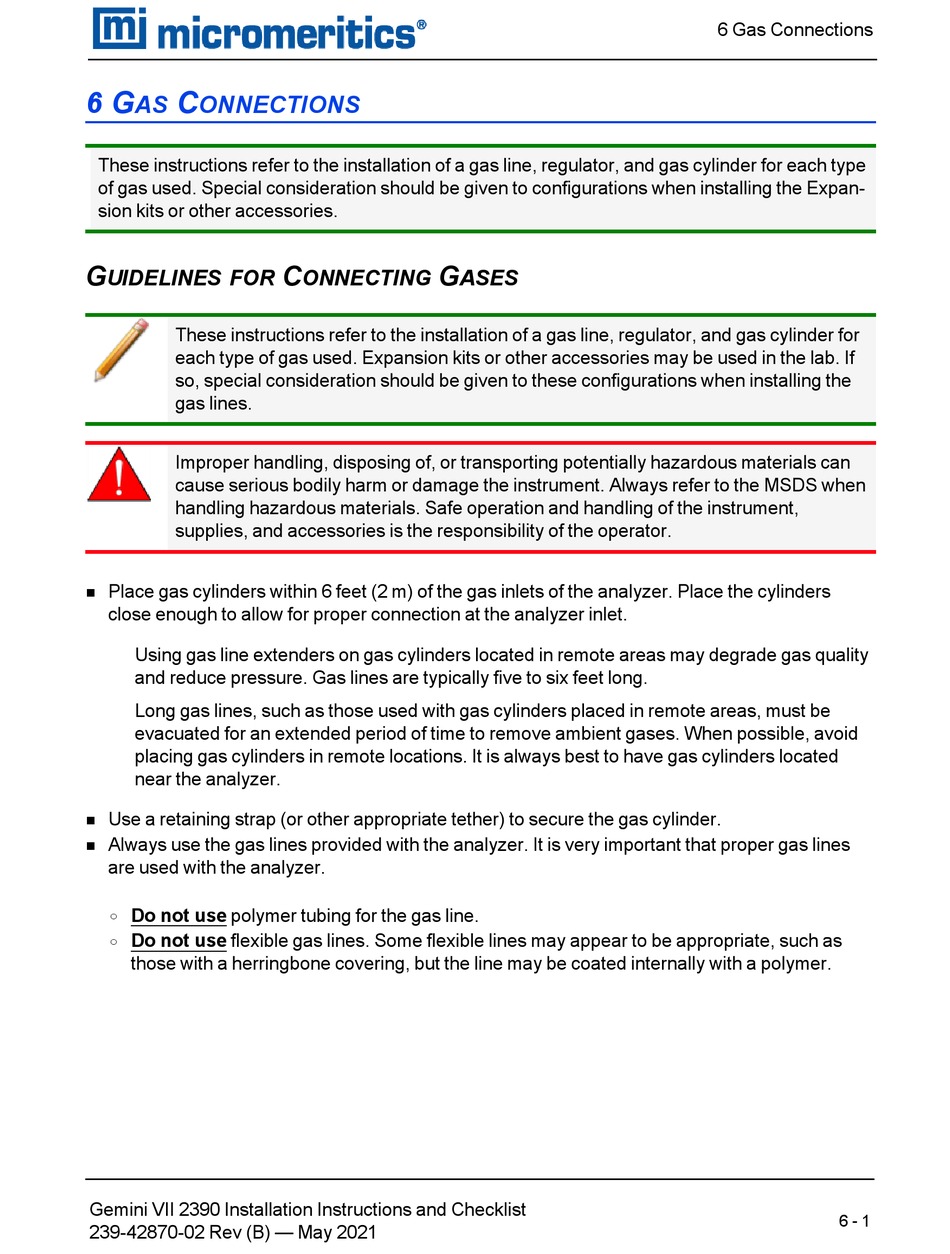

6 G C
AS ONNECTIONS
These instructions refer to the installation of a gas line, regulator, and gas cylinder for each type
of gas used. Special consideration should be given to configurations when installing the Expan-
sion kits or other accessories.
G
UIDELINES FOR
These instructions refer to the installation of a gas line, regulator, and gas cylinder for
each type of gas used. Expansion kits or other accessories may be used in the lab. If
so, special consideration should be given to these configurations when installing the
gas lines.
Improper handling, disposing of, or transporting potentially hazardous materials can
cause serious bodily harm or damage the instrument. Always refer to the MSDS when
handling hazardous materials. Safe operation and handling of the instrument,
supplies, and accessories is the responsibility of the operator.
Place gas cylinders within 6 feet (2 m) of the gas inlets of the analyzer. Place the cylinders
n
close enough to allow for proper connection at the analyzer inlet.
Using gas line extenders on gas cylinders located in remote areas may degrade gas quality
and reduce pressure. Gas lines are typically five to six feet long.
Long gas lines, such as those used with gas cylinders placed in remote areas, must be
evacuated for an extended period of time to remove ambient gases. When possible, avoid
placing gas cylinders in remote locations. It is always best to have gas cylinders located
near the analyzer.
Use a retaining strap (or other appropriate tether) to secure the gas cylinder.
n
Always use the gas lines provided with the analyzer. It is very important that proper gas lines
n
are used with the analyzer.
Do not use polymer tubing for the gas line.
o
Do not use flexible gas lines. Some flexible lines may appear to be appropriate, such as
o
those with a herringbone covering, but the line may be coated internally with a polymer.
Gemini VII 2390 Installation Instructions and Checklist
239-42870-02 Rev (B) — May 2021
C G
ONNECTING ASES

6 Gas Connections

6 - 1
