6 Gas Connections
If the Leak Rate field indicates Failed, a leak is indicated. Check the connections from the
regulator shut-off valve to the gas cylinder shut-off valve. Tighten as necessary, then run the
test again.

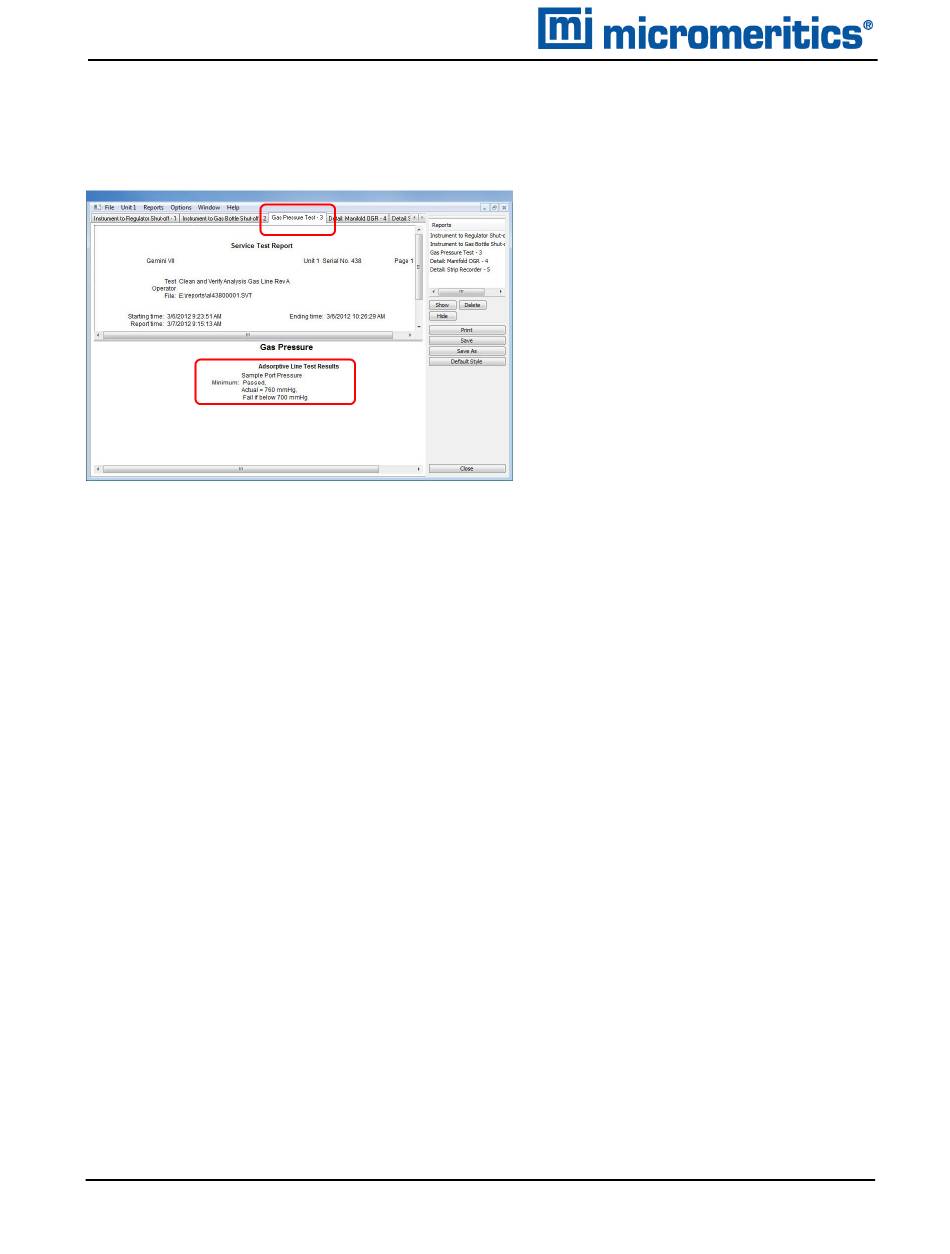

8. Click the Gas Pressure Test - 3 tab to display its report.
On the report, the Minimum field should read Passed indicating all valves are in the proper
state for operation.
If the Minimum field indicates Failed, one or more valves is not in the proper position. Set
the valves as shown at the beginning of this section and ensure the appropriate pressure is
displayed on the low pressure gauge.
If running the test again, close the gas cylinder valve before starting the test.
9. Click Close to close the test report. Click
6 - 8
Close again to close the test.
