5.3.2.5 Aircraft (Emitter) Category

The following options are offered for selecting aircraft (emitter) category:
•
•
•
•
•
•
•

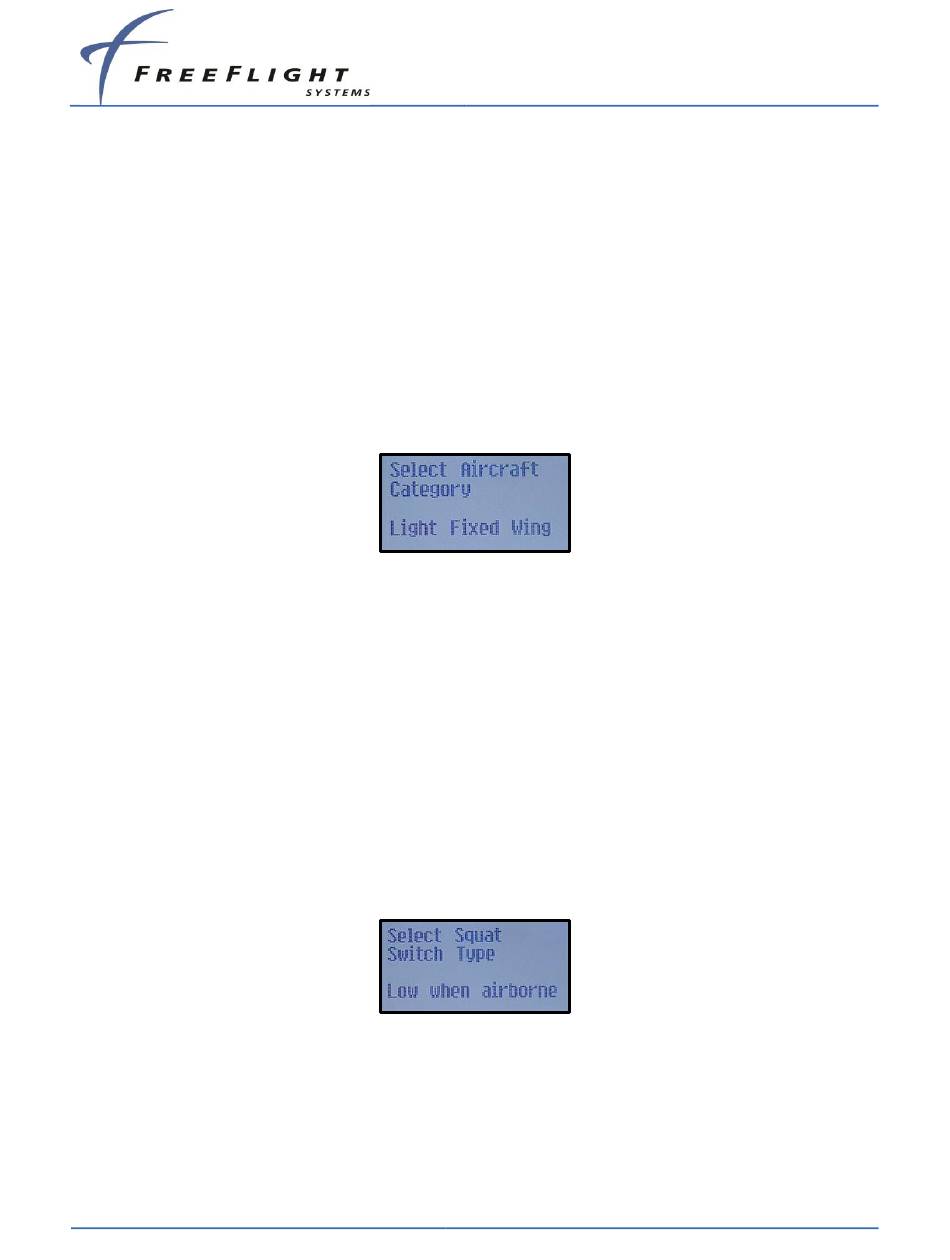

The display screen is as shown below with one of the options from the list above.
Rotate the CODE knob either clockwise or counterclockwise to display the options above and
select the correct aircraft category. Once selected, press the ENT button to confirm your
selection and move to the next configuration item in the setup mode.

5.3.2.6 Squat Switch Type

Rotate the CODE knob either clockwise or counterclockwise to display the options above and
select the correct Squat Switch type. Once selected, press the ENT button to confirm your
selection and move to the next configuration item in the setup mode.
The following options are offered for selecting aircraft Squat Switch type:
•
Not Connected
•
Low when ground
•
Low when airborne
The display screen is as shown below with one of the options from the list above.
