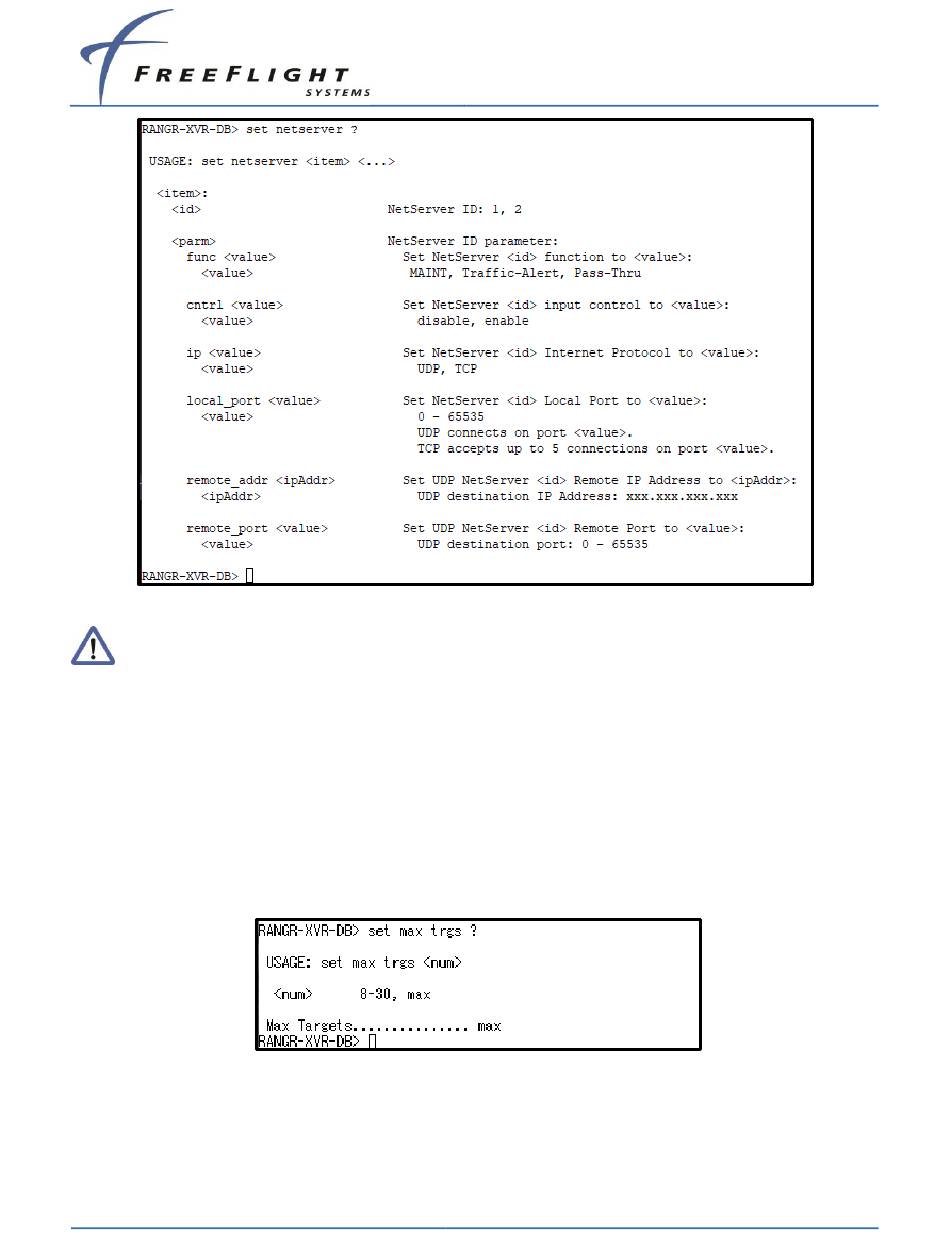

Figure 27: FDL-DB Series set netserver help menu

Refer to Section 5.1.1.5 and 5.1.1.7 for information on selecting network server

port control and functionality settings.

5.2.2.12.4 Display Output Settings

This section describes configuration settings for controlling traffic display output typically for

legacy displays.

5.2.2.12.4.1

This command sets the maximum number of targets to be sent on any configured serial or

ARINC 429 port configured for traffic display output. This is typically used to limit the number of

traffic targets for displays that can process a large number of traffic targets.

5.2.2.12.4.2

This command enables/disables the (Conflict Situational Awareness) CSA bit in the Heartbeat

message of the "Traffic-Alert" protocol. This parameter defaults to "disable" and should ONLY

be set to "enable" when interfacing to a Chelton FlightLogic Display. The Chelton display is not

TSO-C195a compliant and requires this Heartbeat message bit to be set or it will generate an

Figure 28: FDL-DB Series set max trgs command

ADS-B FDL-DB Dual Band Series

Installation Manual

Document No. 88552 Rev A

5-33
