3.6.2.5 Aircraft (Emitter) Category

The following options are offered for selecting aircraft (emitter) category:
1. Unknown
3. Medium Fixed Wing
5. High Vortex B757
7. High G/ High Speed
9. Glider/Sailplane
11. Parachutist
13. UAV

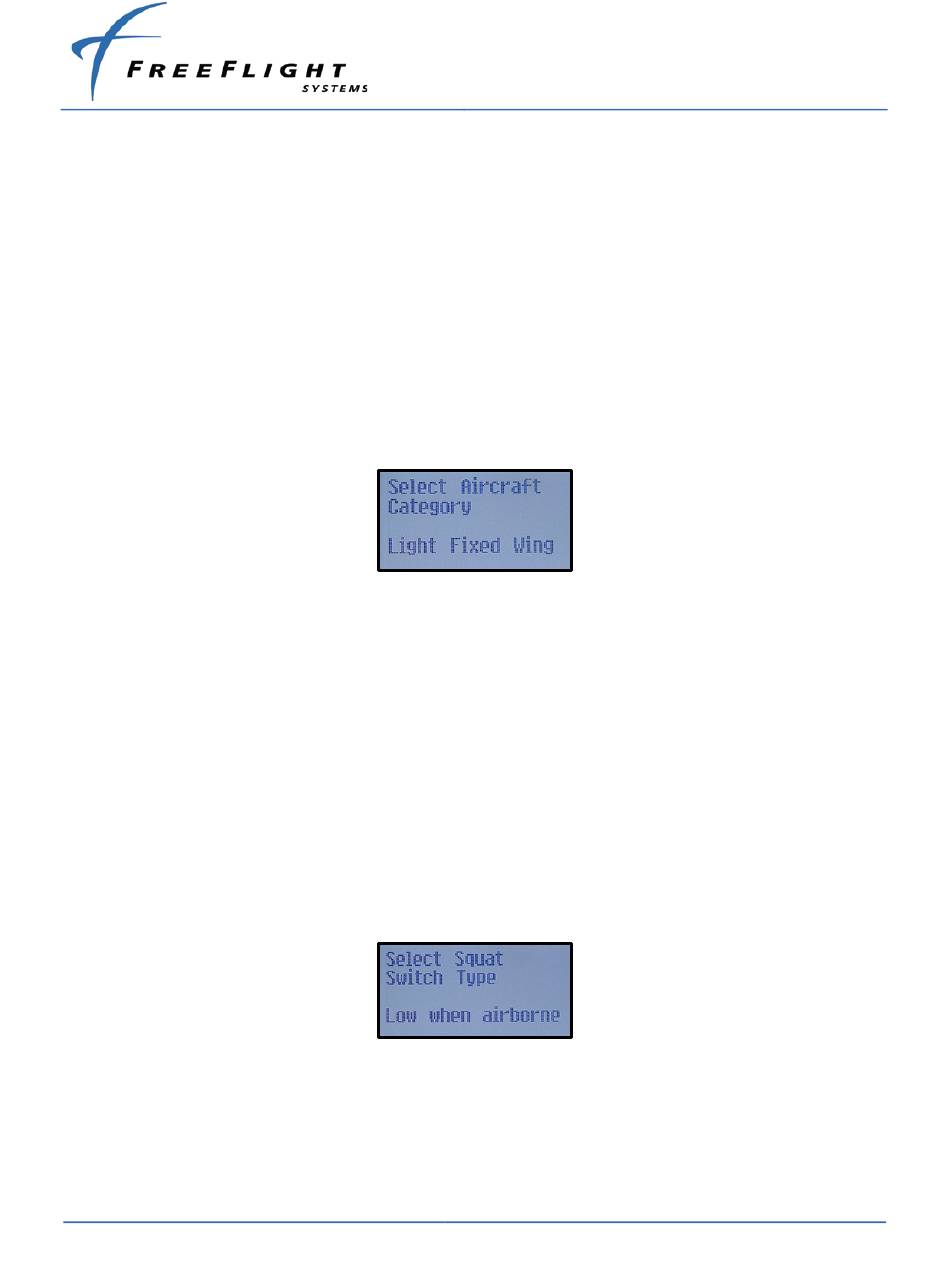

The display screen is as shown below with one of the options from the list above.
Rotate the CODE knob either clockwise or counterclockwise to display the options above and
select the correct aircraft category. Once selected, press the ENT button to confirm your
selection and move to the next configuration item in the setup mode.

3.6.2.6 Squat Switch Type

Rotate the CODE knob either clockwise or counterclockwise to display the options above and
select the correct Squat Switch type. Once selected, press the ENT button to confirm your
selection and move to the next configuration item in the setup mode.
The following options are offered for selecting aircraft Squat Switch type:
1. Not Connected
2. Low when ground
3. Low when airborne
The display screen is as shown below with one of the options from the list above.
FFS Copyright © 2015 All rights reserved.
ADS-B FDL-978 Series and
Lite Series Installation Manual
Document No. 87343 Rev F
2. Light Fixed Wing
4. Large Fixed Wing
6. Heavy Fixed Wing
8. Rotorcraft
10. Lighter than air
12. ULM/Hang/Paraglider
3-45
