ADS-B FDL-DB Dual Band Series
Installation Manual
Document No. 88552 Rev A
5.2

Maintenance Port Interface (MPI) Hardware Configuration

5.2.1 Terminal Program Interface

The following 5.2.1 sub-sections describe interfacing directly to the MPI using a terminal
interface program on a PC, like "Tera Term," to enter MPI commands. The interfaces discussed
earlier in sections 2.5.10, 2.5.10.1, 2.5.10.2 (Wi-Fi MPI, Serial-to-USB, Ethernet) can be used to
interface to the PC.
"Tera Term" should be installed on the PC and a MPI connection made via serial port or Wi-Fi
depending on the interface device used.
The terminal setup should be set to:
•
Local Echo – checked

5.2.1.1 Terminal MPI Network Connection Settings

A Network connection to the FDL-DB series systems can be made on the PC or Android tablet
running the ADS-B MPI app. The typical "Tera Term" TCP settings for the Network connections
are:
Table 21. Tera Term Network Connection Settings
Setting
Host Address
TCP Port (default)
OR UDP
Service
Protocol
5-18

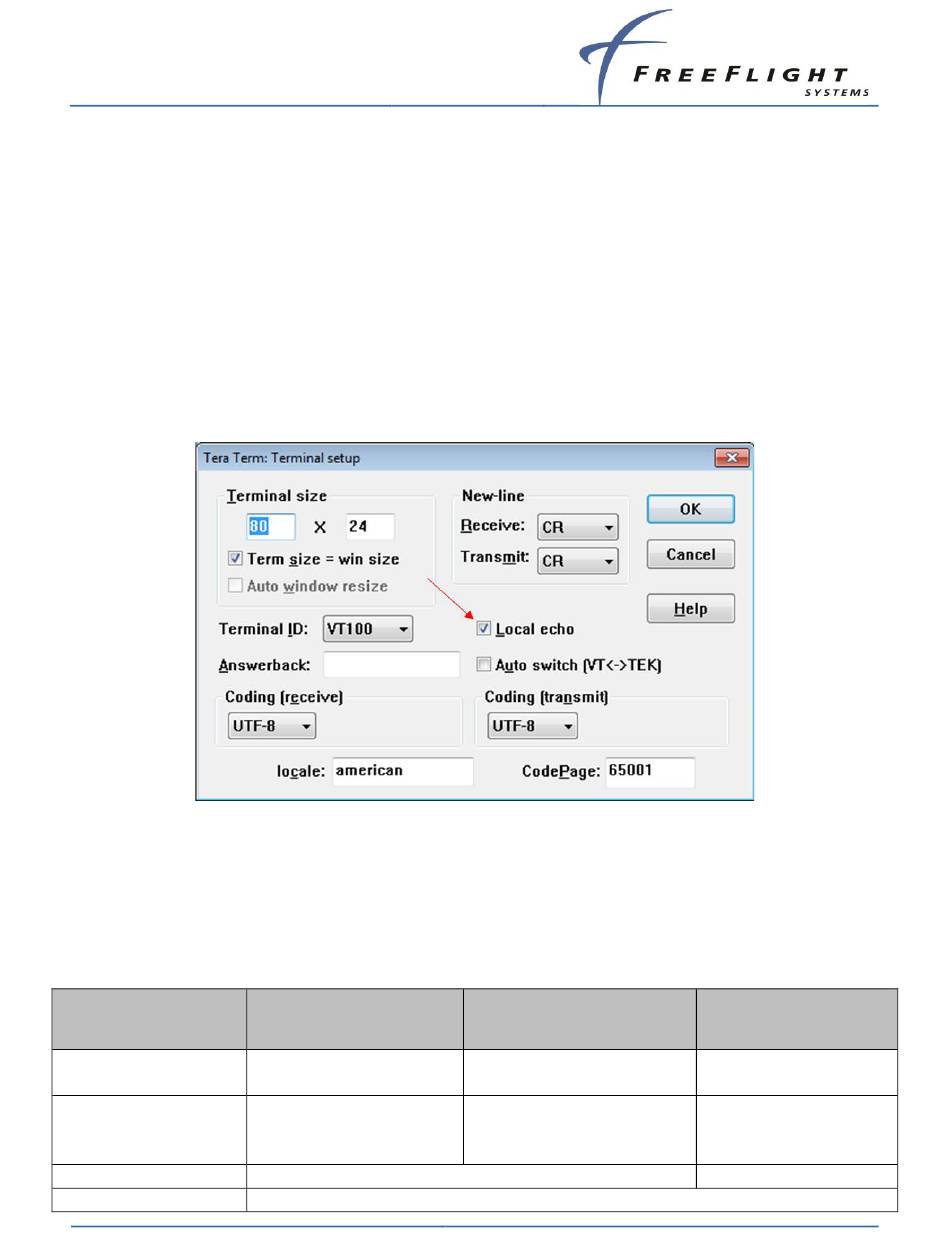

Figure 8: Tera Term Terminal Setup

Remote Network Server
Port 1
User configurable
44000 (default) OR User
configurable
Remote Network Server
Port 2
User configurable
55000 (Default) OR User
configurable
Other
UNSPEC
FFS Copyright © 2020 All rights reserved.
TELNET
DHCP (default)
OR User defined Static
23
Telnet
