ARINC OUT Chan 1 Data Type

The FDL-DB-XVR can transmit data via an ARINC 429 output channel. The following options are
offered for selecting ARINC 429 output type:
•
Not Used
•
GPS
•
Traffic
Refer to Section Error! Reference source not found. for information on selecting
ARINC output settings.

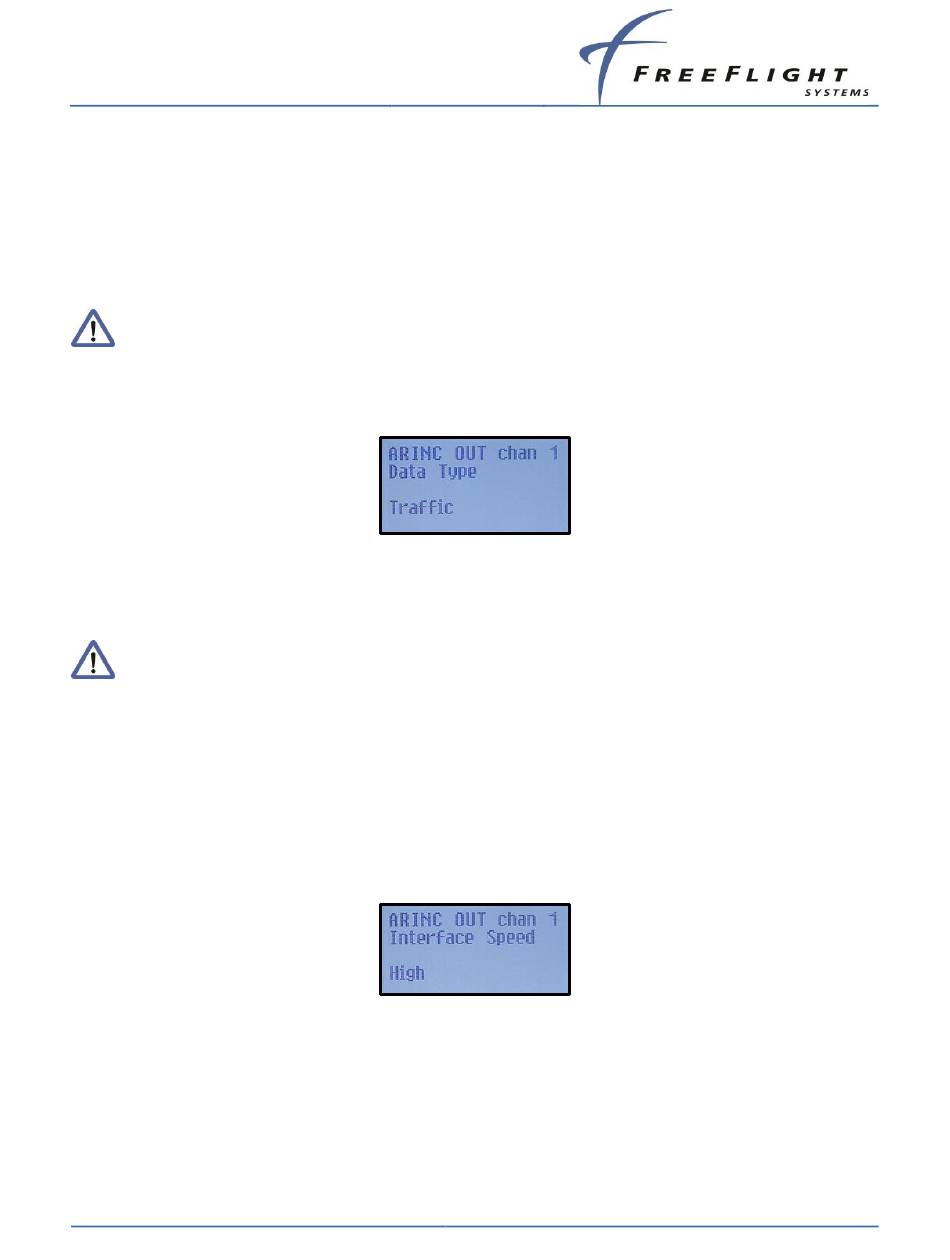

The display screen is as shown below with one of the options from the list above.
Rotate the CODE knob either clockwise or counterclockwise to display the options above and
select the correct ARINC output type. Once selected, press the ENT button to confirm your
selection and move to the next configuration item in the setup mode.
If "Not Used" is selected then the ARINC output line speed configuration mode is
not displayed and the next configuration mode item is displayed.
5.3.2.14

ARINC OUT Chan 1 Interface Speed

The following options are offered for selecting the ARINC output interface speed:
•
Low
•
High
The display screen is as shown below with one of the options from the list above.
Rotate the CODE knob either clockwise or counterclockwise to display the options above and
select the correct ARINC output interface speed. Once selected, press the ENT button to
confirm your selection and move to the next configuration item in the setup mode.
