2.2.1 FDL-DB Series

The FDL-DB Series equipment is designed to be mounted in any convenient location in the
cockpit, the cabin, or an avionics bay.
Select a position in the aircraft that is away from any high external heat source.
(The FDL-DB Series is not a significant heat source itself).
Avoid sharp bends and placing the cables too near to the aircraft control cables.
Secure the FDL-DB Series on a flat surface according to the mounting
requirements illustrated below in and in the installation drawing in SECTION 7.
FFS Copyright © 2020 All rights reserved.

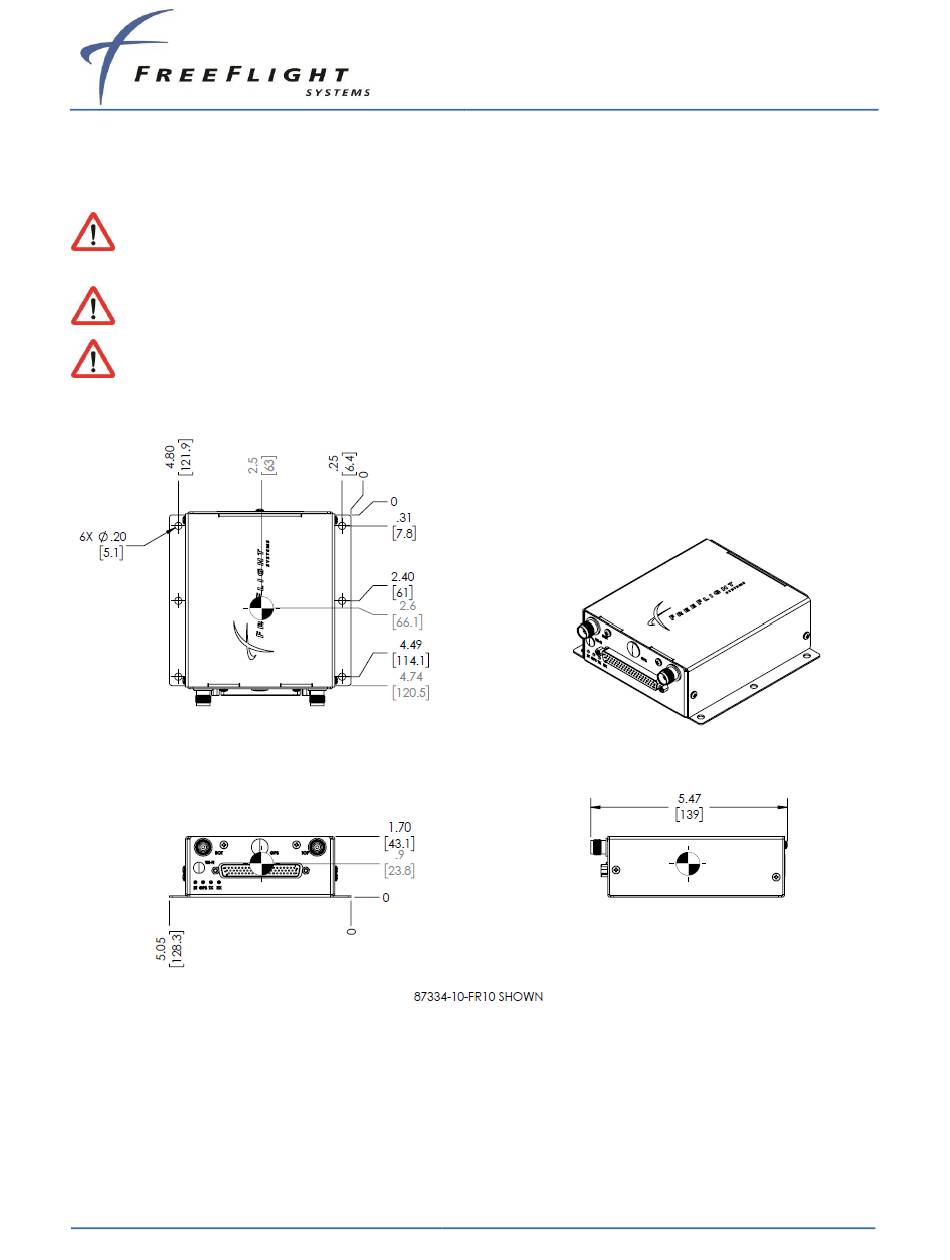

Figure 2: FDL-DB Series Mounting Dimensions
