ADS-B FDL-DB Dual Band Series
Installation Manual
Document No. 88552 Rev A
•
* Only used in conjunction with FTM-190C, external Transponder Monitor.
**When the Port 6 Output is set to Other 3, the corresponding Port 6 Input must be
configured for TMAP, as well. The baud rate must be set to 38400 to ensure proper
communication with the device.
Refer to Section 5.1.1.2 for details on selecting serial output settings.

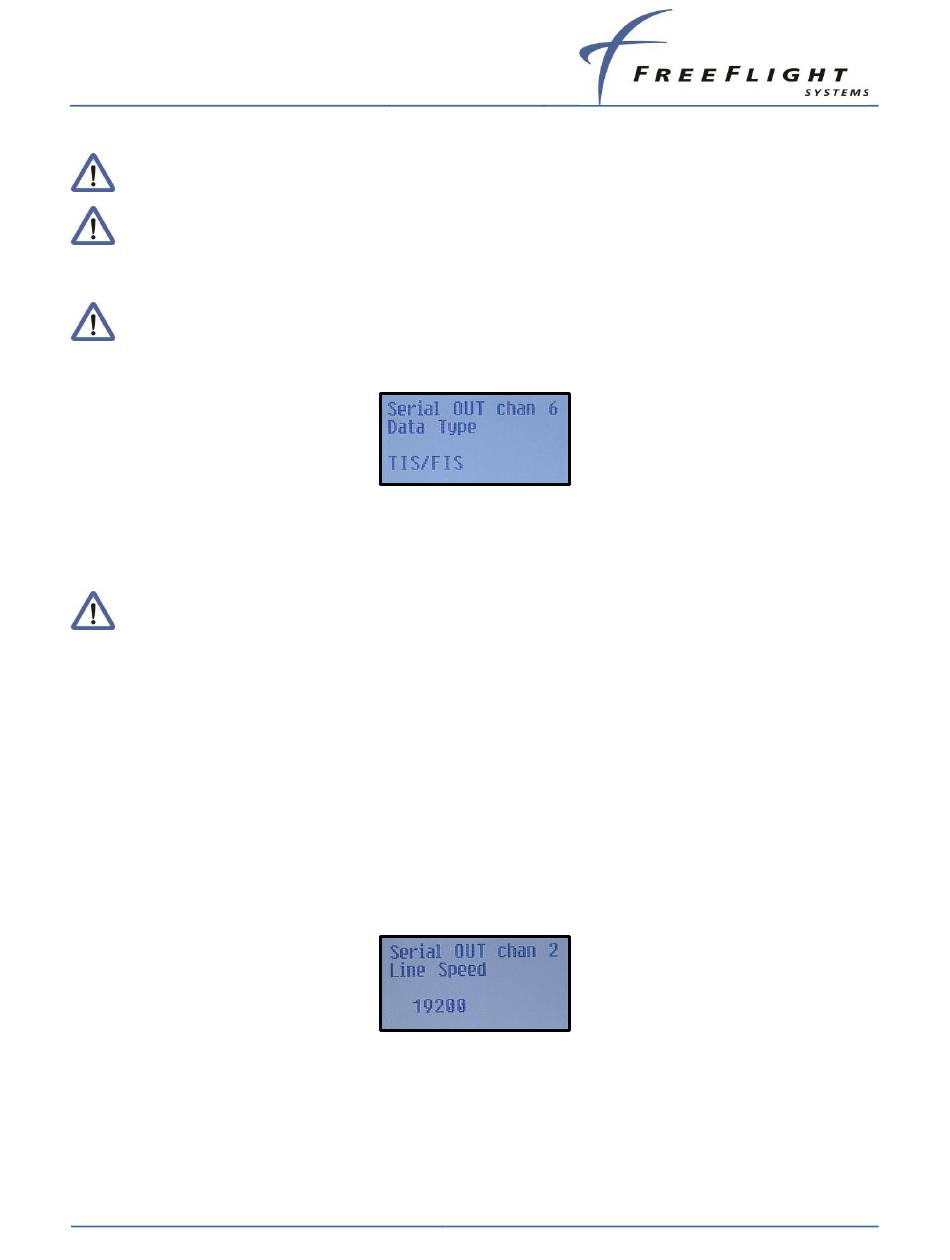

The display screen is as shown below with one of the options from the list above.
Rotate the CODE knob either clockwise or counterclockwise to display the options above and
select the correct serial output type. Once selected, press the ENT button to confirm your
selection and move to the next configuration item in the setup mode.
If "Not Used" is selected then the serial output line speed configuration mode is not
displayed and the next configuration mode item is displayed.
5.3.2.10

Serial OUT Channel X Line Speed

(X = channel number) The following options are offered for selecting the serial output baud rate
for each channel data type:
•
•
•
•
The display screen is as shown below with one of the options from the list above.
Rotate the CODE knob either clockwise or counterclockwise to display the options mentioned
above and select the correct serial output speed. Once selected, press the ENT button to
confirm your selection and move to the next configuration item in the setup mode.
5-42
ADS-B Pass Thru
4800
19200
57600
230400
•
9600
•
38400
•
115200
