ADS-B FDL-DB Dual Band Series
Installation Manual
Document No. 88552 Rev A
7.2

Equipment Specific Installations

7.2.1 FreeFlight Systems 1201 GPS

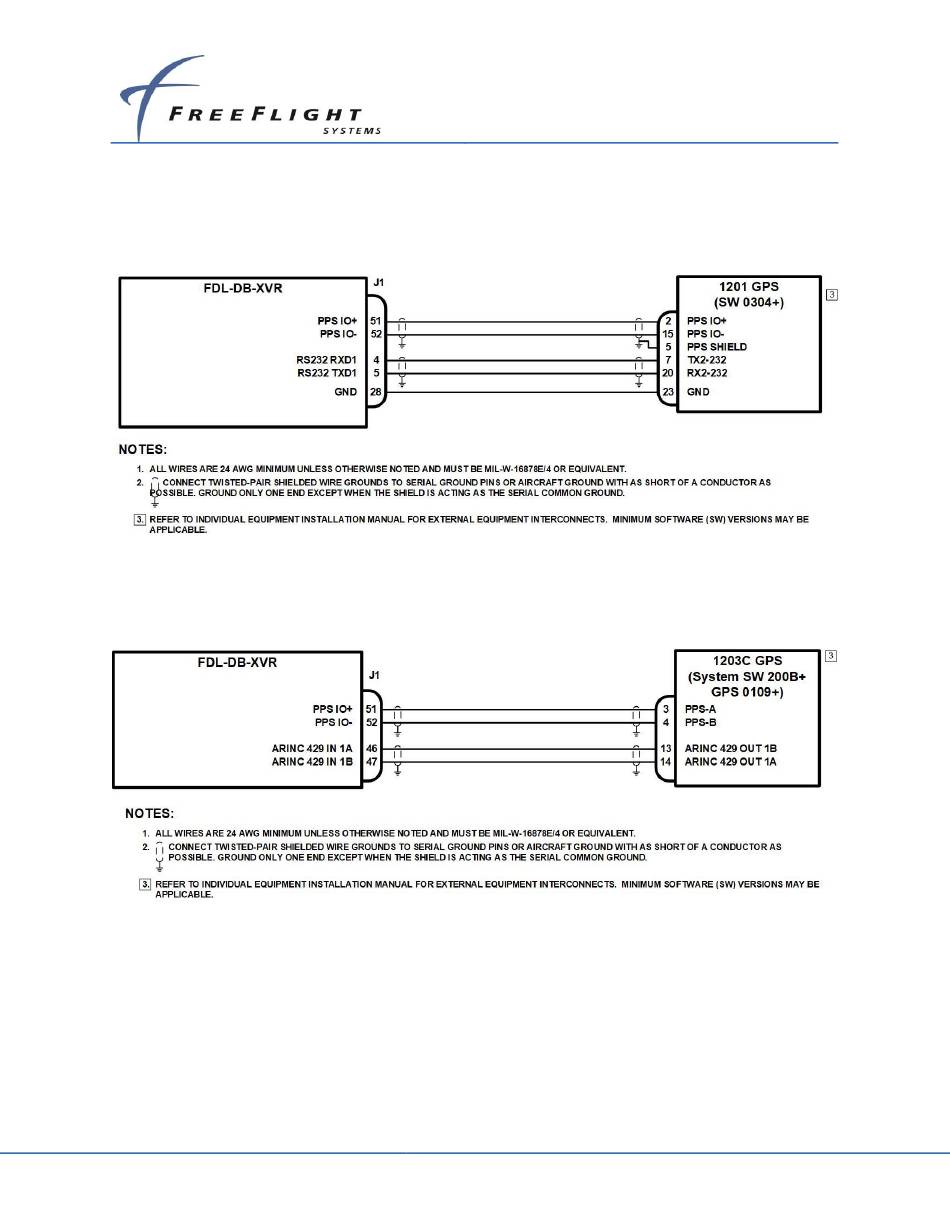

Figure 40: 1201 Wiring Diagram

7.2.2 FreeFlight Systems 1203C GPS

Figure 41: Figure1203C Wiring Diagram
