ADS-B FDL-DB Dual Band Series
Installation Manual
Document No. 88552 Rev A
5.2.2.5 "control" Command
This command displays the control, squawk and mode status including the Squawk Code,
IDENT status, altitude control status, call sign, transmit control status and vertical status.
5.2.2.6 "gps" Command
This command displays data which is being received from the GPS input.
5.2.2.7 "info" Command
This command displays information such as Serial Number, operation time and hardware and
software version information about the FDL-978 Series. Example output is displayed below:
5-26

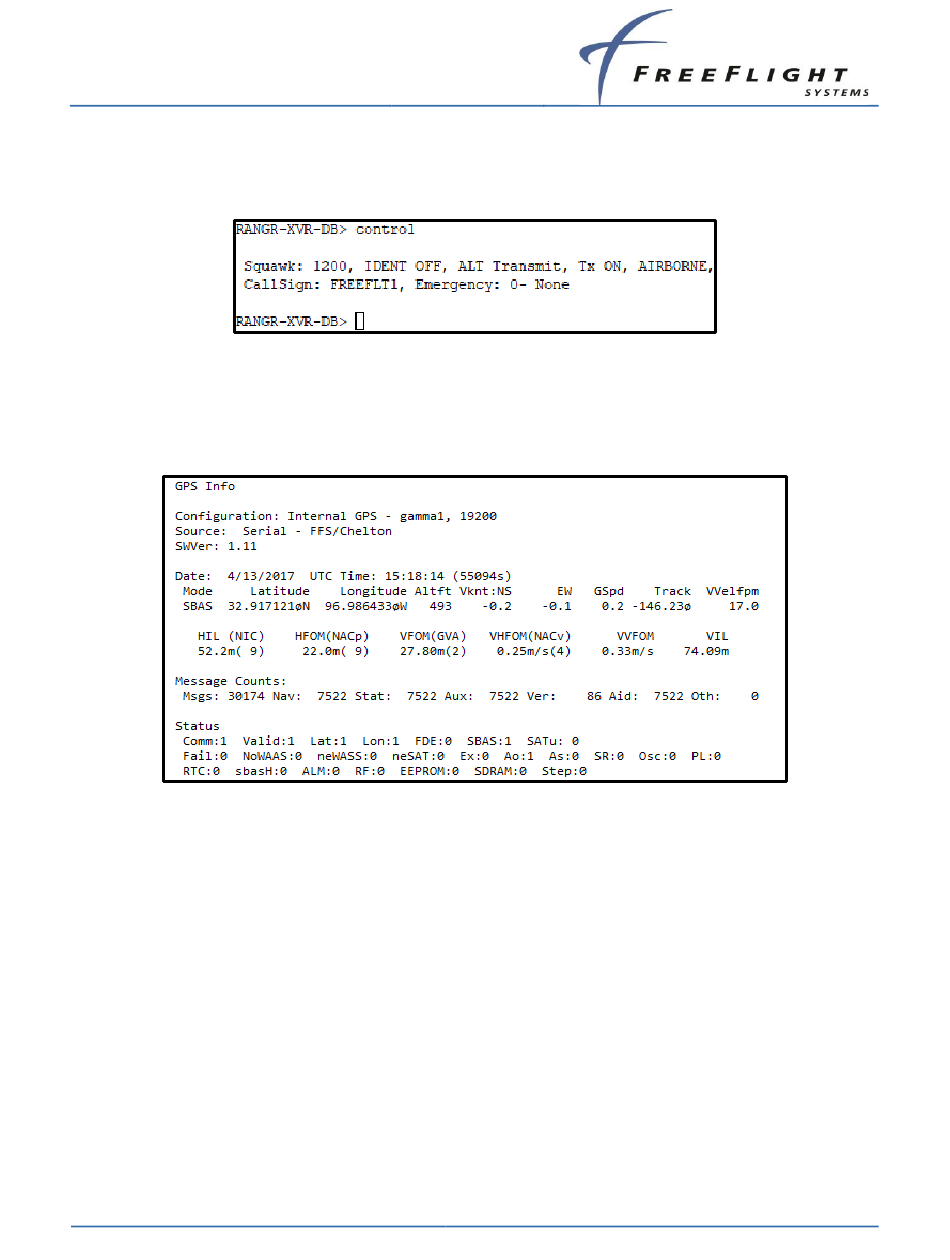

Figure 17: FDL-DB Series control menu
Figure 18: FDL-DB Series gps menu
FFS Copyright © 2020 All rights reserved.
