2.2.3 Singlewire InformaCast Loudspeaker Amplifier System Installation and
Connection Options
The following figures show the connection options for the Singlewire InformaCast Loudspeaker
Amplifier.
When line-in is enabled on
the device, the audio
received from the line-in
connection will be played
to the speaker(s) and line-
out connection as the low-
est priority audio.
Operations Guide

Singlewire InformaCast Loudspeaker Amplifier System Installation and Connection Options

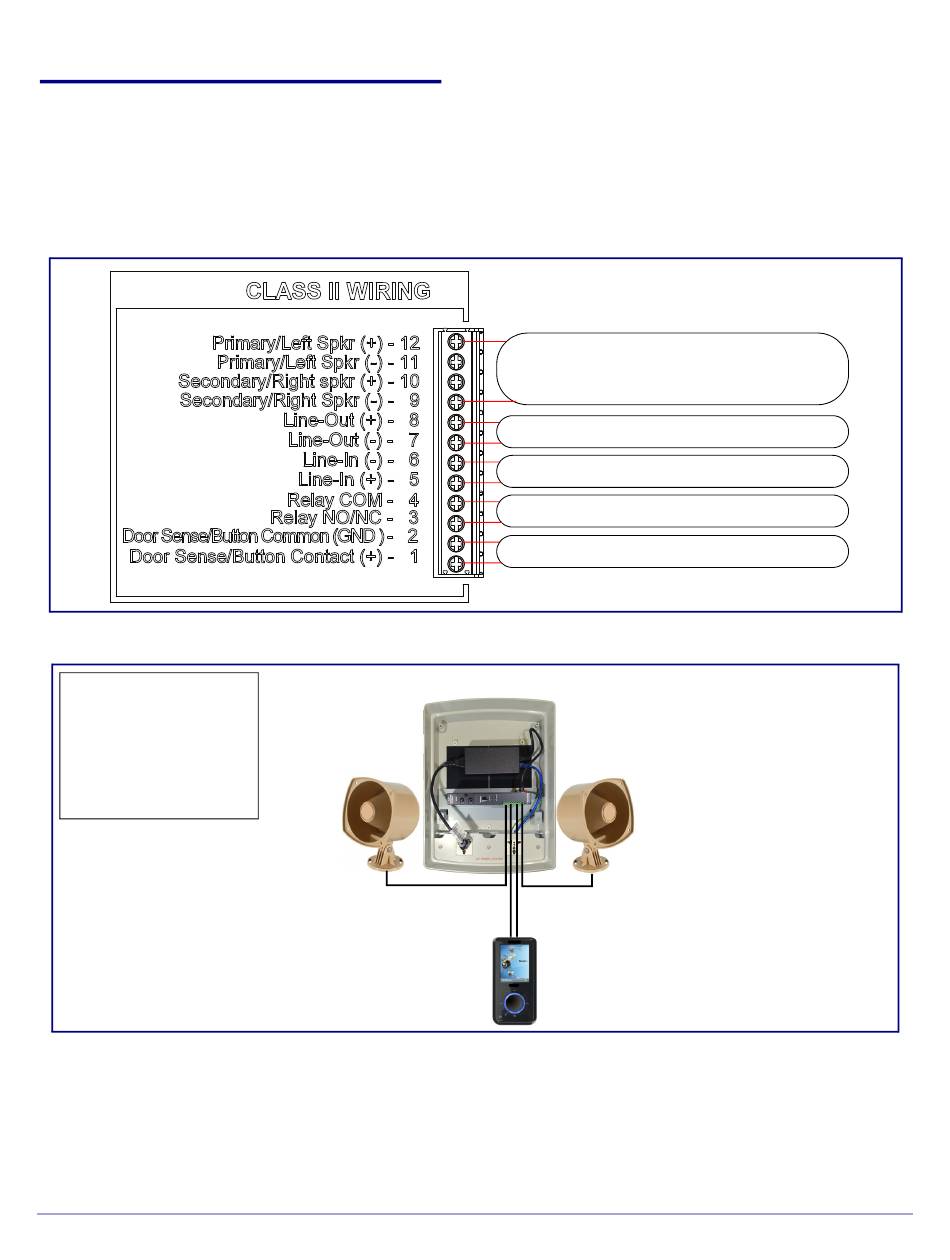

Figure 2-7. Singlewire InformaCast Loudspeaker Amplifier Connections
Figure 2-8. Line-In Connection
Loudspeaker Amplifier
931281B
Singlewire InformaCast Loudspeaker Amplifier (AC-Powered) Setup
Speaker Connections
(Figure 2-5)(Figure
Line-Out Connection (10K Ohm)
Line-In Connection
Relay Connection
Sensor Connection
Music Source
2-6)
(Figure 2-8)
(Figure 2-9)
(Figure 2-10)
