A.1.1 Mounting the Enclosure
To mount the enclosure:
1. Prepare holes for the screws.
2. Plug in the power adapter and use the Power (PWR) LED to verify that the power is on.
3. Plug the ethernet cable into the device. The Link/Activity (Link/Act.) LED verifies the network
4. For wall mounting, use the three #8 x 1-1/4-inch Truss Head Phillip screws to secure the
Wiring the 125V AC Plug
Operations Guide
connection.
speaker. See Figure A-1.

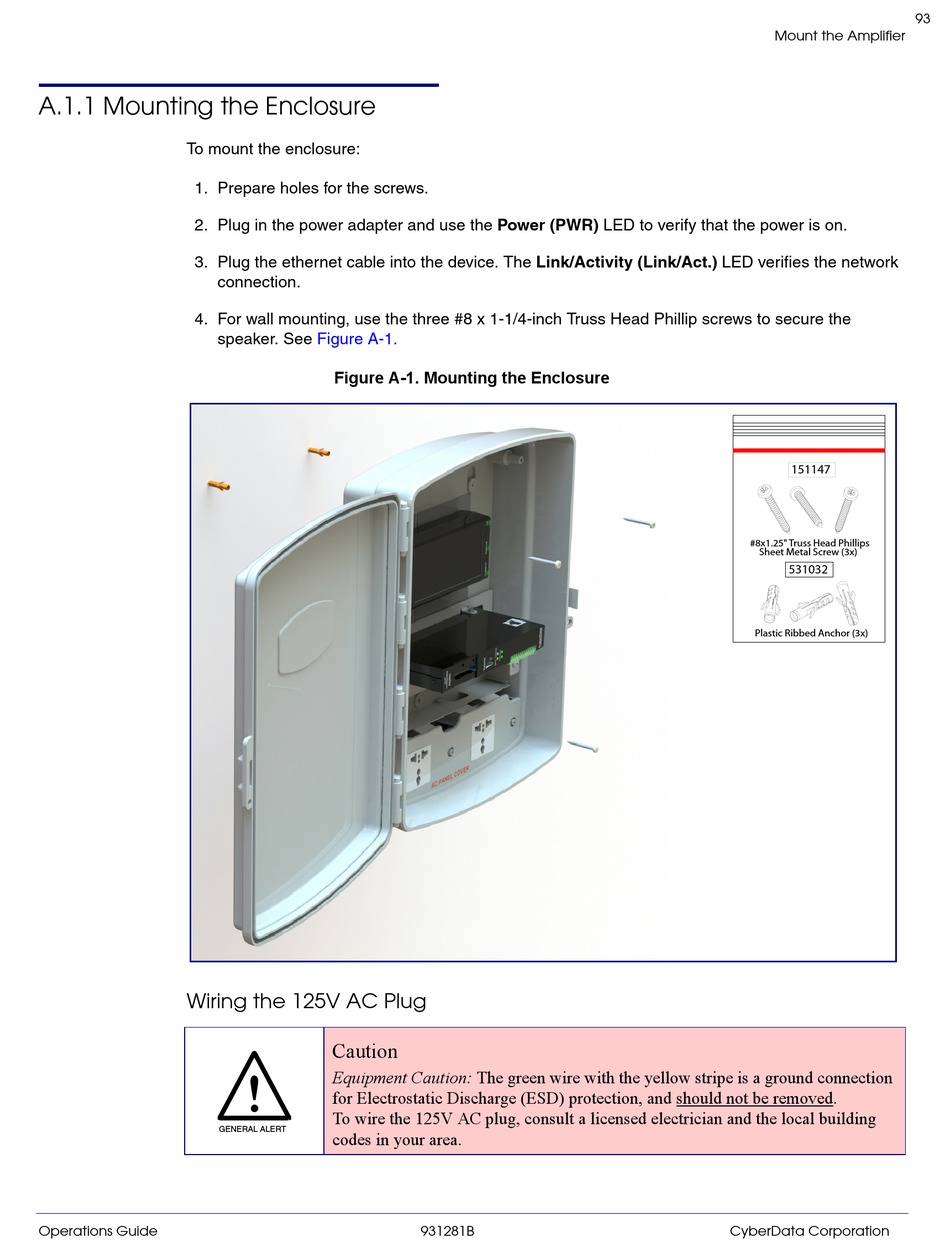

Figure A-1. Mounting the Enclosure
Caution
Equipment Caution: The green wire with the yellow stripe is a ground connection
for Electrostatic Discharge (ESD) protection, and should not be removed. 
To wire the 125V AC plug, consult a licensed electrician and the local building
GENERAL ALERT
codes in your area.
931281B
Mount the Amplifier
151147
#8x1.25" Truss Head Phillips
Sheet Metal Screw (3x)
531032
Plastic Ribbed Anchor (3x)
