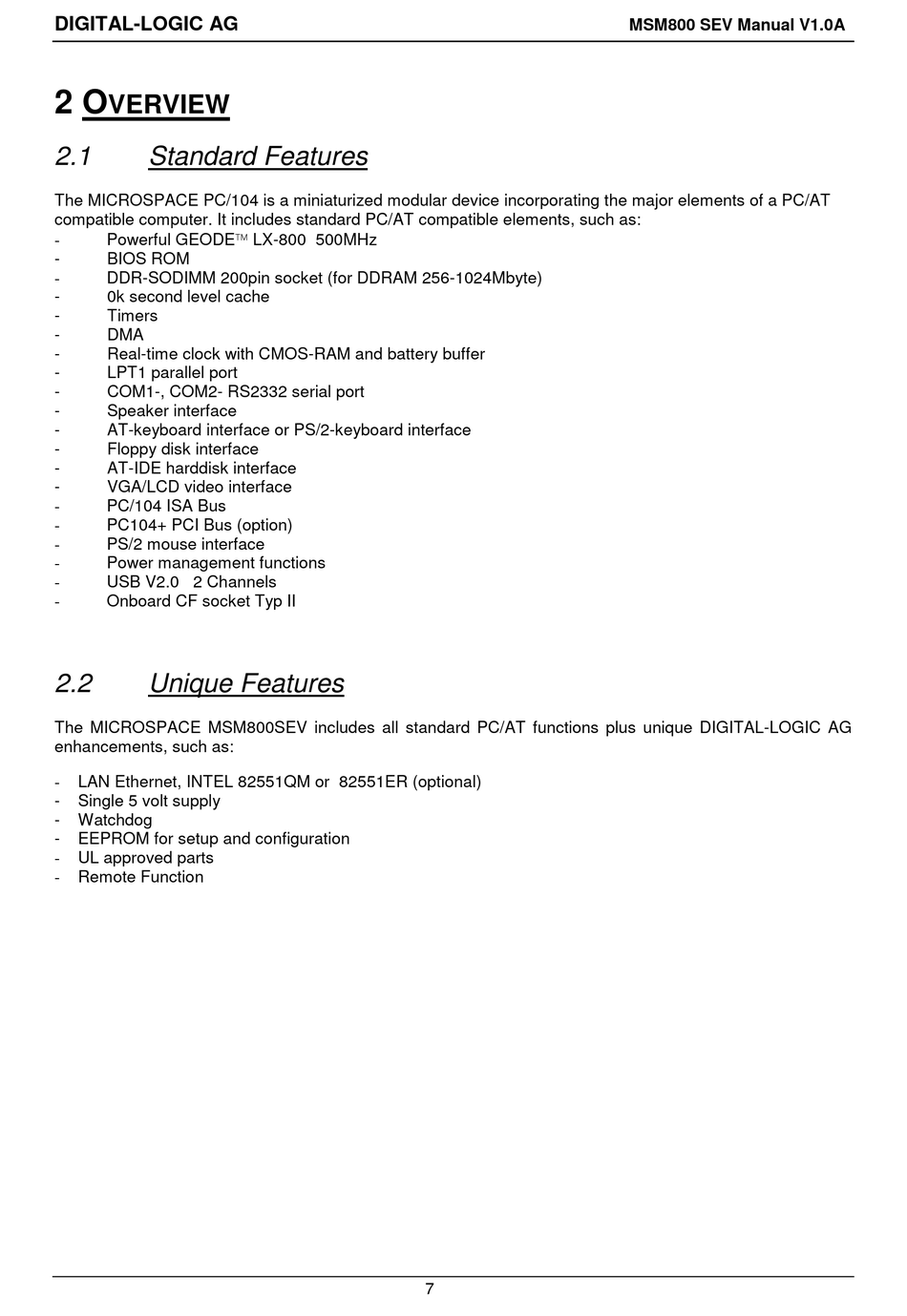

2 O
VERVIEW
2.1

Standard Features

The MICROSPACE PC/104 is a miniaturized modular device incorporating the major elements of a PC/AT
compatible computer. It includes standard PC/AT compatible elements, such as:
Powerful GEODE LX-800 500MHz
-
- BIOS ROM
DDR-SODIMM 200pin socket (for DDRAM 256-1024Mbyte)
-
- 0k second level cache
- Timers
- DMA
- Real-time clock with CMOS-RAM and battery buffer
- LPT1 parallel port
- COM1-, COM2- RS2332 serial port
- Speaker interface
- AT-keyboard interface or PS/2-keyboard interface
- Floppy disk interface
- AT-IDE harddisk interface
- VGA/LCD video interface
PC/104 ISA Bus
-
PC104+ PCI Bus (option)
-
PS/2 mouse interface
-
Power management functions
-
USB V2.0 2 Channels
-
Onboard CF socket Typ II
-
2.2

Unique Features

The MICROSPACE MSM800SEV includes all standard PC/AT functions plus unique DIGITAL-LOGIC AG
enhancements, such as:
LAN Ethernet, INTEL 82551QM or 82551ER (optional)
-
- Single 5 volt supply
- Watchdog
- EEPROM for setup and configuration
UL approved parts
-
Remote Function
-
