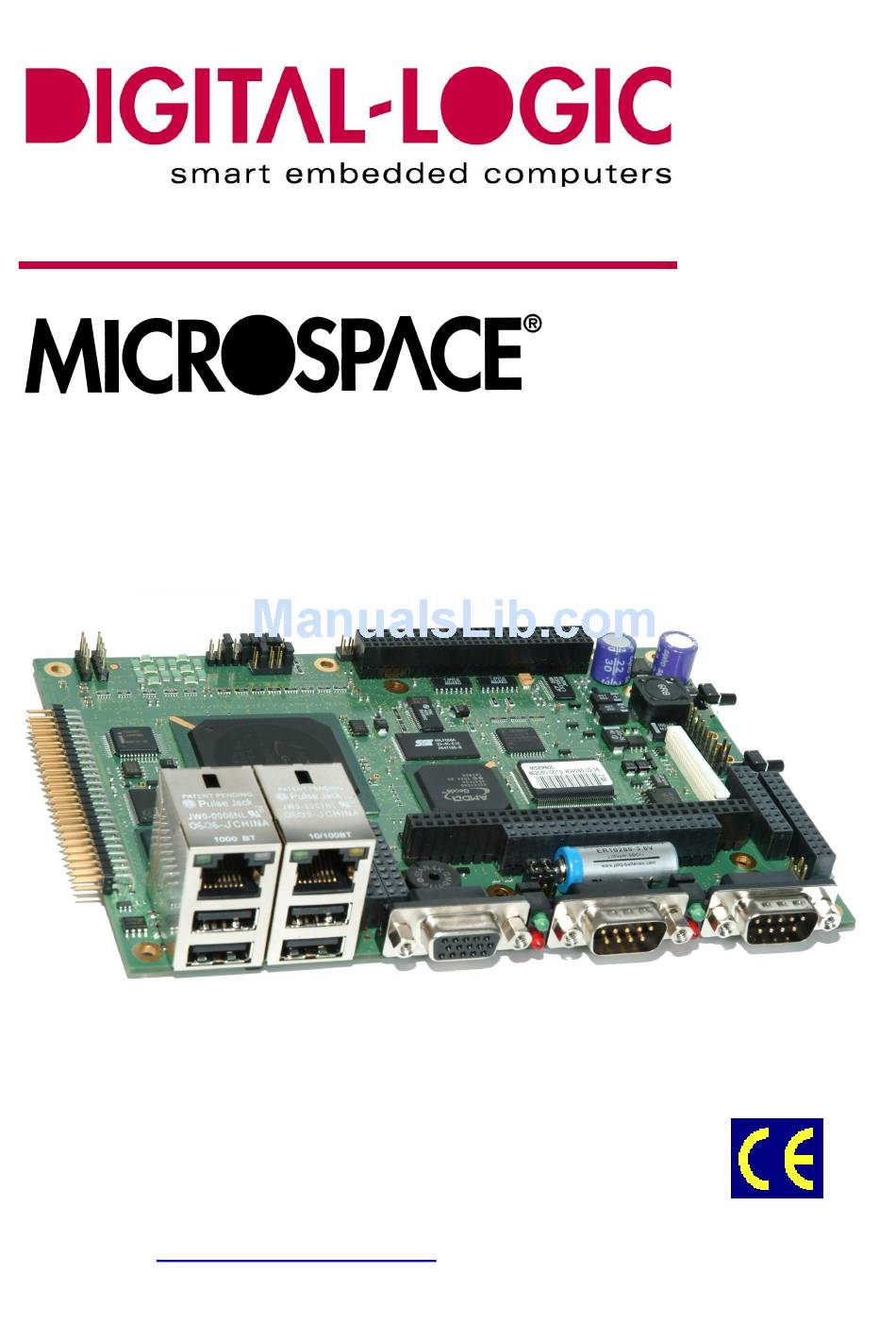

TECHNICAL USER'S MANUAL FOR:
EPIC FORM FACTOR
MSEP800/L
Nordstrasse 11/F
CH- 4542 Luterbach
Tel.:
++41 (0)32 681 58 00
Fax:
++41 (0)32 681 58 01
Email:
support@digitallogic.com
Homepage:
http://www.digitallogic.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MICROSPACE MSEP800 and is the answer not in the manual?

Questions and answers

Related Manuals for DIGITAL-LOGIC MICROSPACE MSEP800

Summary of Contents for DIGITAL-LOGIC MICROSPACE MSEP800

  • Page 1 TECHNICAL USER'S MANUAL FOR: EPIC FORM FACTOR MSEP800/L Nordstrasse 11/F CH- 4542 Luterbach Tel.: ++41 (0)32 681 58 00 Fax: ++41 (0)32 681 58 01 Email: support@digitallogic.com Homepage: http://www.digitallogic.com...

  • Page 2: Revision History

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G COPYRIGHT © © © © 2000 - 2007 BY DIGITAL-LOGIC AG No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, in any form or by any means, electronic, mechanical, optical, manual, or otherwise, without the prior written permis- sion of DIGITAL-LOGIC AG.

  • Page 3: Table Of Contents

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G Table of Contents 1 Preface..........................6 Trademarks........................6 Disclaimer......................... 6 Environmental Protection Statement................6 Who should use this Product..................6 How to use this Manual ....................6 Recycling Information...................... 6 Technical Support......................7 Limited Two Year Warranty ..................... 7 Explanation of Symbols....................
  • Page 4 DIGITAL-LOGIC AG MSEP800 Manual V1.0G BIOS ..........................39 4.5.1 BIOS History ..........................39 4.5.2 Download CORE-BIOS......................40 4.5.3 ROM-BIOS Sockets ........................41 4.5.4 BIOS CMOS Setup ........................41 CMOS RAM Map ......................42 EEPROM Saved CMOS Setup..................48 4.7.1 EEPROM Memory for Setup...................... 49 Memory &...
  • Page 5 DIGITAL-LOGIC AG MSEP800 Manual V1.0G 11.1 Windows Int15 Tool ....................98 11.1.1 Int15 Windows Software ......................98 11.2 Analog-Digital Converter.................... 99 11.3 Digital I/O ports ......................99 12 Special Peripherals, Configuration, Software ............100 12.1 The Special Function Interface for MICROSPACE Computers SFI....... 100 12.1.1...

  • Page 6: Preface

    DIGITAL-LOGIC AG reserves the right to revise this publication from time to time without obligation to notify any person of such revisions Environmental Protection Statement This product has been manufactured to satisfy environmental protection requirements where possible.

  • Page 7: Technical Support

    AG, Switzerland. This warranty is limited to the original purchaser of product and is not transferable. During the two year warranty period, DIGITAL-LOGIC AG will repair or replace, at its discretion, any defec- tive product or part at no additional charge, provided that the product is returned, shipping prepaid, to DIGITAL-LOGIC AG.

  • Page 8: Explanation Of Symbols

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G Explanation of Symbols CE Conformity This symbol indicates that the product described in this manual is in compliance with all ap- plied CE standards. Please refer also to the section “Applied Standards” in this manual.

  • Page 9: For Your Safety

    However, the life expectancy of your product can be drastically reduced by improper treatment during unpacking and installation. Therefore, in the interest of your own safety and of the correct op- eration of your new Digital-Logic product, you are requested to conform with the following guide- lines.

  • Page 10: Overview

    PS/2 mouse interface Power management functions APM and ACPI 2-6 channel USB V1.1 & V2.0 Unique Features The MICROSPACE MSEP800 includes all standard PC/AT functions plus unique DIGITAL-LOGIC AG en- hancements, such as: Single 10V to 30V supply Watchdog Power-fail detection...

  • Page 11: Standards

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G Standards The MICROSPACE product meet all standards for personal computer architecture. Standard Contact to the organisation Remarks PC/104BUS www.pc104.org www.usb.org www.pcisig.com www.smbus.org www.intel.com/labs/manage/wfm Wired for management baseline AC97 www.developer.intel.com/ial/scalablepla tforms/audio www.developer.intel.com/design/chipse ts/industry/lpc.htm ATA/ATAPI-6 www.t13.org ACPI www.acpi.info...

  • Page 12: Msep800 Blockdiagram

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G MSEP800 Blockdiagram...

  • Page 13: Msep800 And Msep800L Specifications

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G MSEP800 and MSEP800L Specifications CPU: Specification AMD GEODE LX800 Compatibility: 1. Level Cache: 32k data and 32k code 2. Level Cache: 128kByte Performance: 500MHz Clock 500MHz 125MHz Powermanagement Yes, APM2.1 and ACPI 1.2 FPU: Integrated...
  • Page 14 DIGITAL-LOGIC AG MSEP800 Manual V1.0G External Interface Specification Videointerfaces USB V1.1/2.0 MSEP800 4 USB channels MSEP800L 2 USB channels LPT1: IEEE1293 Printer COM1: RS232 COM2: RS232 COM3: MSEP800 TTL (RS232 from Ver.1.0) MSEP800L none COM4: MSEP800 TTL (RS232 from Ver.1.0)
  • Page 15 DIGITAL-LOGIC AG MSEP800 Manual V1.0G Physical Characteristics Specification PC/104plus Dimensions: Length: 165mm Depth: 115mm Height: 36mm Weight: 200gr Operating Environment Specification Relative Humidity: 5 - 90% non condensing IEC68-2-30 at -20° to +50°C operating Vibration operating: IEC68-2-6 10-50Hz, 0.075mm and 55-500Hz, 1.0G Vibration nonoperating: IEC68-2-6 10-50Hz, 0.15mm and 55-500Hz,...
  • Page 16 DIGITAL-LOGIC AG MSEP800 Manual V1.0G Operating Temperature Specification: MIL-810-501 MIL-810-502 Standard: temperature: 0° C to +60°C Extended temperature : -40° C to +70°C EMI / EMC Tests Specification If all signals are externaly filtered and assembled into a closed metalic case !

  • Page 17: Ordering Code Examples

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G Ordering Code Examples The MSEP800 system is combined of: Baseboard MSEP800 Memory: SODIMM200-DDRAM must be ordered separatly Article : Part.No. Description: EPIC Board with GEODE LX800. 500MHz, 128kB-L2-Cache, 4x COM (RS232), 4x USB, 2x LAN, 2x PS2, 24Bit Digital I/O,...

  • Page 18: Mechanical Dimensions

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G Mechanical Dimensions MSEP800 Version V0.3/1.0 Unit: mm (millimeter) Tolerance: +/- 0.1mm Date: 24.05.2006 Author: BRR...
  • Page 19 DIGITAL-LOGIC AG MSEP800 Manual V1.0G...

  • Page 20: Hole Pattern For The Msep800 Board

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G 2.7.1 Hole pattern for the MSEP800 board MSEP800 Version V0.3/1.0 Unit: mm (millimeter) Tolerance: +/- 0.1mm Date: 24.05.2006 Author: BRR...

  • Page 21: Side View

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G 2.7.2 Side View...

  • Page 22: Msep800 Incompatibilities To A Standard Pc/At

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G MSEP800 Incompatibilities to a standard PC/AT 2.8.1 DVI is not PNP! If you use the MSEP800 with the MSEP800-M the DVI port is not plug and play. That means you have to connect the DVI monitor before you turn on the system power.

  • Page 23: Isa-Incompatibilitiywith Isa-Pccard-Controller

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G 2.8.3 ISA-Incompatibilitiywith ISA-PCCARD-Controller The experience is, that ATA-Drives controlled in a ISA-PCMCIA Controller are not working. Solution: Using a PCCARD-Controller on the PCI-Bus 2.8.4 ISA-Incompatibilitiy with 16Bit I/O Transfer with FPGA-Decoder The experience is, that 16Bit I/O-transfers decoded with a FPGA are not allways working correct. Each case must be tested.

  • Page 24: Msep800 Related Application Notes

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G MSEP800 Related Application Notes Description High frequency Radiation (to meet EN55022) Application Notes are availble at http://www.digitallogic.com ->support, or on any Application CD from DIGITAL-LOGIC.

  • Page 25: High Frequency Radiation (To Meet En55022/En61000)

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G 2.10 High Frequency Radiation (to meet EN55022/EN61000) All peripheral interfaces are filtered to meet the EMI/EMC standards EN55022.

  • Page 26: Thermoscan

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G 2.11 Thermoscan Product: Part.Nr. Serial number: Version: MSEP800 SODIMM DDR 1GB Software Windows XP SP2 running desktop t [min] [MHz]...

  • Page 27: Rtc Battery-Lifetime

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G 2.12 RTC Battery-Lifetime Battery specs: Lowest temp. Nominal temp. Highest temp. -40° C +20° C +85° C Manufacturer: Type: ER10280 Capacity vers. Temp: 10uA 360mAh 325mAh 220mAh Voltage vers. Temp. 10uA 3.6V 3.6V Ca. 3.6V Nominal values: 3.6V / 450mAh @ 0.5mA / -55°...

  • Page 28: Bus Signals

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G IGNALS PC104 Bus Please note, that the ISA-Bus may have some minor incompatibilities, see chapter 2.10. AEN, output Address Enable is used to degate the microprocessor and other devices from the I/O channel to allow DMA transfers to take place.
  • Page 29 DIGITAL-LOGIC AG MSEP800 Manual V1.0G IRQ[ 3 - 7, 9 - 12, 14, 15], input These signals are used to tell the microprocessor that an I/O device needs attention. An interrupt request is generated when an IRQ line is raised from low to high. The line must be held high until the microprocessor acknowledges the interrupt request.
  • Page 30 DIGITAL-LOGIC AG MSEP800 Manual V1.0G SD[O..15], input/output These signals provide bus bits 0 through 15 for the microprocessor, memory, and I/0 devices. DO is the least-significant Bit and D15 is the most significant Bit. All 8-Bit devices on the I/O channel should use DO through D7 for communications to the microprocessor.

  • Page 31: Addressing Pci Devices

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G Addressing PCI Devices : DEVICE IDSEL PIRQ #REG #GNT Remarks internal Chipset PCI devices and resources AD11 CS5536 AD25 A / B / C / D external PCI slots PC/104+ Slot 1 AD26 C / D / A / B...

  • Page 32: Expansion Bus Max. Supply Currents

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G 3.3.1 Expansion Bus max. supply currents The bus different expansions may drive the following supply currents : At the 5Volt the total max.system current is rated at 6 Amp. At the 3.3Volt the total max.system current is rated at 6 Amp.

  • Page 33: Detailed System Description

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G ETAILED YSTEM ESCRIPTION This system has a system configuration based on the ISA and PCI architecture. Read carefully all informa- tion since this product is a very new computertechnology. Power Supply Requirements This product includes allready a widerange powersupply. So the supply voltage may be in the range of 8V up to 30V DC.

  • Page 34: Interface

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G Interface 4.3.1 Keyboard AT Compatible and PS/2 Mouse ONLY AVAILABLE WITH OPTION 804012 Attention: For the mouse there is a Y-Cable needed ! Signal Signal Pin 1 = KB_Data Pin 2 = MS_Data Pin 3...

  • Page 35: Serial Ports Com1-Com2

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G 4.3.3 Serial Ports COM1-COM2 The serial channels are fully compatible with 16C550 UARTS. COM1 is the primary serial port, and is sup- ported by the board's ROM-BIOS as the PC-DOS 'COM1' device. The secondary serial port is COM2; it is supported as the 'COM2' device.

  • Page 36: Floppy Disk Interface

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G 4.3.5 Floppy Disk Interface The onboard floppy disk controller and ROM-BIOS support one or two floppy disk drives in any of the stan- dard PC-DOS and MS-DOS formats shown in the table . Supported Floppy Formats...

  • Page 37: Controllers

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G Controllers 4.4.1 Interrupt Controllers An 8259A compatible interrupt controller, within the chipset, provides seven prioritized interrupt levels. Of these, several are normally associated with the board's onboard device interfaces and controllers, and sev- eral are available on the AT expansion bus.

  • Page 38: Rtc (Real Time Clock)

    RAM, compatible with that in standard ATs. System configuration data is normally stored in the clock chip's CMOS RAM in a manner consistent with the convention used in other AT compatible computers. The battery-backed clock can be set by using the DIGITAL-LOGIC AG SETUP at boot-time. 4.4.4 Watchdog The watchdog timer detects a system crash and performs a hardware reset.

  • Page 39: Bios

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G BIOS 4.5.1 BIOS History Version: Date: Status: Modifications: 1.05 03.2006 Final 1.06 05.2006 ISA IRQ reservation 1.07 05.2006 AC97 detection 1.08 05.2006 ISA IRQ table corrected 1.09b 09.2006 USB fix The bios V1.09b is only for the following board version: - MSEP800: V0.1, V0.2, V0.3 and V1.0...

  • Page 40: Download Core-Bios

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G 4.5.2 Download CORE-BIOS Before downloading a BIOS, please check as follows: Make a bootable diskette including the following files: Flashrom.com core BIOS xxxxxxxx.yyy IMPORTANT: Do not use boot disks created in a Windows operating system. If you do not have a MSDOS 6.22 disk avail- able, you can download a boot disk from www.bootdisk.com...

  • Page 41: Rom-Bios Sockets

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G 4.5.3 ROM-BIOS Sockets An EPROM socket with 8 Bit wide data access normally contains the board's AT compatible ROM-BIOS. The socket takes a E82802AC8 EPROM (or equivalent) device. The board's wait-state control logic automatically inserts four memory wait states in all CPU accesses to this socket. The ROM-BIOS sockets occupies the memory area from C0000H through FFFFFh;...

  • Page 42: Cmos Ram Map

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G CMOS RAM Map Systems based on the industry-standard specification include a battery backed Real Time Clock chip. This clock contains at least 64 bytes of non-volatile RAM. The system BIOS uses this area to store in- formation including system configuration and initialization parameters, system diagnostics, and the time and date.
  • Page 43 DIGITAL-LOGIC AG MSEP800 Manual V1.0G Location Description Time of day (seconds) specified in BCD Alarm (seconds) specified in BCD Time of Day (minutes) specified in BCD Alarm (minutes) specified in BCD Time of Day (hours) specified in BCD Alarm (hours) specified in BCD...
  • Page 44 DIGITAL-LOGIC AG MSEP800 Manual V1.0G CMOS Map Continued... Location Description CMOS Location for Bad CMOS and Checksum Flags bit 7 = Flag for CMOS Lost Power Power OK Lost Power bit 6 = Flag for CMOS checksum bad Checksum is valid...
  • Page 45 DIGITAL-LOGIC AG MSEP800 Manual V1.0G CMOS Map Continued... Location Description Equipment bits 7-6 = Number of Diskette Drives One diskette drive Two diskette drives 10, 11 = Reserved bits 5-4 = Primary Display Type Adapter with option ROM CGA in 40 column mode...
  • Page 46 DIGITAL-LOGIC AG MSEP800 Manual V1.0G CMOS Map Continued... Location Description Reserved EMS Memory Size Low Byte EMS Memory Size High Byte 1Fh - 24h Custom Drive Table 0 These 6 bytes (48 bits) contain the following data: Cylinders Landing Zone...
  • Page 47 DIGITAL-LOGIC AG MSEP800 Manual V1.0G CMOS Map Continued... Location Description Byte 3 bits 7-6 = Reserved bits 5-0 = Upper 6 Bits of Write Precompensation Byte 4 bits 7-0 = Number of Heads Byte 5 bits 7-0 = Sectors Per Track...

  • Page 48: Eeprom Saved Cmos Setup

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G EEPROM Saved CMOS Setup The EEPROM has different functions, as listed below: • Backup of the CMOS-Setup values. • Storing system informations like: version, production date, customisation of the board, CPU type. • Storing user/application values.

  • Page 49: Eeprom Memory For Setup

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G 4.7.1 EEPROM Memory for Setup The EEPROM is used for setup and configuration data, stored as an alternative to the CMOS-RTC. Option- ally, the EEPROM setup driver may update the CMOS RTC, if the battery is running down and the checksum error would appear and stop the system.

  • Page 50: Memory & I/O Map

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G Memory & I/O Map 4.8.1 System Memory Map The X86 CPU used as central processing unit on the MICROSPACE has a memory address space which is defined by 32 address bits. Therefore, it can address 1 GByte of memory. The memory address MAP is as...
  • Page 51 DIGITAL-LOGIC AG MSEP800 Manual V1.0G I/O Addr. Function Size Comment 000h Slave DMA Address - Channel 0 8-bit 16-bit values in two transfers. 001h Slave DMA Counter - Channel 0 8-bit 16-bit values in two transfers. 002h Slave DMA Address - Channel 1 8-bit 16-bit values in two transfers.
  • Page 52 DIGITAL-LOGIC AG MSEP800 Manual V1.0G I/O Addr. Function Size Comment Upper addr bits [23:16]. Write LPC and DMA. 087h DMA Channel 0 Low Page 8-bit Read only DMA. 088h No Specific Usage 8-bit Write LPC and DMA. Read only DMA.
  • Page 53 DIGITAL-LOGIC AG MSEP800 Manual V1.0G I/O Addr. Function Size Comment MSR bit enables/disables into I/O 2EFh space.(UART1 MSR 51400014h[18:16], UART2 MSR 2E8h-2EFh UART/IR - COM4 8-bit 51400014h[22:20]). Defaults to LPC. 2F0h-2F7h No Specific Usage MSR bit enables/disables into I/O 2FFh space.(UART1 MSR...
  • Page 54 DIGITAL-LOGIC AG MSEP800 Manual V1.0G I/O Addr. Function Size Comment Upper addr bits [31:24]. Write LPC and DMA. 48Fh DMA Channel 4 High Page 8-bit Read only DMA. 490h-4CFh No Specific Usage 4D0h PIC Level/Edge 8-bit IRQ0-IRQ 7. 4D1h PIC Level/Edge 8-bit IRQ8-IRQ15.

  • Page 55: Vga, Lcd

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G VGA, LCD 4.9.1 VGA / LCD Controller of the GEODE LX800 • Highly integrated Flat Panel and CRT GUI Accelerator & Multimedia Engine, Palette/DAC, Clock Synthe- sizer, and integrated frame buffer • HiQColor Technology implemented with TMED (Temporal Modulated Energy Distribution) •...

  • Page 56: Lvds-Display

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G 4.10 LVDS-Display There a different LCD-Panels available with 6bit-LVDS interface, they can adapted directly to the LVDS- Interface of the GEODE videocontroller. The LVDS interface is composed with: 6 Bit LVDS Datalines 2 Bit LVDS Clocklines Backligthenable (5V or DC Mainl) LCD-Supply (VDD) 5V or 3.3V Supply (Enable (3.3V digital))

  • Page 57: Boot Time

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G 4.11 Boot Time System Boot-Times Definitionen/Boot-Medium Quick Normal Boot* Boot MSEP005MHz with RTC-Backup battery time [s] Memory 1024MB shared 24MB for Video Measured device set first in the boot order configuration Boot from Floppy Drive (MS-DOS startup disk)

  • Page 58: Mini Pci Socket

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G 4.12 Mini PCI socket 4.12.1 Type IIIA Form Factor The Type IIIA form factor supports a card that is not placed at the outer edge of the host system. The form factor for Type IIIA differs from that of Type IIIB in that Type IIIA has a larger Y dimension.

  • Page 59: Type Iiib Form Factor

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G 4.12.2 Type IIIB Form Factor The Type IIIB form factor supports a card that is not placed at the outer edge of the host system. The form factor for Type IIIB differs from that of Type IIIA in that Type IIIB has a smaller Y dimension.

  • Page 60: Description And Location Of The Connectors

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G ESCRIPTION AND LOCATION OF THE CONNECTORS Description of the connectors 5.1.1 MSEP800 V1.0 Connector Texture Remarks DC-Main LVDS / Digital I/O 2x25 RM2.54mm LAN B 1Gb / USB 3 / 4 LAN A 100Mb USB 1 / 2...

  • Page 61: Msepxxxcon-I

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G 5.1.2 MSEPxxxCON-I Connector Texture Remarks COM 3 piggy connector RM2.54 COM 4 piggy connector RM2.54 COM 3 DSUB9 DSUB25 COM 4 RM2.54 PS/2 connector PS/2 DVO Interface to base board RM2.54 Sound / COM3/4 signals to base board RM2.54...

  • Page 62: Connector Plan

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G Connector Plan 5.2.1 MSEP800 V1.0...
  • Page 63 DIGITAL-LOGIC AG MSEP800 Manual V1.0G...

  • Page 64: Msepcon-I

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G 5.2.2 MSEPCON-I The MSEPCON-I can be use on the MSEP800 V0.3 and V1.0 5.2.3 MSEPCON-M MSEPCON-M for V0.3 and V1.0...

  • Page 65: Power Supply Connectors

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G Power Supply Connectors Power Input Channel (EMI filtered) Signal Signal Pin 1 = 8V – 30V DC-Input Power Input Pin 2 = earth, masse Systemearth Pin 3 = 0V DC-Input Ground X4 = SL-SMT 5.08/90F (Part number: 1837640000) www.weidmueller.com...

  • Page 66: Other Connectors On Board

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G Other Connectors on board Header 0.1” Printerport (EMI-Filtered) The printer connector provides an interface for 8 Bit centronics printers. Header onboard: D-SUB connector: Signal Pin 1 Pin 1 = Strobe Pin 3 Pin 2 = Data 0...
  • Page 67 DIGITAL-LOGIC AG MSEP800 Manual V1.0G DSUB9 Serial Port COM1 RS232 (EMI-Filtered) Header onboard: D-SUB connector:: Signal Pin 1 = DCD Pin 6 = DSR Pin 2 = RxD Pin 7 = RTS Pin 3 = TxD Pin 8 = CTS...
  • Page 68 DIGITAL-LOGIC AG MSEP800 Manual V1.0G VGA Monitor (EMI filtered) X1 Connector 15 pins HiDensity DSUB Signal Signal VGA red Pin 1 VGA green Pin 2 Green VGA blue Pin 3 Blue Horizontal Synch Pin 13 H-Synch Vertical Synch Pin 14...
  • Page 69 DIGITAL-LOGIC AG MSEP800 Manual V1.0G COM3/4 and AC97 Port (not filtered) Signal Name Function in/out AC-BitClk AC97 Sound AC-RST# “ AC-SDIN0 “ AC-SDIN1 “ AC-SDOUT “ AC-SYNC “ DCD3 COM3 TTL DSR3 COM3 TTL RXD3 COM3 TTL RTS3 COM3 TTL...
  • Page 70 DIGITAL-LOGIC AG MSEP800 Manual V1.0G J8 IDE Interface Signal Signal Pin 1 = Reset (active low) Pin 2 = GND Pin 3 = D7 Pin 4 = D8 Pin 5 = D6 Pin 6 = D9 Pin 7 = D5...
  • Page 71 DIGITAL-LOGIC AG MSEP800 Manual V1.0G LPC Bus Connector POD Port (only factory used) Signal Signal Pin 1 = +3.3V Pin 2 = LAD0 Pin 3 = LFRAME# Pin 4 = LAD1 Pin 5 = RST# Pin 6 = LAD2 Pin 7...
  • Page 72 DIGITAL-LOGIC AG MSEP800 Manual V1.0G External Reset Signal Signal Pin 1 = Reset Pin 2 = GND FAN 1* Signal Signal Pin 1 = GND Pin 2 = FAN VCC (dep. J13) Pin 3 = VCC 5V * not assembled (the connector and the electronic components are not assembled)
  • Page 73 DIGITAL-LOGIC AG MSEP800 Manual V1.0G IrDa Signal Signal Pin 1 = VCC 5V Pin 2 = IR TX Pin 3 = IR RX Pin 4 = GND BIOS settings: You have to enable the UART A of the GeodeLX in the bios setup: F1 ->...
  • Page 74 DIGITAL-LOGIC AG MSEP800 Manual V1.0G PC/104 BUS Interface Ground Ground IOCHCK Ground SBHE MEMCS16 RESET LA23 IOCS16 LA22 IRQ10 IRQ9 LA21 IRQ11 LA20 IRQ12 DRQ2 LA19 IRQ15 (-12V) LA18 IRQ14 LA17 DACK0 +12V MEMR DRQ0 IOCHRDY Ground NC MEMW DACK5...
  • Page 75 DIGITAL-LOGIC AG MSEP800 Manual V1.0G PC/104+ BUS Interface GND/5.0V KEY2 Reserved AD00 VI/O AD02 AD01 AD05 AD04 AD03 C/BE0* AD07 AD06 AD09 AD08 AD11 VI/O AD10 M66EN AD14 AD13 AD12 +3.3V C/BE1* AD15 +3.3V SERR* SB0* PERR* +3.3V SDONE STOP* +3.3V...

  • Page 76: Jumper Locations On The Board

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G UMPER LOCATIONS ON THE BOARD Jumper Locations on the Board The figure shows the location of all jumper blocks on the MSEP800 board. The numbers shown in this figure are silk screened on the board so that the pins can easily be located. This chapter refers to the individual pin for these jumpers.

  • Page 77: The Jumpers On Msep800 V1.0

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G The Jumpers on MSEP800 V1.0...
  • Page 78 DIGITAL-LOGIC AG MSEP800 Manual V1.0G...

  • Page 79: Led Criterions

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G CRITERIONS Color Function Green Power (PIC indicator) HDD1 (Primary Master) Green Green Activity Yellow Link Green Activity Yellow Link LED 6 LED 7 LED 5 LED 8 LED 2 LED 4 LED 1 LED 3...

  • Page 80: Cable Interface

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G ABLE INTERFACE The Harddisk Cable 44pin IDT Terminal for Dual Row (2.00 mm grid) and 1.00 mm flat cable. 44 pins = 40 pins signal and 4 pins power. Max. length for the IDE cable is 30 cm.

  • Page 81: The Printer Interface Cable

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G The Printer Interface Cable IDT terminal for dual row 0.1" (2.54mm grid) and 1.27 mm flat cable Parallelport Cable LPT1 ATTENTION: Maximum length of this cable is 6 meters. Prevent short-circuits. Never apply power to these signals, the MICROSPACE MSEP800 will be destroyed.

  • Page 82: Operating Systems Compatibility

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G PERATING YSTEMS OMPATIBILITY The CPU PENTIUM is fully compatible to other PC-standard CPUs. The Intel chipsets are also fully PC- compatible. No incompatibilities are known. Microsoft Windows This system is fully compatible with Windows 2000, Windows XP Professional Microsoft Windows CE 4.2 / 5.0...

  • Page 83: Driver Installation

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G 10 D RIVER NSTALLATION 10.1 Windows 2000 & XP On the MICROSPACE Application CD you will find all tools and drivers you will need to work with the card. If you are not sure about the topicality of the software, please visit our homepage at http://www.digitallogic.com...
  • Page 84 DIGITAL-LOGIC AG MSEP800 Manual V1.0G...
  • Page 85 DIGITAL-LOGIC AG MSEP800 Manual V1.0G...

  • Page 86: Audio / Multimedia

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G 10.1.2 Audio / Multimedia Enter the device manager and follow the description below: Location: \drivers\LX800\MSEP800\Sound\...
  • Page 87 DIGITAL-LOGIC AG MSEP800 Manual V1.0G...

  • Page 88: Vga

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G 10.1.3 Enter the device manager and follow the description below: Location: \drivers\LX800\MSEP800\VGA\...
  • Page 89 DIGITAL-LOGIC AG MSEP800 Manual V1.0G...

  • Page 90: Ethernet / Lan

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G 10.1.4 Ethernet / LAN Enter the device manager and follow the description below: 10/100MB LAN: Location: \drivers\LX800\MSEP800\network\intel\82559ER_82551ER\...
  • Page 91 DIGITAL-LOGIC AG MSEP800 Manual V1.0G 1GB LAN: Location: \drivers\LX800\MSEP800\network\intel\82559ER_82551ER\82541GI_82551QM\Autorun.exe...

  • Page 92: Int15 Emulator

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G 10.1.5 Int15 emulator Location: \drivers\LX800\MSEP800\INT15 How to: Execute the file Int15dl_Install31.exe After installation of this driver you can use the tools: WinInt15.exe (Int15 function test tool) and T855.exe (Temperatur sensor (SMBUS) monitor) chapter 11.1 10.1.6...

  • Page 93: Windows Xp 2 Nd Ide Bugfix

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G 10.1.7 Windows XP 2 IDE bugfix Location: \drivers\LX800\IDE\ Most PC-AT chipsets contain a dual IDE controller. The AMD Geode™ CS5536 and CS5535 companion devices contain only a single IDE controller, and use the same out-of-box Windows®...

  • Page 94: Com 3 / Com 4 Installation / Configuration

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G 10.1.8 COM 3 / COM 4 installation / configuration If the option MSE8xxCON-I is installed you have to configure the additional COM ports as follow. Bios settings: C. Motherboard Device Configuration → → → → C. LPC Card devices → → → → Reserve the ISA IRQ you desired for the COMs (J27 ->...
  • Page 95 DIGITAL-LOGIC AG MSEP800 Manual V1.0G 5) Select „... manually select...“ and “Next” 6) Select „Ports (COM & LPT)“ and „Next“ 7) Select from the standard port types the “Com- 8) Click “Next” munications Port” and click “Next” 10) Go to “Ressources” and click on “Set Configu- 9) Click “View or change resources for…”...
  • Page 96 DIGITAL-LOGIC AG MSEP800 Manual V1.0G 11) Select the “Basic configuration 008” and dou- 12) Select the jumpered I/O Configuration bleclick on “I/O Range” and “IRQ” consecutively 14) After changing the values, you should see the entered values in the ressource settings.
  • Page 97 DIGITAL-LOGIC AG MSEP800 Manual V1.0G 17) Get to the properties of the 3 COM port, 18) Correct the FIFO buffer and the COM Port select “Port Settings” and click on “Advanced” number (COM3 for the 3 and COM4 for the 4 20)Correct the Bps settings and press OK.

  • Page 98: Software

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G 11 S OFTWARE 11.1 Windows Int15 Tool Please find the tool and the driver under: x:\tools\int15dl on the product CD or in the download area of the support center. Note: Before you can use these tools, you have to install the Windows WDM driver first.

  • Page 99: Analog-Digital Converter

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G 11.2 Analog-Digital Converter Location: \drivers\LX800\MSEP800\ADCSMB\ How to: Execute the file ADCEP800.exe The access to Analog-Digital Converter on MSEP800 board is provided over SMBUS address 042h. This example of code shows, how to get access to ADC data.

  • Page 100: Special Peripherals, Configuration, Software

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G PECIAL ERIPHERALS ONFIGURATION OFTWARE 12.1 The Special Function Interface for MICROSPACE Computers SFI All functions are performed by starting the SW-interrupt 15hex with the following arguments: 12.1.1 INT 15h SFR Functions Function: WRITE TO EEPROM...
  • Page 101 DIGITAL-LOGIC AG MSEP800 Manual V1.0G Function: READ SERIAL NUMBER Number: Description: Reads the serialnumber from the board into the serial EEPROM Input values: DLAG Int15 function Function request Serial Number (Binary, not ASCI) Outputs values: Function: WRITE PRODUCTION DATE & RESET DLAG-COUNTERS...
  • Page 102 DIGITAL-LOGIC AG MSEP800 Manual V1.0G Function: READ INFO 2 FROM EEPROM Number: Description: Reads the information bytes out of the serial EEPROM Input values: DLAG Int15 function Function request Board Type BOARD TYPE ('M'=PC/104, 'E'=Euro, 'W'=MSWS, Output values: 'S'=Slot, 'C'=Custom, 'X'= smartCore or smartModule CPU Type bits 1…7 and board type bits 8…15 (CPU type:...

  • Page 103: Int15 Emulator Driver For Windows

    Access under Windows 98, ME , 2000, XP can be provided over "Int15dl"-WDM driver, under Windows-NT "Int15dl"-NT driver. For the moment this driver support all Digital-Logic boards with PIIX4 and ICH4 chipsets (eg. MSM855, MSEBX855, MSMP5SEV, MSMP3SEV, MSEP800…). Please find the driver under: \products\***\TOOLS\int15dl on the product CD or in the download area of the support center.
  • Page 104 "Regs.ah = 0xEC;", but on the board with ICH4 chipset, please use "Regs.ax = 0x78EC;". bool Open_Int15dl(void) - the first function, which must be called to create a link between "Digital-Logic INT15 functions emulator" driver and user software. It returns “true”, if device was successfully opened, otherwise - “false”.
  • Page 105 HKR, "Parameters", "tsaddr", 0x00010001, 0x9E - LM75 sensor address for ICH4 chipset: HKR, "Parameters", "chipID", 0x00010001, 0x5 HKR, "Parameters", "pmBase", 0x00010001, 0x1000 HKR, "Parameters", "smbBase", 0x00010001, 0x1880 HKR, "Parameters", "tsaddr", 0x00010001, 0x9C - ADM1023 sensor address For more information, please get in contact with the Digital-Logic support department.

  • Page 106: Additional Features (Com3-4/ Post/ Gpi/O/Digital I/O)

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G 12.2 Additional features (COM3-4/ POST/ GPI/O/Digital I/O) 12.2.1 Overview of the CPLD features A XC95144XL CPLD from Xilinx is used on board to implement the following features: • Two 7-segment LED‘s display the Power-On-Self-Test (POST) code at I/O address 80 hex •...
  • Page 107 DIGITAL-LOGIC AG MSEP800 Manual V1.0G 12.2.1.1 CPLD input / output electrical parameters Warning: The input / output pins on the connectors are connected directly to the CPLD without any buffer or ESD protection circuit. Therfore it is recomanded that the applied I/O voltages are within the electrical parameters of the chip.

  • Page 108: Two Digit 7-Segment Post Led

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G 12.2.2 Two digit 7-segment POST LED After powerup during booting of the BIOS the Power-On-Self-Test (POST) code is displayed on the two digit 7-segment LED’s. Therefore the CPLD decodes this 8-bit hexadecimal code to the 7-segment common anode code at I/O address 80 hex.

  • Page 109: General Purpose Input / Output Ports

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G 12.2.3 General Purpose Input / Output Ports A connector with three eight bit General Purpose Input / Output ports (GPIO_A, GPIO_B, GPIO_C) with 5 Volt tolerant I/O pins accept 5 V and 3.3 V input signals, the output capability is 3.3 Volt. A General Purpose register controls the direction of each I/O port individually.
  • Page 110 DIGITAL-LOGIC AG MSEP800 Manual V1.0G General Purpose Input / Output Port A (GPIO_A) I/O address 0160h Type Read/Write Default value 0Ah / output tristated The I/O address is 160 hex, to enable the output set bit 1 of the GP_DIR[0] register to 1.

  • Page 111: 24Bit Digital I/O Interface

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G 12.2.4 24Bit Digital I/O Interface Programming MSEP800 interface under Windows: Please install the driver as described in chapter 10.1.6 Programming of the Digital IO Interface is supported by resident driver and program examples of IO operations, based on DeviceIoControl function.

  • Page 112: Serial Interface Control Register

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G 12.2.5 Serial Interface Control Register A serial interface register controls the I/O address and interrupt number of two 16C550 compatible Universal Asynchronous Receiver and Transmitter (UART). This configurations is overdriven with the eight jumpers on connector J27.
  • Page 113 DIGITAL-LOGIC AG MSEP800 Manual V1.0G J27 Jumper to overdrive COM_CTRL register If no jumper is pluged on J27 the content of COM_CTRL register is active (as shown on the previous page). Therefore it is not possible to use the following configuration: COM_CTRL[7:6] = 11 =>...

  • Page 114: Update The Cpld Software

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G 12.2.6 Update the CPLD software The CPLD is onboard programmable either with the onboard programming circuit or an external JTAG programmer connected to J18. CPLD software version history Date HW compatible versions Changements V0-1 08.08.2004...

  • Page 115: Thermal Specifications

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G HERMAL PECIFICATIONS 13.1 Thermal Analysis for Case Integration Since the integrated heatsink is unidirectional, the airflow must be exactly in the direction of the heatrails. If possible, mount the board vertically, so that the heatrails show up/down. The self produced airflow is around 3m/sec in this case.

  • Page 116: Diagnostics

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G 14 D IAGNOSTICS 14.1 POST CODES This is the GeodeRom port 80 flow for a cold boot on a gx system. There are some additional codes on a scx2xx system. This shows what functions generate which port 80 code. The first column of codes are generated by xpresrom.asm the second column is the function which is run after the post code and any...
  • Page 117 DIGITAL-LOGIC AG MSEP800 Manual V1.0G Checkpoint Function Name Intermediate Function Description Codes memRAMoptimize SDRAM optimization for CPU speed 013h cacheInit Autosize and initialize Cache Cache failed to size to 16 K113 (i.e., 013h failed) northBridgelnit Load Geode North Bridge PCI register space...

  • Page 118: Core Bios Setup

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G 15 C BIOS S ETUP 15.1 Setup Menu Screens and Navigation The XpressROMTM Setup Menu contains a number of features and options. It is recommend to evaluate the menu options prior to shipment of your platform to ensure the removal of options that could have a negative consequence if users change the items.
  • Page 119 DIGITAL-LOGIC AG MSEP800 Manual V1.0G Mother Board Device Configuration The Mother Board Device configuration contains the only sub menu system of the setup screens. The choices are Drive Configuration: Allows the configuration of the IDE drive I/O Configuration: Allows for the configuration of the serial ports on the CS5535/CS5536...
  • Page 120 DIGITAL-LOGIC AG MSEP800 Manual V1.0G PRE2ACT: Pre to ACT period (tRP). Minimum number of SDROM clocks between PRE and ACT commands ACT2CMD: Delay time from ACT to Read/Write (tRCD). Minimum number of SDRAM clocks between ACT and Read/Write Commands ACT2ACT: ACT(0) to ACT(1) Period (tRRD). Minimum number of SDRAM clocks between ACT and ACT commands to two different component banks within the same module bank.

  • Page 121: Power Management

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G Power Management The Power Management menu is for configuration of the BIOS’s power management with relation to the OS on the platform. BIOS PM at Boot: The BIOS PM allows setting of legacy power management mode prior to booting the system APM Available: Allows the system to configure if the APM interface is available.

  • Page 122: Motherboard

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G Boot Order The Boot Order menu allows the alteration of the devices checked for a bootable image. There are six slots for selecting the order. Use the arrow keys to select the order number and then press enter to cycle through the options.
  • Page 123 DIGITAL-LOGIC AG MSEP800 Manual V1.0G Flash Configuration: Allows the use of a flash device over the IDE. The options are Enable or Dis- able Chip Select 0- 3 Size: Allows the configuration of the flash chips to be disabled, 8K/16B, 16K/32B,...
  • Page 124 DIGITAL-LOGIC AG MSEP800 Manual V1.0G LPC Card Configuration The LPC card configuration enables the configuration of each serial port and the parallel port on the LPC. To change the serial port configuration use the arrow keys ( ) to select the serial port and hit <enter> to change the state the choices are Disabled, 0x3F8 IRQ 4, 0x2F8 IRQ 3, 0x3E8 IRQ 4, 0x2E8 IRQ3 Parallel Port: Allows the selection of the parallel port address.
  • Page 125 DIGITAL-LOGIC AG MSEP800 Manual V1.0G HSYNC Polarity: Selects the active polarity of the HSYNC signal to the panel. The options are Active Low or Active High VSYNC Polarity: Selects the active polarity of the VSYNC signal to the panel. The options are Active Low or Active High LP Active Period: Selects the active period of the LDE/MOD (LP) signal.

  • Page 126: Pci Configuration

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G PCI Configuration The following menu system allows the configuration of the PCI interrupts. Select the PCI interrupt desired to change and hit <enter> to cycle through the IRQs. For the USB 2.0 the options are as follows:...

  • Page 127: Assemblings View

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G 16 A SSEMBLINGS VIEW 16.1 MSEP800 V1.0...
  • Page 128 DIGITAL-LOGIC AG MSEP800 Manual V1.0G...

  • Page 129: Connectors And Jumpers Of Older Board Versions

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G 17 C ONNECTORS AND JUMPERS OF OLDER BOARD VERSIONS 17.1 The jumpers on MSEP800 V0.3 The Jumpers Jumper Texture Open / 1-2 Closed / 2-3 Compact Flash Master / Slave Open = Slave Closed = Master...
  • Page 130 DIGITAL-LOGIC AG MSEP800 Manual V1.0G...
  • Page 131 DIGITAL-LOGIC AG MSEP800 Manual V1.0G...

  • Page 132: Description Of The Connectors Of Msep800 V0.3

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G 17.2 Description of the connectors of MSEP800 V0.3 17.2.1 MSEP800 V0.3 Connector Texture Remarks DC-Main LVDS / Digital I/O 2x25 RM2.54mm LAN B 1Gb / USB 3 / 4 LAN A 100Mb USB 1 / 2...

  • Page 133: Msepxxxcon-I

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G 17.2.2 MSEPxxxCON-I Connector Texture Remarks COM 3 piggy connector RM2.54 COM 4 piggy connector RM2.54 COM 3 DSUB9 DSUB25 COM 4 RM2.54 PS/2 connector PS/2 DVO Interface to base board RM2.54 Sound / COM3/4 signals to base board RM2.54...
  • Page 134 DIGITAL-LOGIC AG MSEP800 Manual V1.0G...
  • Page 135 DIGITAL-LOGIC AG MSEP800 Manual V1.0G...

  • Page 136: Assembling View Of Msep800 V0.3

    DIGITAL-LOGIC AG MSEP800 Manual V1.0G 17.3 Assembling View of MSEP800 V0.3...
  • Page 137 DIGITAL-LOGIC AG MSEP800 Manual V1.0G...
