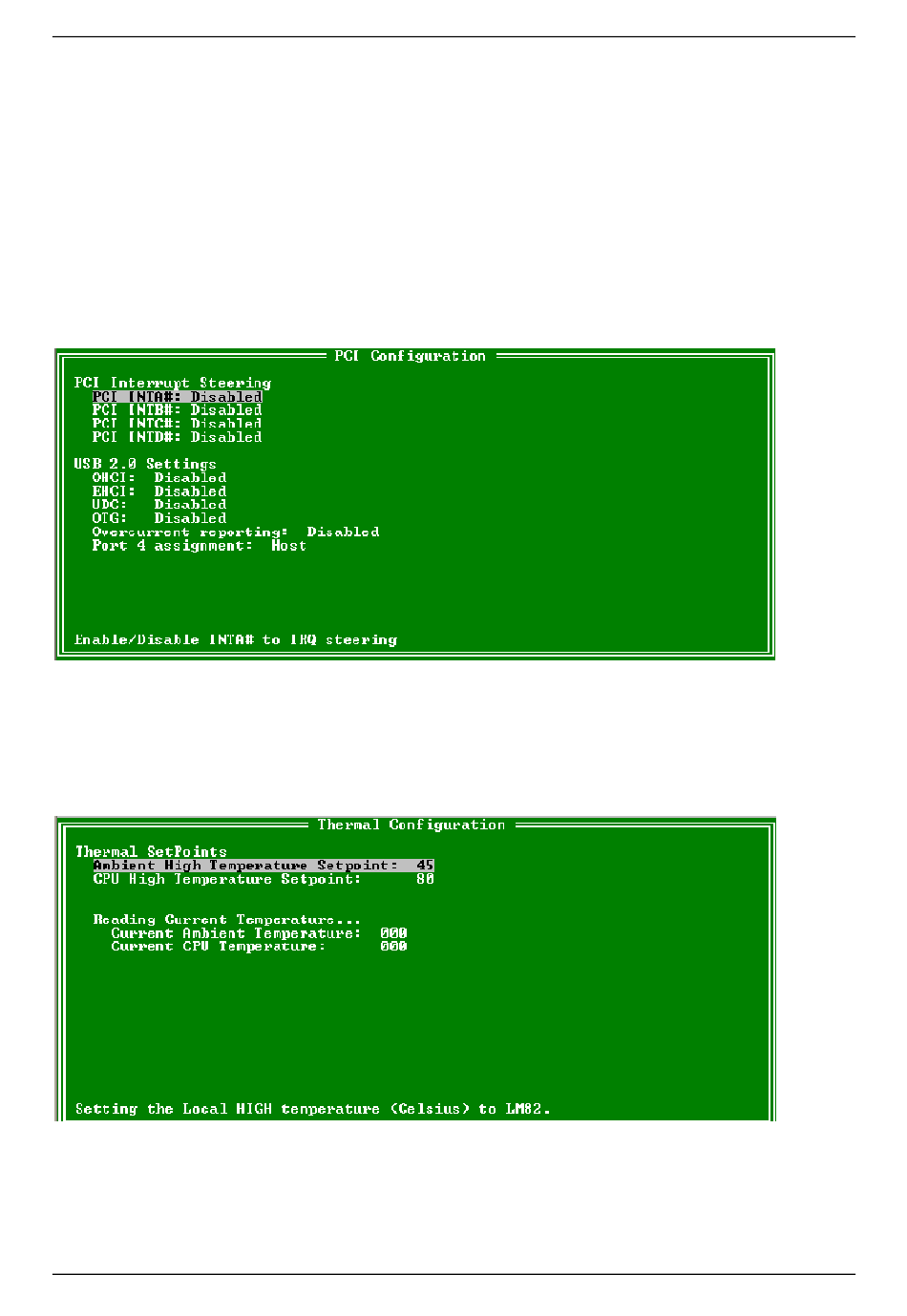

PCI Configuration
The following menu system allows the configuration of the PCI interrupts. Select the PCI interrupt desired to
change and hit <enter> to cycle through the IRQs.
For the USB 2.0 the options are as follows:
OHCI: Enable or Disable OHCI Controller
EHCI: Enable or Disable EHCI Controller
UDC: USB Device Controller Enable or Disable
OTG: On-The-GO Enable or Disable
Overcurent Reporting: Enable or Disable over current reporting
Port 4 Assignment: Determines the functionality of the USB port 4. The options are Not Used, Device and
Host
Thermal Configuration
The Thermal Configuration screen enables the setting of the ambient and CPU high temperature points as
well as reads the current state of the ambient and CPU temperature. The values are in Celsius. To change
the temperature set point, use the Arrow keys (↑↓) to select the option and press <enter> . Once selected
type in the new Celsius value and press <enter> again.
