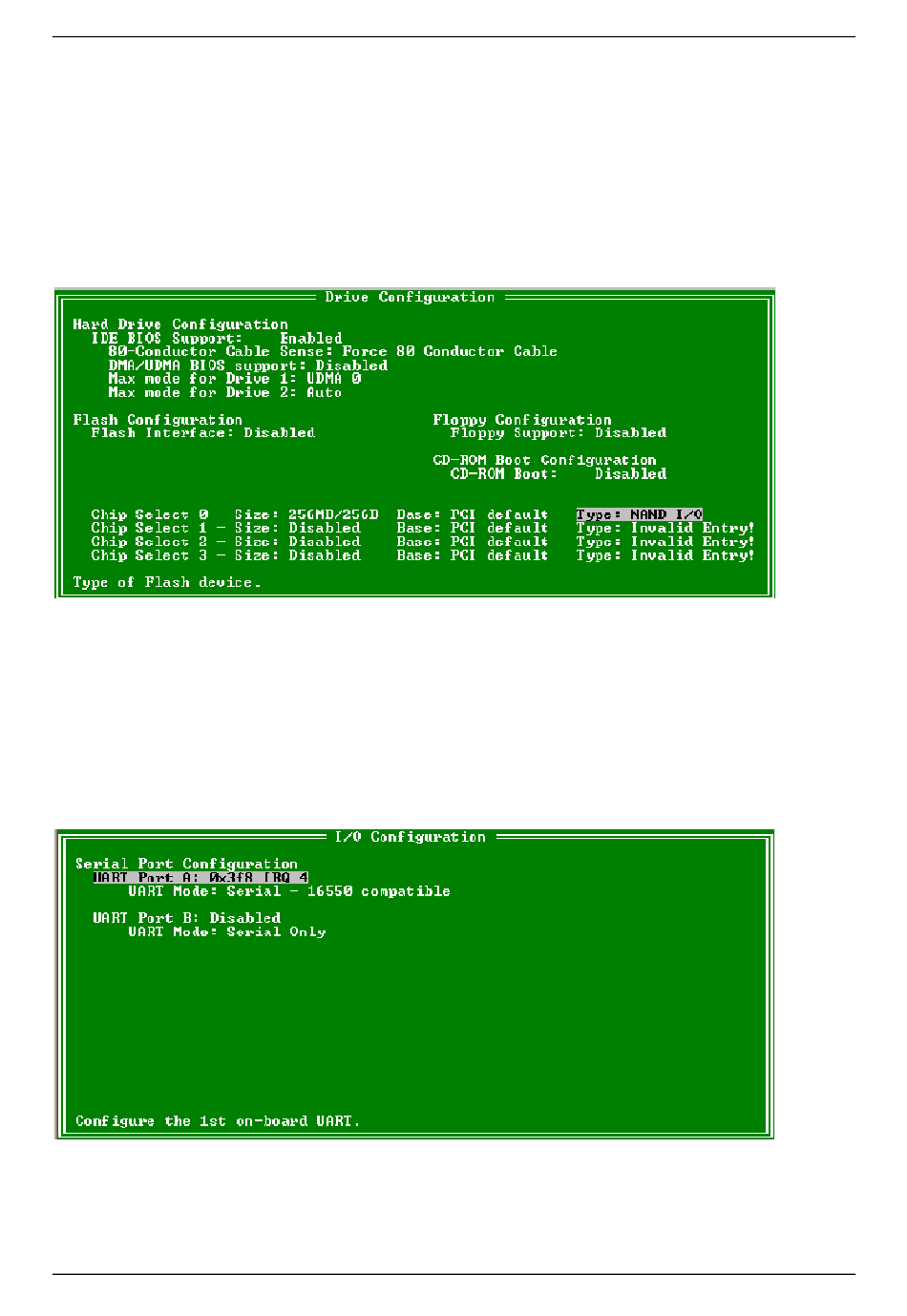

Flash Configuration: Allows the use of a flash device over the IDE. The options are Enable or Dis-
able
Chip Select 0- 3
I/O Configuration
The I/O configuration menu enables the configuration of the serial ports on the CS5535/CS5536 parts. To
select the option use the arrow keys and press enter.
UART Port A or B: Allows the selection for the address of the UART port. The options are Disabled, 0x3F8
IRQ 4, 0x2F8 IRQ 3, 0x3E8 IRQ 4, 0x2E8 IRQ3
UART Mode: Allows the selection for the mode of operation of the serial port. The options are CIR, Serial –
16550 Compatible, or Serial Extended
Size: Allows the configuration of the flash chips to be disabled, 8K/16B, 16K/32B,
128K/64B, 512K/128B, 4M/256B, 8M/256B, or 256M/256B where it is
Memory size / I/O size
Base: Allows the configuration of the base address. The options are PCI defaults,
D2000, D4000, D6000
Type: Allows the selection of the type of flash memory. The options are Nor Mem, or
NAND I/O
