J2 VGA monitor (CRT-Signals)
J2 Header
10 Pin -M
Pin 2
Pin 4
Pin 6
Pin 8
Pin 9
Pin 1
Pin 3
Pin 5
Pin 7
Pin 10

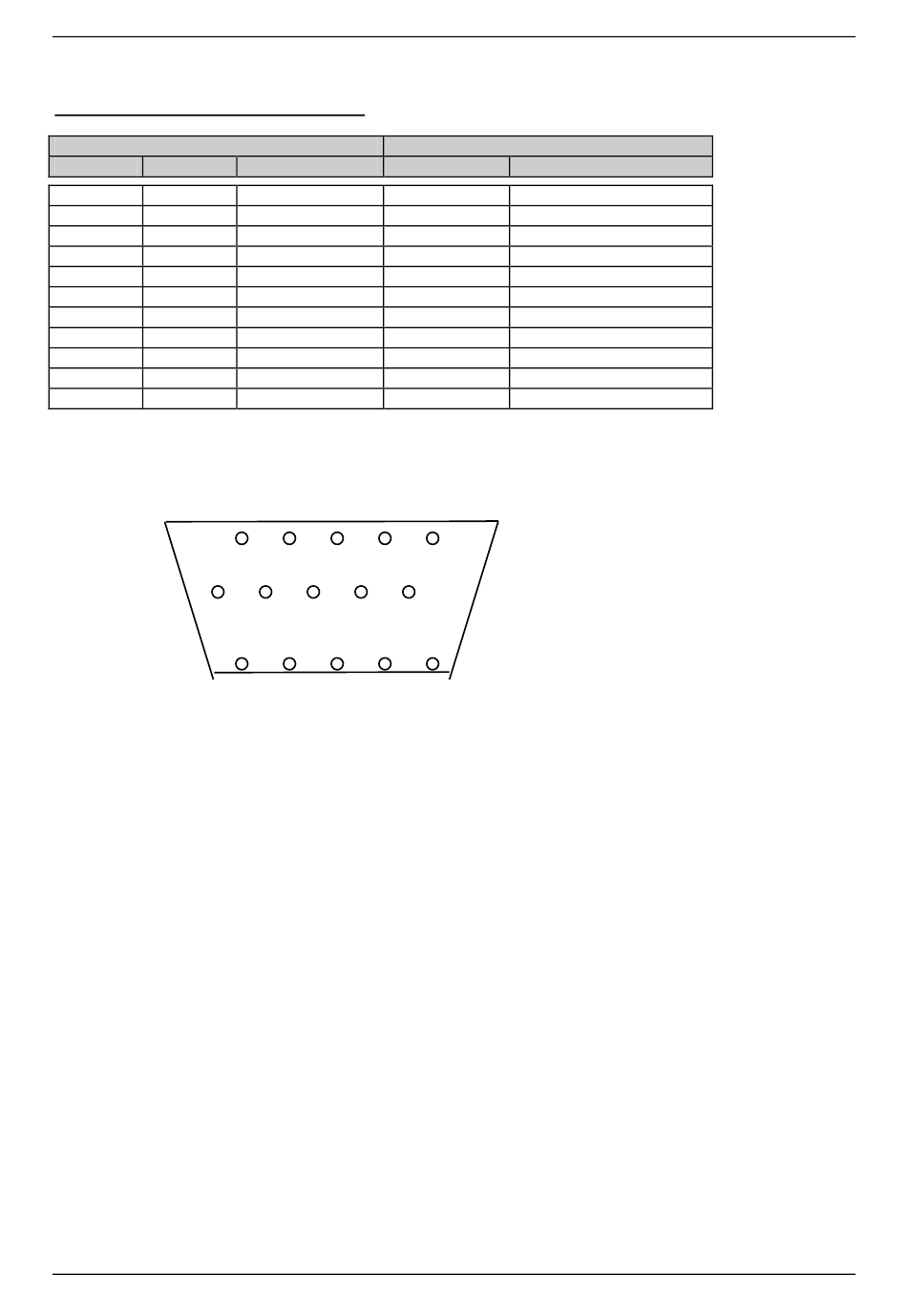

The VGA-CRT signals from J2 must be wired to a standard VGA HiDensity DSub connector (female):
The LCD signals must be wired panel specific.
Solderside view of the female 15pin HiDSub
6
15 pins HiDensity DSUB
Signal Pin
VGA red Pin 1
VGA green Pin 2
VGA blue Pin 3
Horizontal Synch Pin 13
Vertical Synch Pin 14
Pin 5 + 11
Ground Pin 5, 6, 7, 8
nc
nc
Serial_Data
Serial_Clock
1 2 3 4
Red Green Blue
7 8 9 10
GND
11 12 13 14
Hsyn VSyn
Signal
Red
Green
Blue
H-Synch
V-Synch
Bridged
Ground
5
GND
15
49
