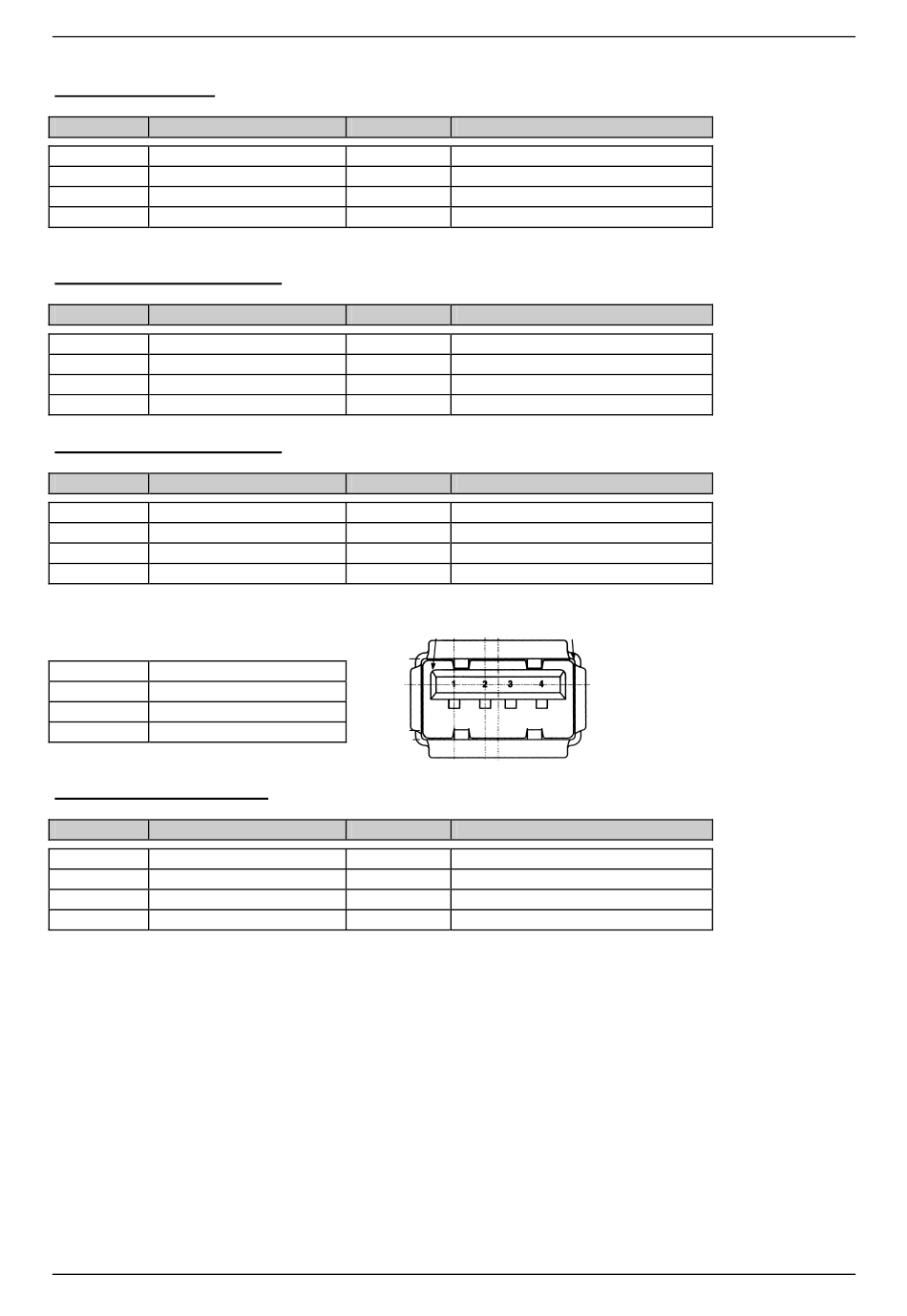

DIGITAL-LOGIC AG
J19
Power supply
Pin
Signal
Pin 1
= GND
Pin 3
= nc
Pin 5
= nc
Pin 7
= GND
VCCSUS = 5Volt Main Supply Input
J5
USB 1 connector
Pin
Signal
Pin 1
= VCC
Pin 2
= USB-P0-
Pin 3
= USB-P0+
Pin 4
= GND
J7
USB 2 connector
Pin
Signal
Pin 1
= VCC
Pin 2
= USB-P0-
Pin 3
= USB-P0+
Pin 4
= GND
Pin 1
= VCC
Pin 2
= USB-P0-
Pin 3
= USB-P0+
Pin 4
= GND
J12
IrDA connector
Pin
Signal
Pin 1
Vcc
Pin 2
IRTX
Pin 3
IRRX
Pin 4
GND
Pin
Signal
Pin 2
= VCCSUS +5Volt Input Supply
Pin 4
= (+12V input)
Pin 6
= PWR_BTN#
Pin 8
= VCCSUS +5Volt Input Supply
Pin
Signal
Pin
Signal
Pin
Signal
46
MSM800 SEV Manual V1.0A
