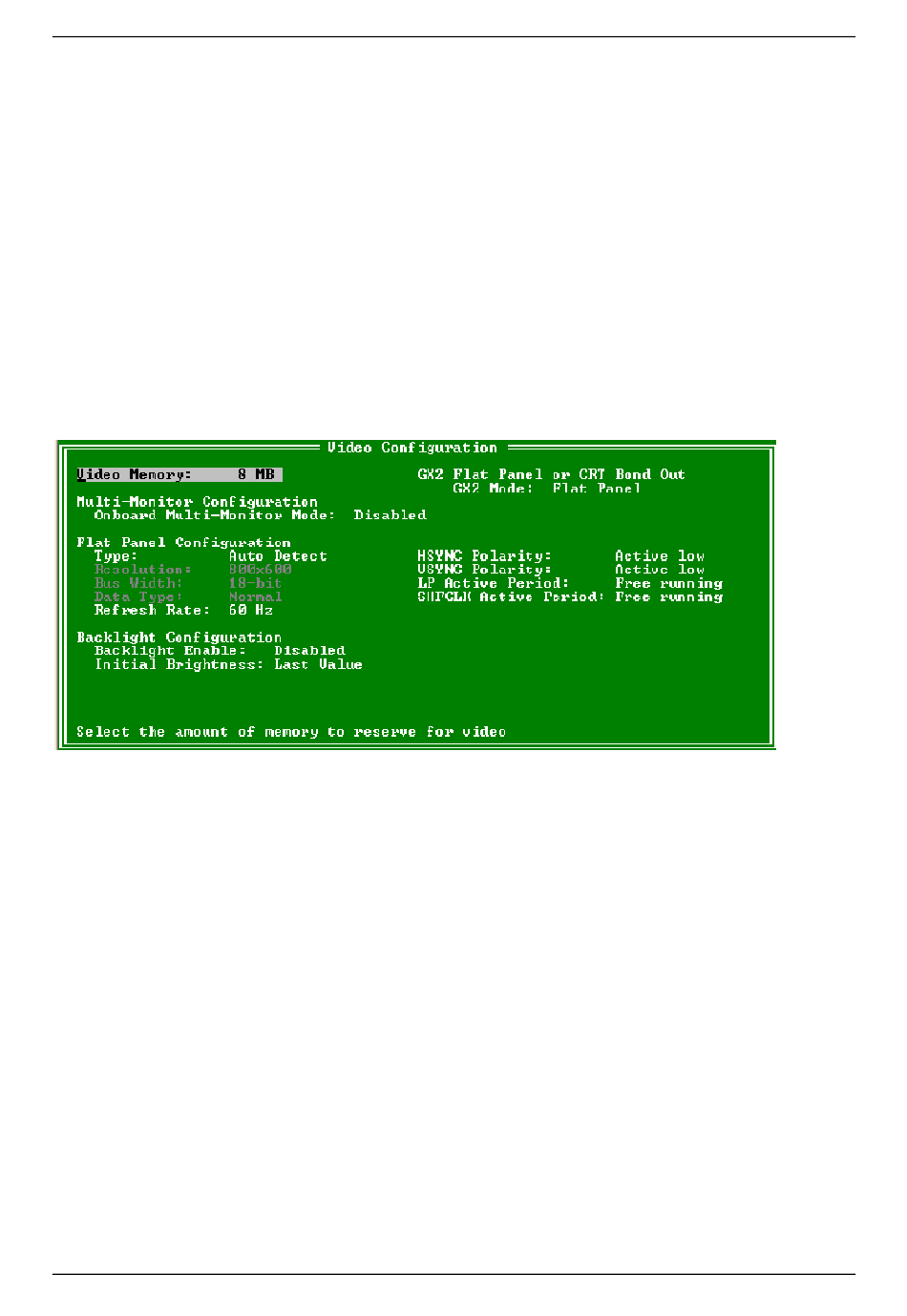

HSYNC Polarity: Selects the active polarity of the HSYNC signal to the panel. The options are Ac-
tive Low or Active High
VSYNC Polarity: Selects the active polarity of the VSYNC signal to the panel. The options are Ac-
tive Low or Active High
LP Active Period: Selects the active period of the LDE/MOD (LP) signal. The options are Free
Running and Active Only
SHFCLK Active Period: Selects the active period of the SHFCHK signal. The options are Free
Running and Active Only
Backlight Configuration: Allows the configuration of the backlight
Backlight Enable: Selects the if the backlight is Enabled or Disabled
Initial Brightness: Selects the initial brightness of the panel. The options are Last Value, 0%(off),
10%, 20%, 30%, 40%,50%, 60%, 70%, 80%, 90%, 100% (full on)
