3.3 High Side Liquid Sample Hose

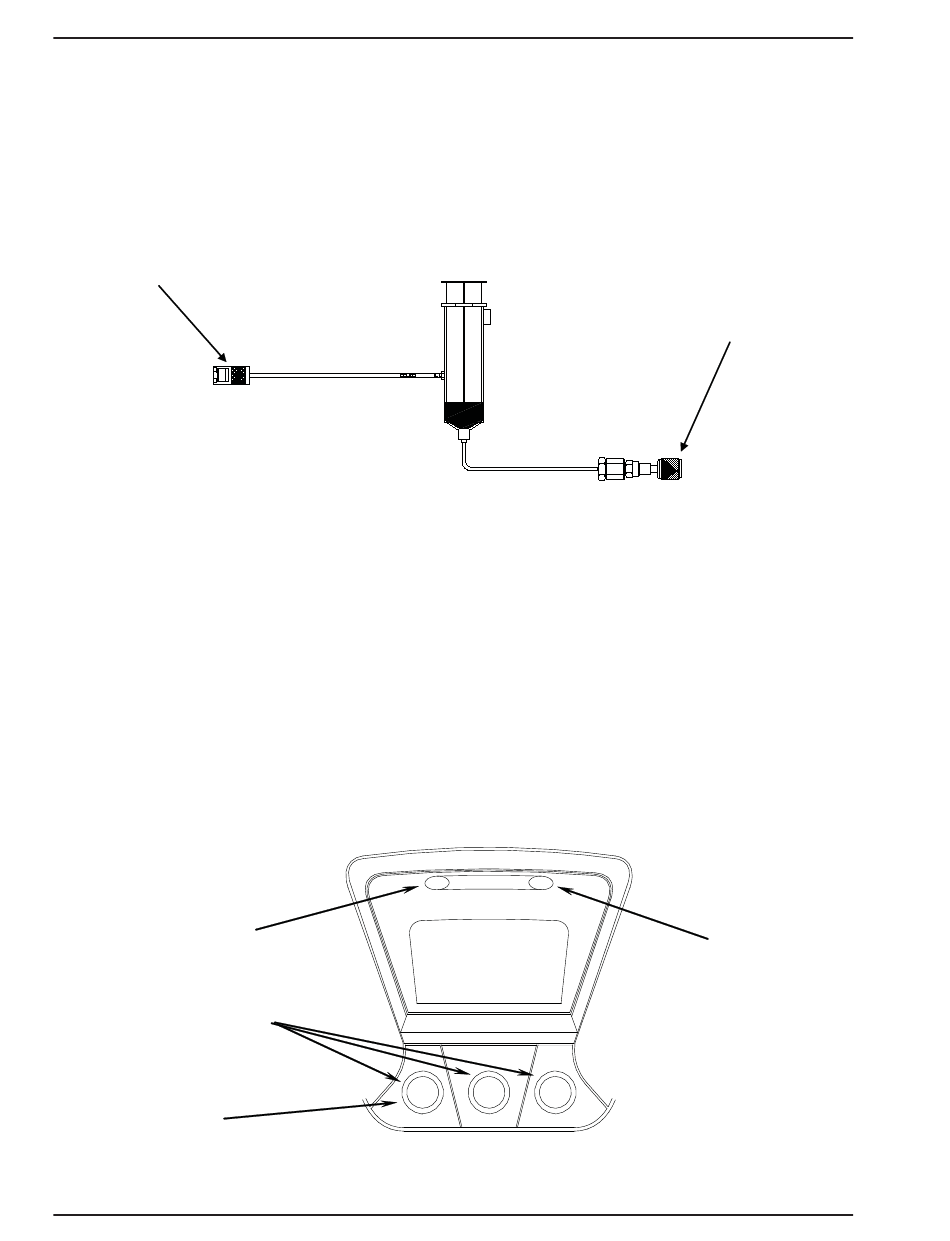

The 6 foot (1.8 meter) High Side Sample Hose is constructed of a polyurethane tube with an oil reservoir. A
brass fl ow restrictor acts to transform Liquid refrigerant to Vapor at the sample connection point while the Oil
Trap Syringe collects oil and provides a means of expulsion after the test is complete. The maximum pressure
is 500 psig. The hose is provided with magnet for attaching it to the tank and an instrument inlet port mating
connector on one end and a 1/4" SAE female fl are coupling nut on the service end.
Analyzer End

3.4 AC Power Adapter

The Pur•Chek™ Pro is powered via a 110/220 VAC, 50/60 Hz power transformer. This transformer is included
with each unit and converts a standard 110/220 VAC, 50/60 Hz wall outlet to 12VDC to power the device. An
optional internal and rechargeable battery kit is available separately. Note: Use of any other power source may
cause damage to the unit and void the warranty.

3.5 Control Panel

The Control Panel serves as the main user interface. The Control Panel features three soft key buttons that
change their function as the instrument changes modes. The current function for each button is displayed by
the soft key label at the bottom of the graphic display. Red and Green LED's at the top of the Control Panel are
used for visual status indications.
Green LED
Soft Keys
Power On/Off
6
Pur•Chek ™ Pro
Service End
(1/4 SAE Flare Nut)
Red LED
