Rj45-Com1 Serial Port (Cn7); Fan Power Connector (Cn8); Compactflash Socket (Cn9)-Optional; Table B-7: Mic-3366 Com1 Serial Port - Advantech CompactPCI MIC-3000 Series User Manual

5 N/C
6 RX-
7 N/C
8 N/C
B.7 RJ45-COM1 Serial Port (CN7)

Table B-7: MIC-3366 COM1 serial port

Pin Signal
1 NRLSD1
2 NRX1
3 NTX1
4 NDTR1
5 GND
6 NDSR1
7 NRTS1
8 NCTS1

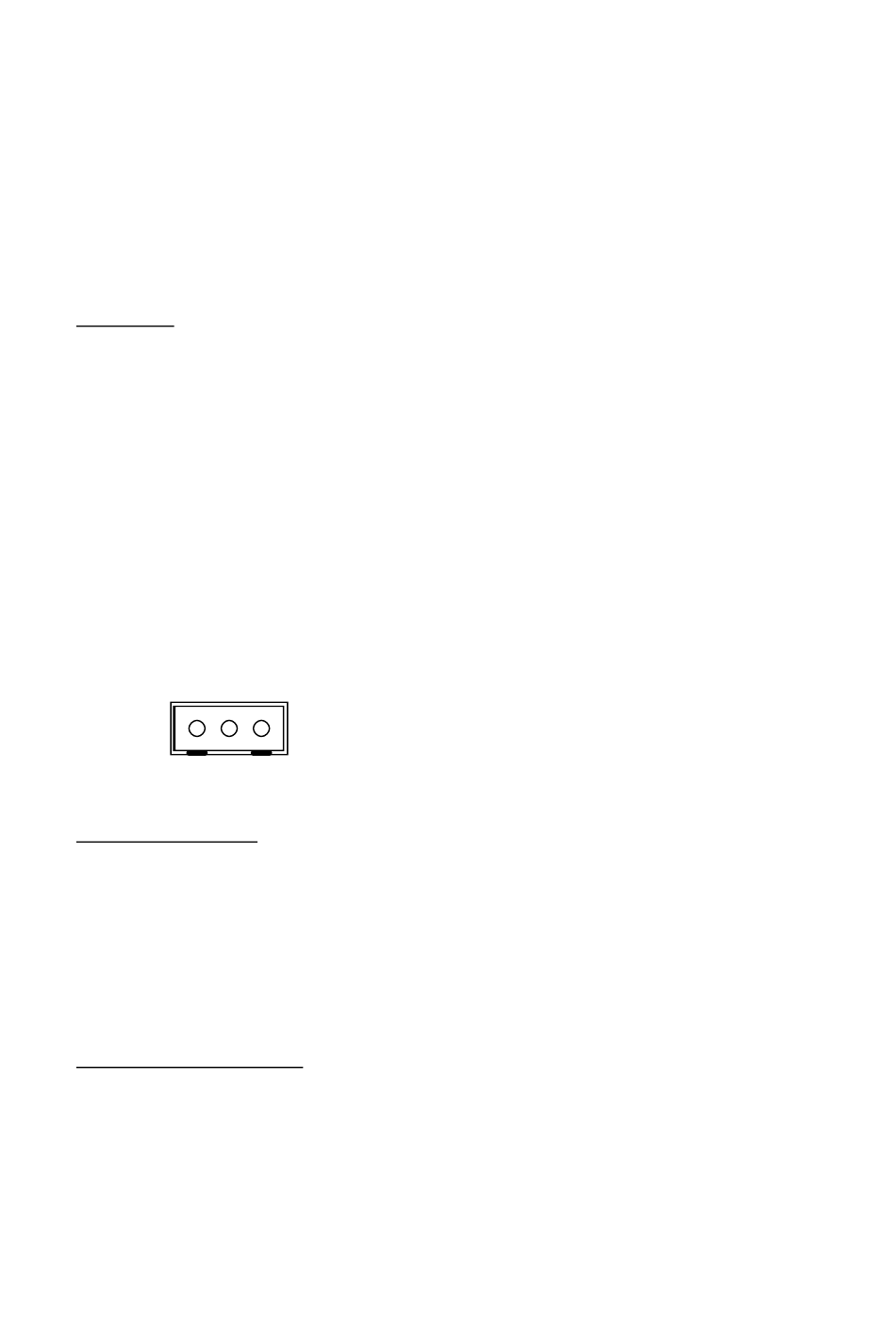

B.8 Fan Module Connector (CN8)
1 2

Table B-8: Fan Module Connector

Pin Assignment
1 Fan speed
2 +12V
3 GND
B.9 CompactFlash Socket (CN9)-Optional

Table B-9: MIC-3366 CompactFlash socket

Pin Signal Pin Signal
1 GND 26
2 ID3 27
3 ID4 28
4 ID5 29
5 ID6 30
6 ID7 31
3
N/C
ID11
ID12
ID13
ID14
ID15
MIC-3366 Series User Manual -- Page 55
