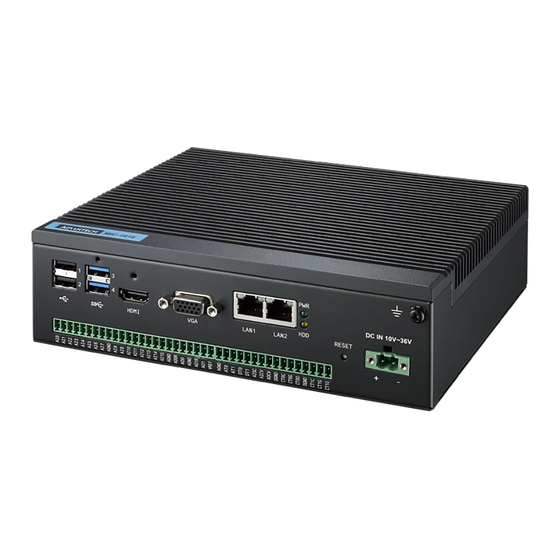

MIC-1816
Intel
Core™ i3-6100U/Celeron
®
Embedded Automation Computer
Startup Manual
Packing List
Before installation, please ensure that the following items
have been included in your shipment:
1. 1 x MIC-1816 system
2. 1 x MIC-1816 startup manual
3. Terminal blocks: 1 x 2-pin, 1 x 16-pin, 1 x 24-pin, 3 x
10-pin
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Caution: BATTERIES ARE AT RISK OF EXPLODING IF
INCORRECTLY REPLACED. REPLACE ONLY
WITH THE SAME OR EQUIVALENT TYPE
RECOMMENDED BY THE MANUFACTURER.
DISCARD USED BATTERIES ACCORDING TO
THE MANUFACTURER'S INSTRUCTIONS.
Attention: DANGER D'EXPLOSION SI LA BATTERIE EST
INEXACTEMENT REMPLACÉE. REMPLACEZ
SEULEMENT AVEC LA MÊME CHOSE OU LE
TYPE ÉQUIVALENT RECOMMANDÉ PAR LE
FABRICANT, JETTENT LES BATTERIES UTILI-
SÉES INSTRUCTIONS DE S SELON FABRICANT
DES'.
Note:
For driver download, please search for below
products on support portal.
System:
MIO-5272U-U0A1E for MIC-1810-U0A1E
MIO-5272U-U3A1E for MIC-1810-U3A1E
DAQ board: MIOE-3816
For more information on this and other Advantech
products, please visit our website at
http://www.advantech.com
http://www.advantech.com/Products
For technical support and service, please visit our
support website at
http://support.advantech.com.tw/support/default.
aspx
This manual is for the MIC-1816 Series Rev. A2.
Part No. 2001181612
Printed in Taiwan
Specifications
System
• 6th generation Intel
Memory
• 4G SODIMM DDR3-1600, Industrial Grade (-40 ~ 85 °C)
Graphics
• Intel
Serial Ports
• 2 x RS-232 from COM1/COM2
Ethernet
• Interface: 10/100/1000 Mbps
• Controller
Storage
• Internal SSD Bay: 1 x 2.5" SSD bay
Front I/O
• Display: 1 x VGA/HDMI
• USB: 2 x USB 3.0, 2 x USB 2.0
Power Requirement
• Power Type: 2-pin Phoenix Connector
• Input Voltage: 10 ~ 36 V
Miscellaneous
• Power Switch
Mounting Kit (Optional)
• Table Mount: 1960099348N001; 220 x 156 mm
Environment
• Operating Temperature: -20 ~ 60 °C with 0.7 m/S air flow
• Relative Humidity: 95% @ 40 °C (non-condensing)
Physical Characteristics
• Dimensions (W x H x D): 200 x 156 x 56 mm
• Weight: 2.41 kg (5.3 lb)
Edition 3
January 2021
3955U
®
Core ™ i processer
®
HD Graphics 520/510, supports DirectX12
®
LAN1: Intel i219
LAN2: Intel i210
Orange: System standby
Green: System boot
and 1 x industrial SSD
MIC-1816 Startup Manual 1
DC
