6.1.5 Integrated Peripherals

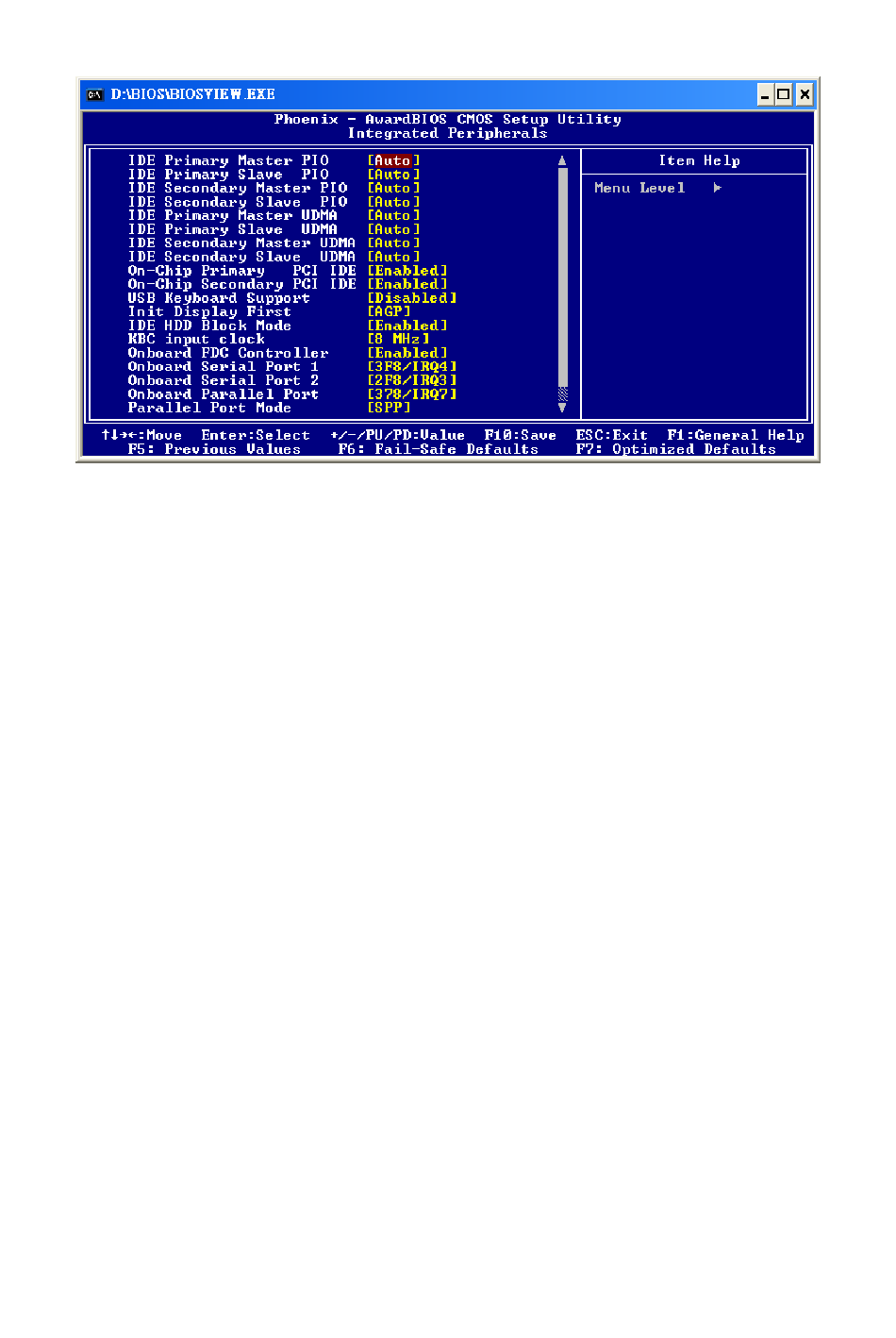

Figure 6-5: Integrated Peripherals setup screen

IDE Primary/Secondary Master/Slave PIO
The four IDE PIO (Programmed Input/Output) fields let you set a PIO mode (0-4) for
each of the four IDE devices that the onboard IDE interface supports. Modes 0
through 4 provide successively increased performance. In Auto mode, the system
automatically determines the best mode for each device. The settings are: Auto,
Mode 0, Mode 1, Mode 2, Mode 3, Mode 4.
IDE Primary/Secondary Master/Slave UDMA
Ultra DMA/33 implementation is possible only if your IDE hard drive supports it and
the operating environment includes a DMA driver (Windows 95 OSR2 or a
third-party IDE bus master driver). If your hard drive and your system software
both support Ultra DMA/33 and Ultra DMA/66 and Ultra DMA/100, select Auto to
enable BIOS support. The settings are: Auto, Disabled.
On-Chip Primary/Secondary PCI IDE
The integrated peripheral controller contains an IDE interface with support for two
IDE channels. Select Enabled to activate each channel separately. The settings are:
Enabled and Disabled.
USB Keyboard Support
Select Enabled if your system contains a Universal Serial Bus (USB) controller and
you have a USB keyboard. The settings are: Enabled, Disabled.
