By choosing "ECP", the onboard parallel port will operate in ECP mode only.

Choosing "ECP + EPP" will allow the onboard parallel port to support both the ECP

and EPP modes simultaneously. The ECP mode has to use the DMA channel, so

choose the onboard parallel port with the ECP feature. After selecting it, the

following message will appear: "ECP Mode Use DMA" At this time, the user can

choose between DMA

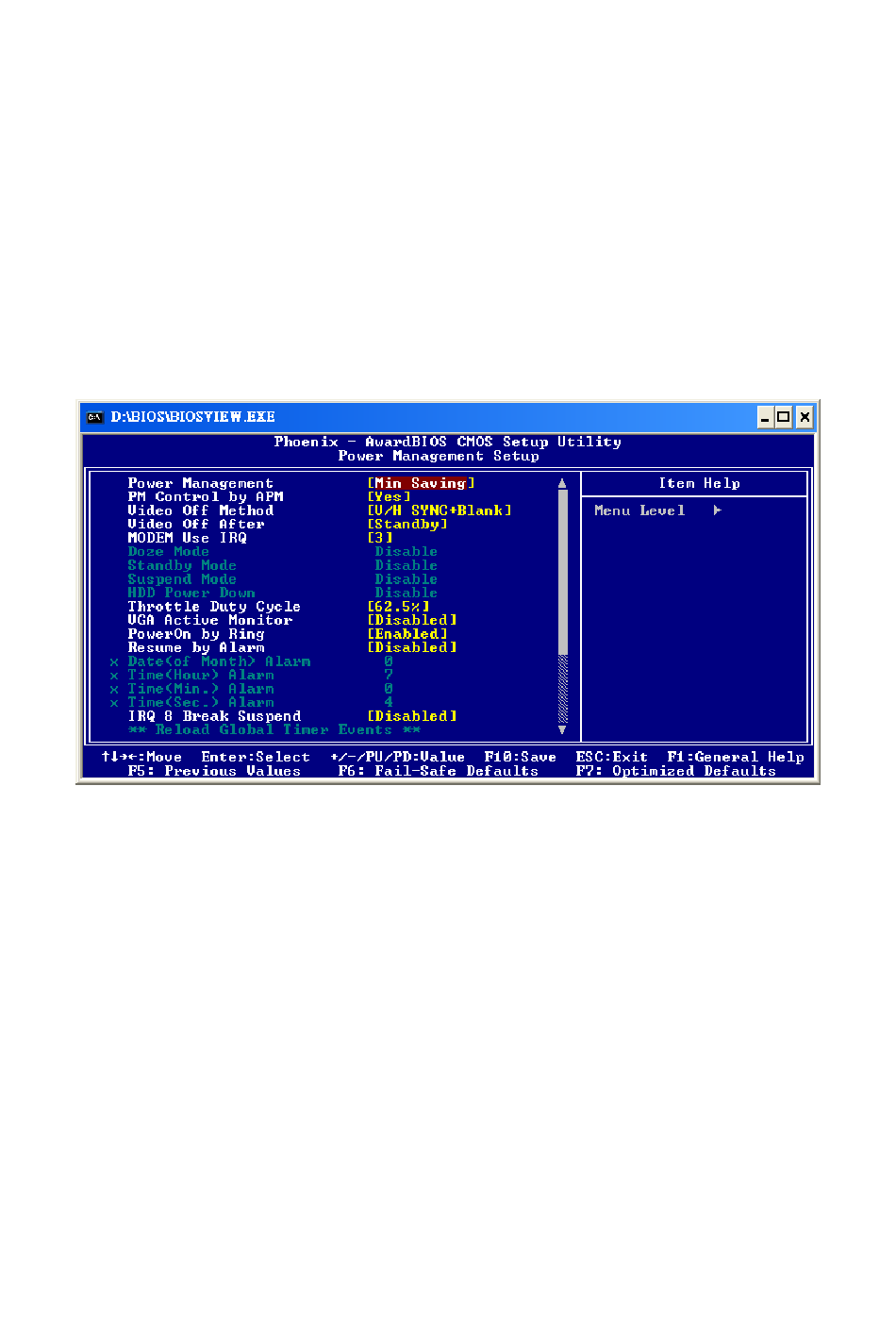

6.1.6 Power Management Setup

The Power Management Setup allows you to configure you system to most

effectively save energy while operating in a manner consistent with your own style

of computer use.

Power Management

This category allows you to select the type (or degree) of power saving and is

directly related to the following modes:

1. Suspend Mode

2. HDD Power Down

There are three selections for Power Management, two of which have fixed mode

settings.

Min Saving

Max Saving

User Define (default)

Minimum power management — Suspend Mode = 1 hr.,

and HDD Power Down = 15 min.

Maximum power management — Suspend Mode = 1 min.,

and HDD Power Down = 1 min.

Allows you to set each mode individually. When not

disabled, each of the ranges are from 1 min. to 1 hr. except

MIC-3366 Series User Manual -- Page 40
