1.4.3 Clear CMOS (JP1)
This jumper is used to erase CMOS data and reset system BIOS information. Follow
the procedures below to clear the CMOS.
1. Turn off the system.
2. Close jumper JP1 (2-3) for about 3 seconds.
3. Close jumper JP1 (1-2).
4. Turn on the system. The BIOS is reset to its default setting.

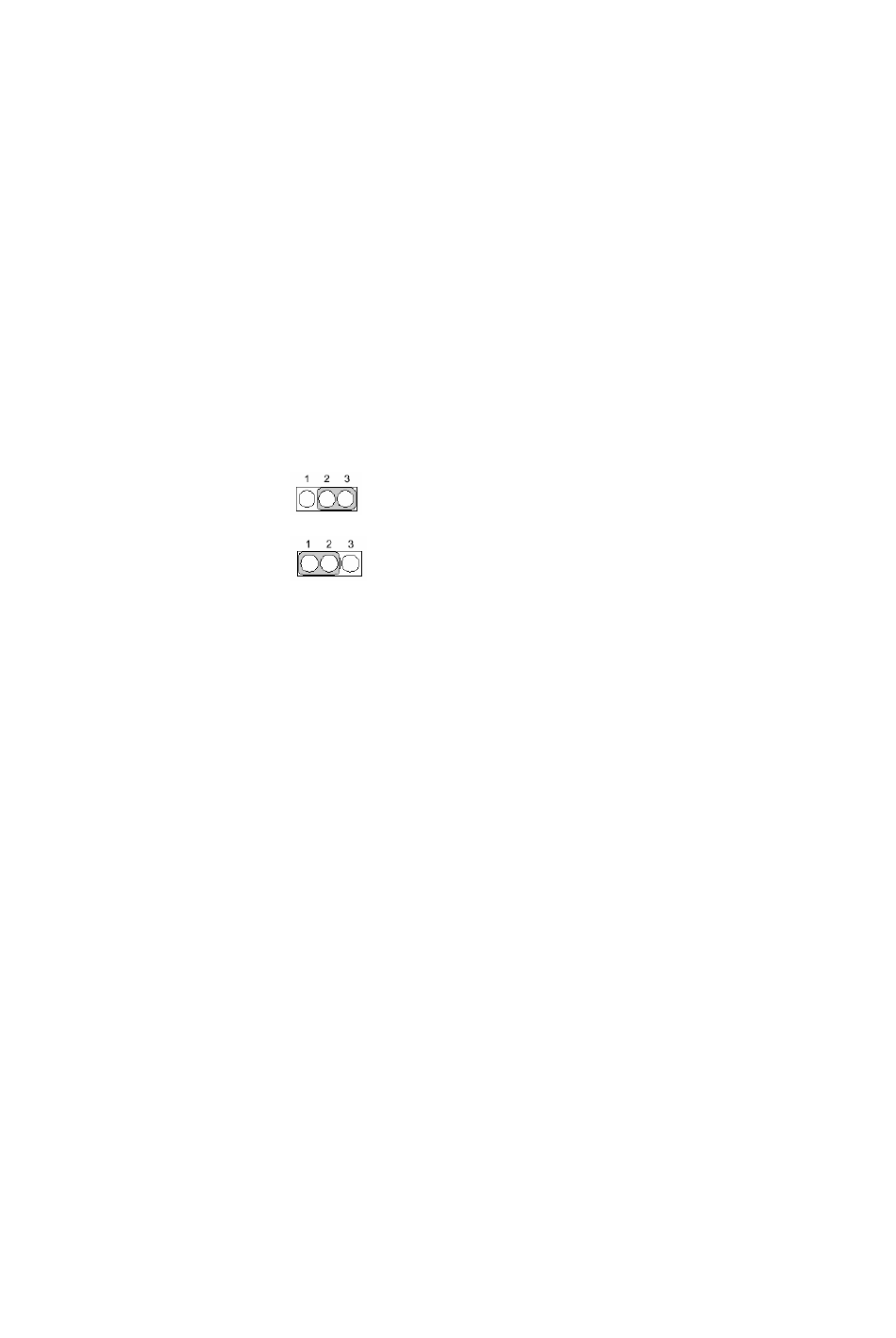

Table 1-2: Clear CMOS

CMOS JP1
Clear
Normal (default)

1.5 Connectors

On-board connectors link to external devices such as hard disk drives, keyboards, or
floppy drives, etc. Table 1-3 lists the function of each connector and Figure 1-2 and
Figure 1-3 illustrate each connector location. Chapter 2 gives instructions for
connecting external devices to your card.
Table 1-3 MIC -3366 connector descriptions
Number Function
CN1
CN2
CN4
CN5
CN7
J11/J12/J14
J21/J22/J24
J1/J2
J3/J5
LED1
SW1
SW2
Secondary IDE (CompactFlash) – Optional only
Primary IDE
SODIMM Socket
Ethernet RJ-45 Connector
COM1 RJ-45 Connector
PMC#1 Connector
PMC#2 Connector (Optional)
Primary CompactPCI™ bus
Rear I/O transition
HDD LED and Power LED
Reset switch
LAN1 bridging switch to rear I/O (Locate in the solder side)
