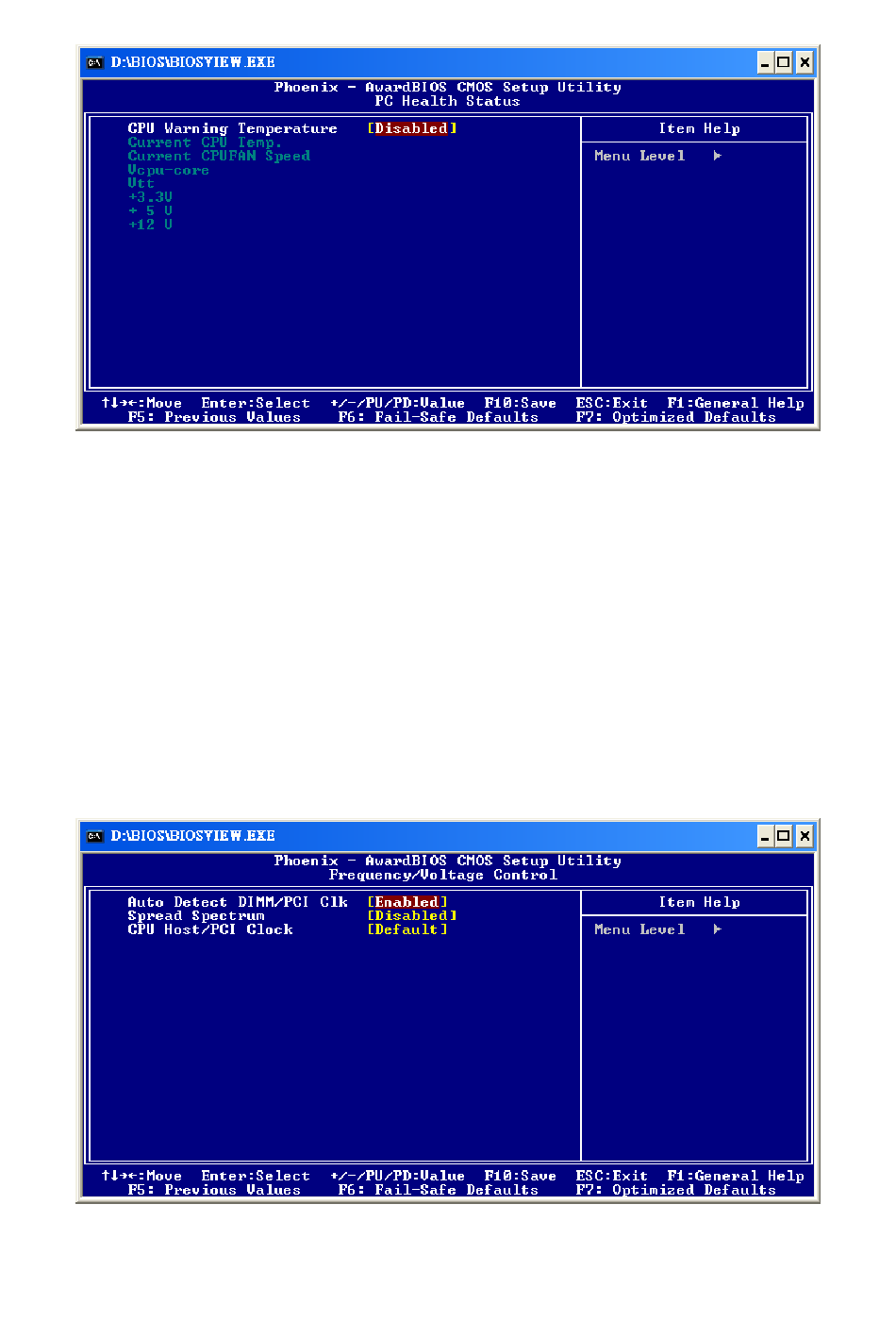

Frequency/Voltage Control; Figure 6-8: Pc Health Setup Screen; Figure 6-9: Frequency/Voltage Control Setup Screen - Advantech CompactPCI MIC-3000 Series User Manual

Modular industrial computer

Hide thumbs Also See for CompactPCI MIC-3000 Series:

Table of Contents

CPU Warning Temperature

During Enabled, this will warn the user when the CPU temperature reach a certain

temperature.

Current System Temp/Current CPU Temperature/Current System Fan

(optional)/Current Power Fan/CPU Fan/Vcore/

VTT/3.3V/+5V/+12V/-12V/-5V/VBAT(V)/5VSB(V)

This will show the CPU/FAN/System voltage chart and FAN Speed.

6.1.9 Frequency/Voltage Control

This section is for setting CPU Frequency/Voltage Control.

MIC-3366 Series User Manual -- Page 44
