SeaDoo 3D Manual page 281

Section 09 PROPULSION
Subsection 03 (REVERSE SYSTEM)

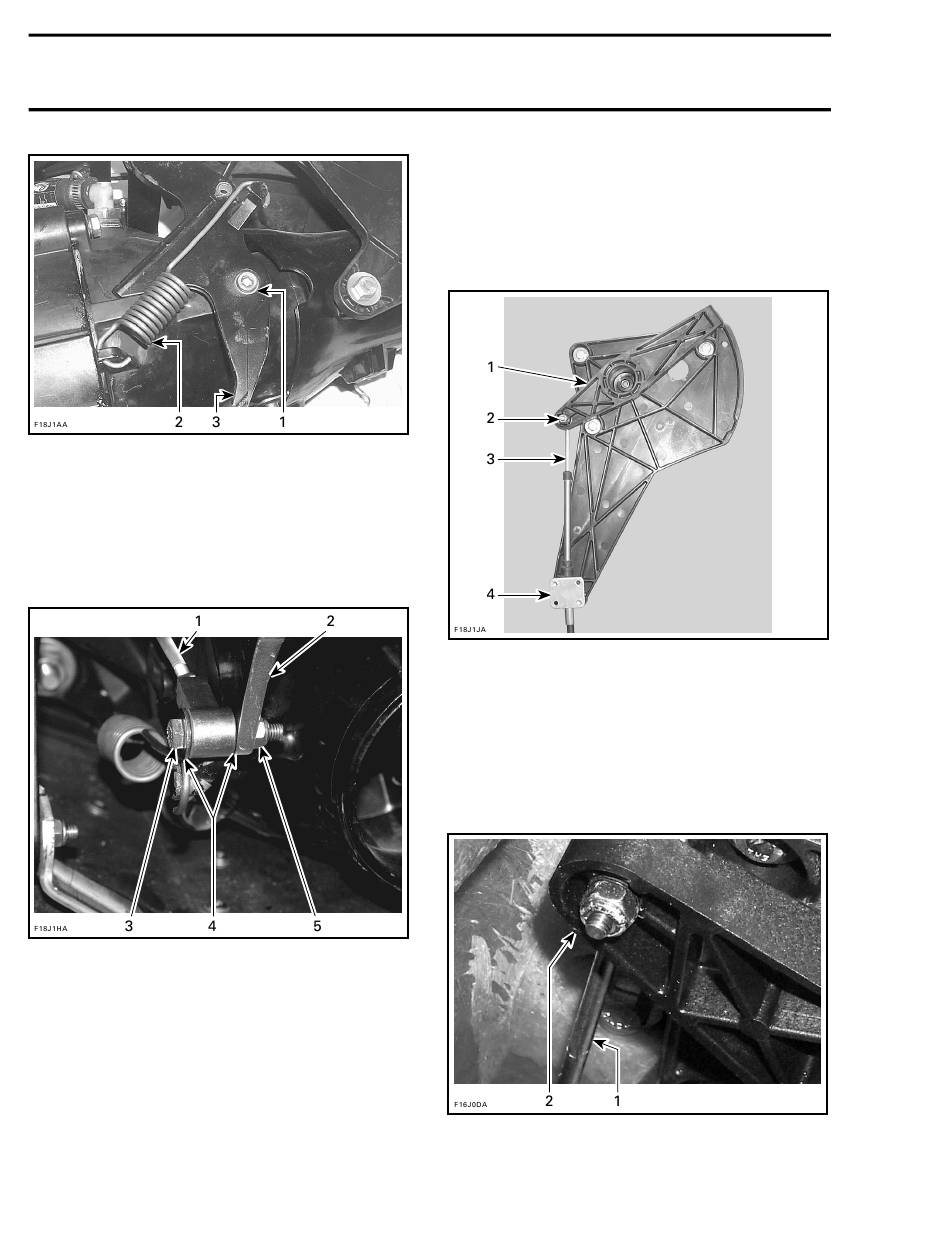

1. Pivot bolts (each side)
2. Spring
3. Pivot arm
Reverse Cable
Unscrew bolt no. 14, washers no. 15 and the elas-
tic stop nut no. 16 retaining reverse cable no. 11
on pivot arm no. 13.
1. Reverse cable
2. Pivot arm
3. Bolt
4. Washer
5. Elastic stop nut
Make sure not to loose the bushing no. 17 inside
reverse cable joint no. 18.
Unscrew the cable lock no. 19 then remove the
half rings no. 20.
Remove the seat and the glove box. Refer to
HULL/BODY.
270
On the interior lever no. 21, unscrew the elastic
stop nut no. 22 and remove the washer no. 23
retaining the reverse cable.
Remove the retaining bracket no. 24.
NOTE: Before removing reverse cable no. 11 from
hull, note cable routing for reinstallation.
1. Interior lever
2. Elastic stop nut and washer
3. Reverse cable
4. Retaining bracket
Interior Lever
Detach the reverse cable from interior lever
no. 21.
Unscrew the shift lever retaining bolt no. 25,
washer and nut, then remove interior lever.
1. Reverse cable
2. Interior lever
www.SeaDooManuals.net
smr2005-064
