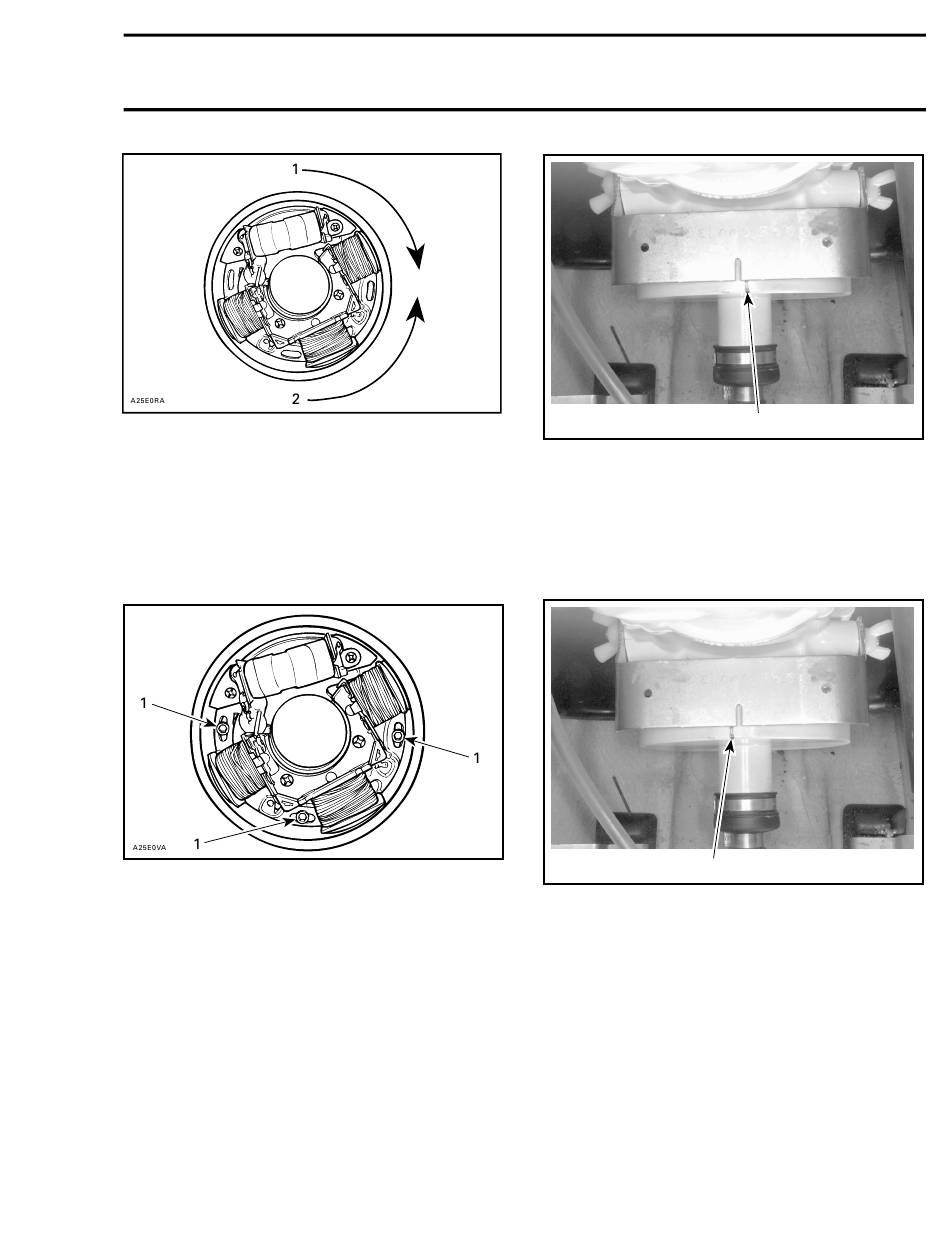

TYPICAL
1. To retard
2. To advance
To adjust, loosen 3 armature plate retaining
screws and slightly rotate armature plate in prop-
er direction.
NOTE: As a guideline, turn the armature plate the
same amount needed to align mark on PTO fly-
wheel.
TYPICAL
1. Retaining screw
Example 1
When PTO flywheel mark is on right side of timing
tool slot, it indicates advanced timing.
smr2005-057
F01H5UA
1. Too advanced timing
In this case, turn armature plate clockwise when
facing it.
Example 2
When PTO flywheel mark is on left side of timing
tool slot, it indicates retarded timing.
F01H5VA
1. Retarded timing
In this case, turn armature plate counterclockwise
when facing it.
After adjustment, tighten armature plate retaining
screws.
CAUTION: Armature plate screws must have
Loctite 243 (P/N 293 800 060) applied before
tightening. Make sure armature plate screws
are well secured.
Reinstall removed parts. Refer to MAGNETO
SYSTEM.
Recheck ignition timing (make sure engine is cold).
www.SeaDooManuals.net
Section 07 ELECTRICAL SYSTEM
Subsection 01 (IGNITION SYSTEM)
