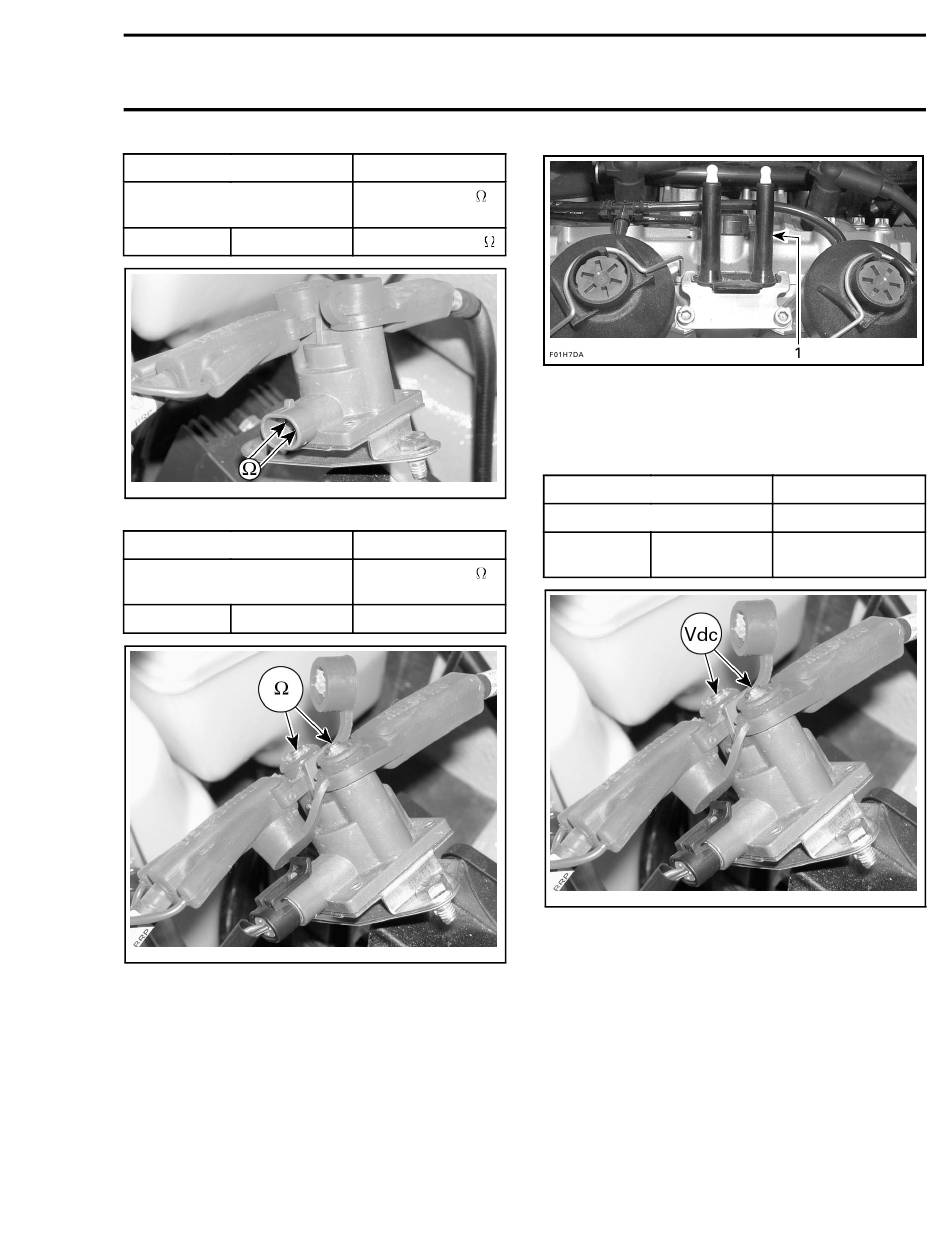

SOLENOID CONNECTOR
PIN
A B
smr2005-059-004_a
TYPICAL
SOLENOID CONNECTOR
PIN
Battery post Starter post
smr2005-059-005_b
TYPICAL
If any measurement is out of specification, replace
solenoid.
Dynamic Test
Disconnect spark plug cables and connect them
on grounding device.
NOTE: This is done to avoid engine starting.
smr2005-059
MEASUREMENT
RESISTANCE
@ 20°C (68°F)
approximately 5
MEASUREMENT
RESISTANCE
@ 20°C (68°F)
Open circuit
www.SeaDooManuals.net
Section 07 ELECTRICAL SYSTEM
Subsection 03 (STARTING SYSTEM)
1. Grounding device
Depress start/stop button and while engine is
cranking, measure the voltage drop as follows
with a multimeter.
SOLENOID CONNECTOR
PIN
Post coming Post going to
from battery starter
smr2005-059-005_a
TYPICAL
If voltage is out of specification, replace solenoid.
Electrical Cables or Connections
Check all connections, grounds, cables and wires.
Tighten any loose cables. Replace any chafed
wires.
MEASUREMENT
VOLTAGE
0.2 Vdc max.
189
