58 en | How to Install & Set the TCP/IP Address on a PC
6.
7.
8.
Ver 2.0.0 | 2006.07

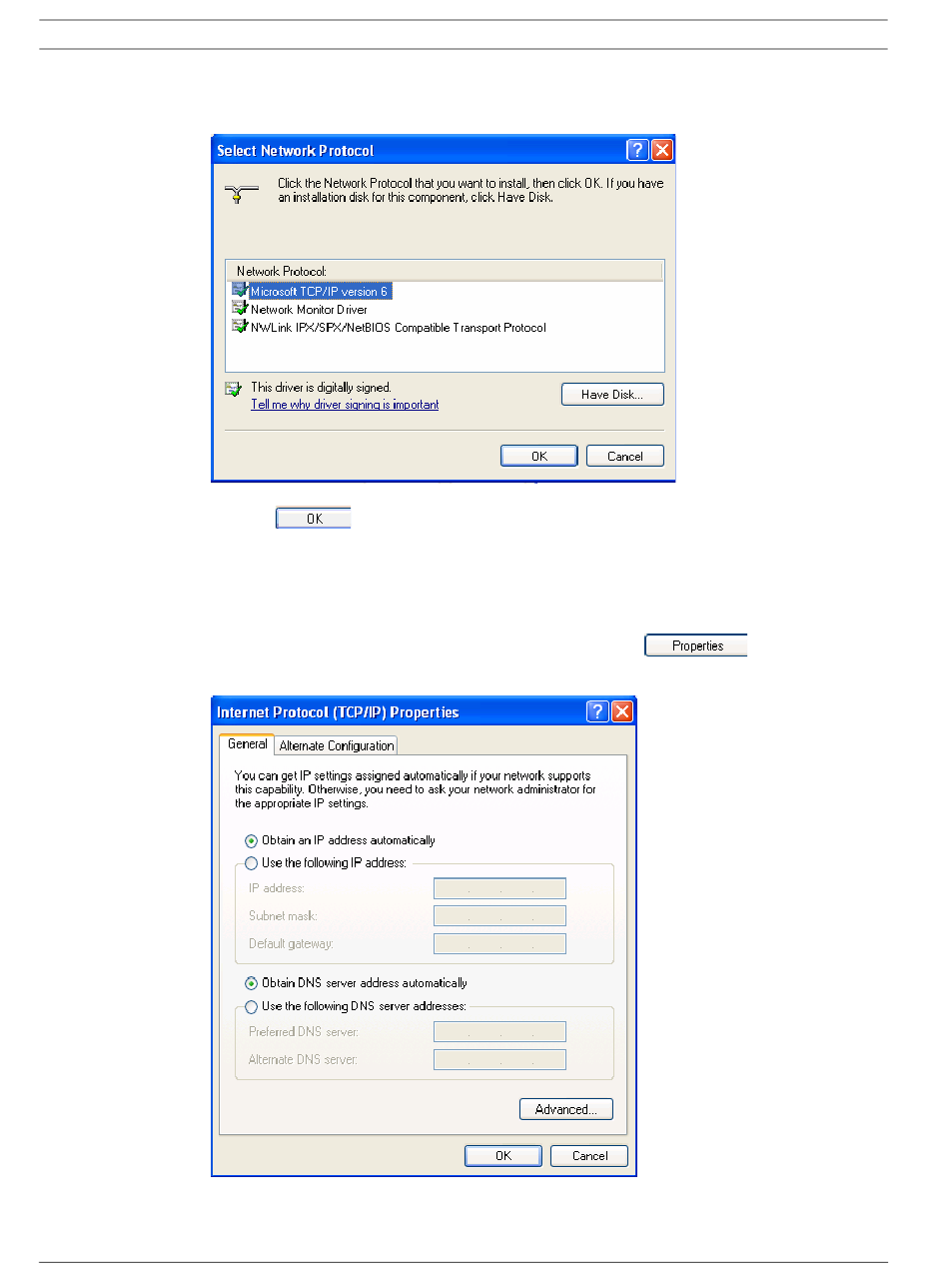

The dialog box that appears is shown below. From this box, select Microsoft TCP/IP ver-
sion 6 in the window
Click to proceed with the component installation. Follow any instructions that
may be displayed on the screen. Note that the system may ask you to insert your Win-
dows Installation Disk in the CD ROM drive. When finished, go back to step 3 and select
the TCP/IP Protocol - network adapter line from the list of installed network components.
Then proceed to step. 8.
With the TCP/IP - adapter component highlighted, click
IP Properties. The TCP/IP properties dialog box will appear as shown following
Hardware Manual
Access Easy Controller
to define the TCP/
