Access Easy Controller
However, if you are having the CE Listed version of Access Easy Controller, you could uses
output provided by the 15V DC Input Power Supply Card to provide the triggering as shown
on the following page.

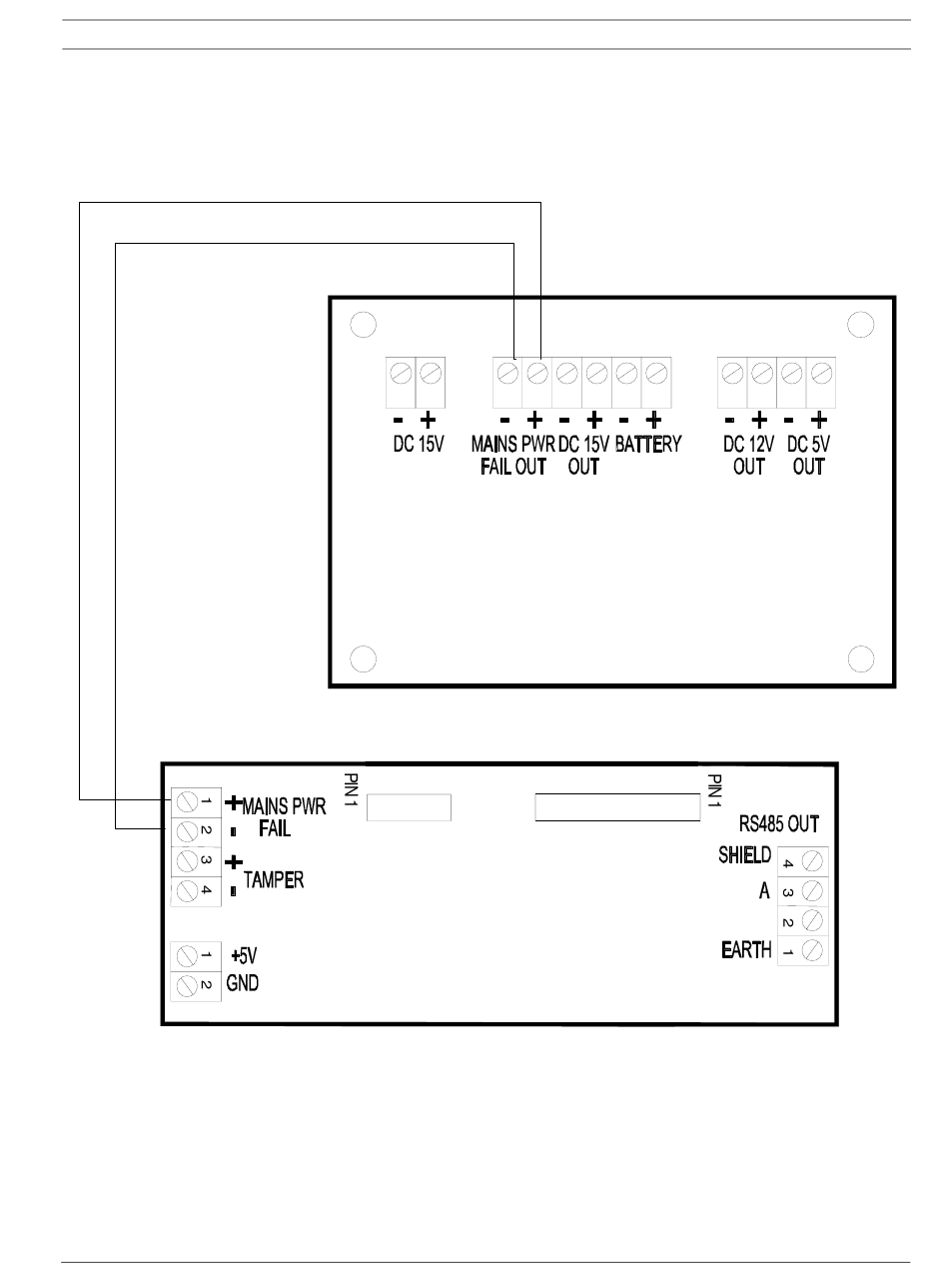

Internal wiring diagram between Power Supply board (CE Listed System) and Secure Com
Card
Bosch Security Systems
T1
T2
2
1
6
5
IN
15VDC INPUT POWER SUPPLY BOARD
CN2
SECURE COMM. CARD
(P/N: AEC MOD COM)
Hardware Manual
Secure/Communication Card | en 119
T3
4
3
2
1
(P/N: AEC MOD UPS1)
CN1
4
3
2
1
B
Ver 2.0.0 | 2006.07
