Bosch Access Easy Controller Hardware Manual page 109

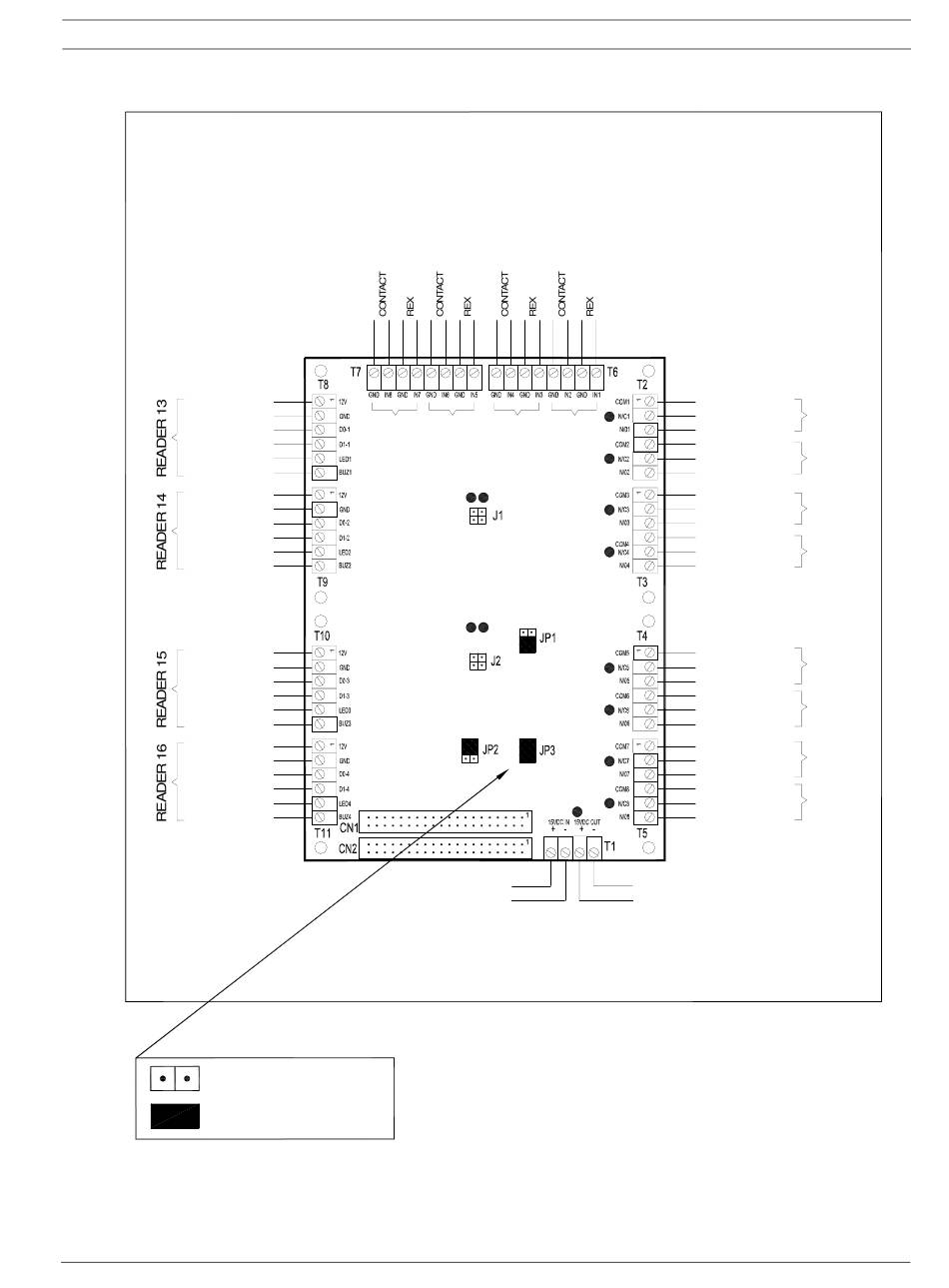

Access Easy Controller
+12 VDC (RED)
GROUND (BLACK)
DATA 0 (GREEN)
DATA 1 (WHITE)
LED (ORANGE)
NO CONNECTION
+12 VDC (RED)
GROUND (BLACK)
DATA 0 (GREEN)
DATA 1 (WHITE)
LED (ORANGE)
NO CONNECTION
+12 VDC (RED)
GROUND (BLACK)
DATA 0 (GREEN)
DATA 1 (WHITE)
LED (ORANGE)
NO CONNECTION
+12 VDC (RED)
GROUND (BLACK)
DATA 0 (GREEN)
DATA 1 (WHITE)
LED (ORANGE)
NO CONNECTION
Indicates jumper removed
Indicates jumper inserted
Bosch Security Systems
4 READER BOARD
BOARD ADDRESS 4
READER ADDRESS 13 TO 16
1
READER 16 READER 15 READER 14 READER 13
4 READER BOARD
(P/N: AEC 4W EXT)
15 VDC IN
GROUND IN
Hardware Manual
4-Reader Boards and 8 Input/8 Output Boards | en 109
1
COMMON
NORMALLY CLOSED
NORMALLY OPEN
COMMON
NORMALLY CLOSED
NORMALLY OPEN
COMMON
NORMALLY CLOSED
NORMALLY OPEN
COMMON
NORMALLY CLOSED
NORMALLY OPEN
COMMON
NORMALLY CLOSED
NORMALLY OPEN
COMMON
NORMALLY CLOSED
NORMALLY OPEN
COMMON
NORMALLY CLOSED
NORMALLY OPEN
COMMON
NORMALLY CLOSED
NORMALLY OPEN
1
GROUND OUT
15 VDC OUT
READER 13
STRIKE
OUTPUT
READER 14
STRIKE
OUTPUT
READER 15
STRIKE
OUTPUT
READER 16
STRIKE
OUTPUT
SPARE
STRIKE
OUTPUT
SPARE
STRIKE
OUTPUT
SPARE
STRIKE
OUTPUT
SPARE
STRIKE
OUTPUT
