130 en | 18VAC Input Power Supply Card
Reference DC 15V Output T2-4 & T2-3

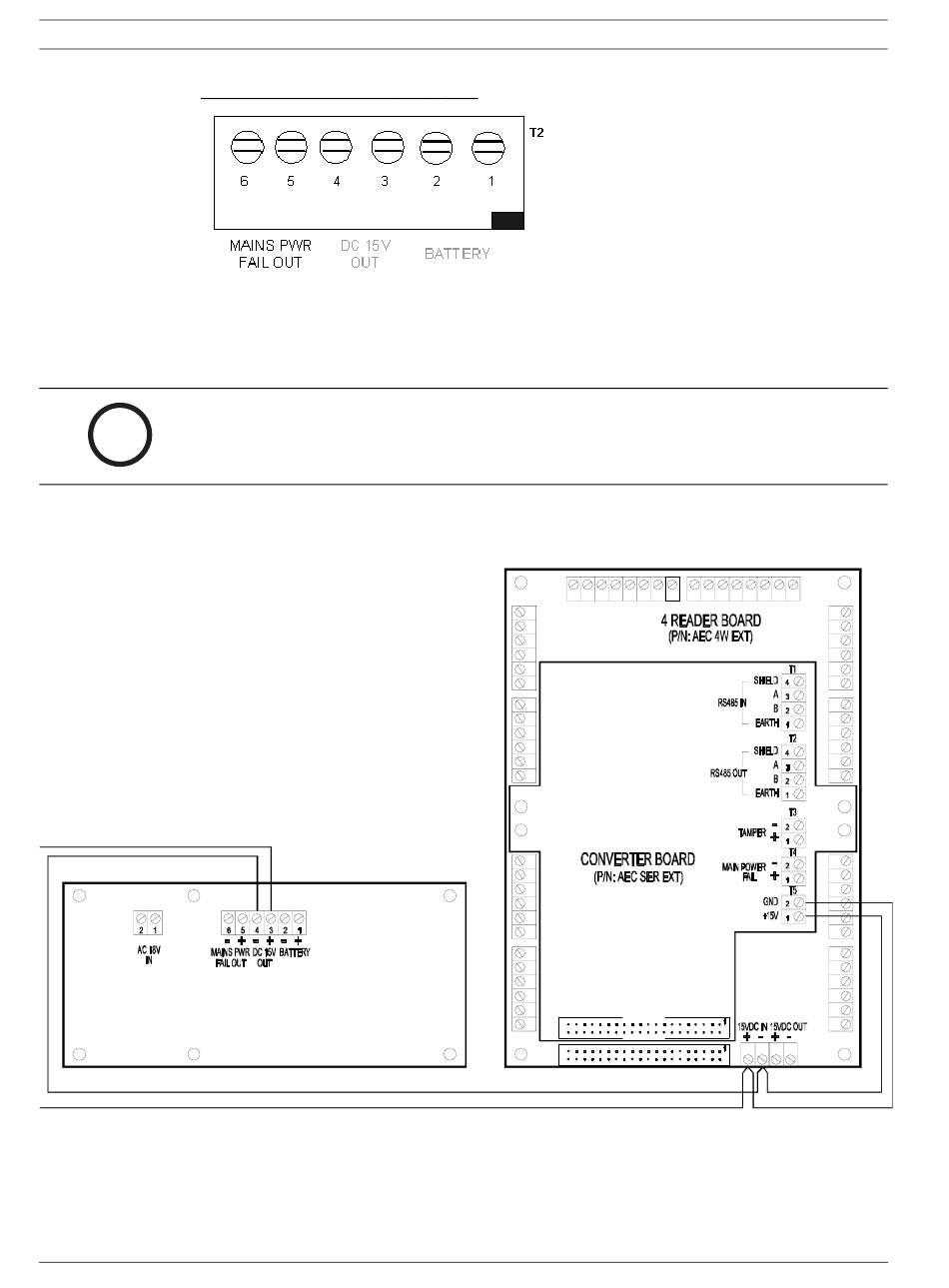

This output provides the power to the rest of the cards in the same enclosure. Those cards
that required the 15VDC are Reader Board, I/O Cards and the Convertor Card, although it is
not a must to tap the power from this output, it serve as a termination point to loop the power
point to the rest of the cards that requires the 15VDC as shown below.
NOTICE!
i
This output could only provide a Max. output of 15VDC at 1A. DO NOT CONNECT ANY HIGH
POWER CONSUMPTION DEVICES TO IT. All other devices, such as Locks, should be supplied
by a separate power source.
