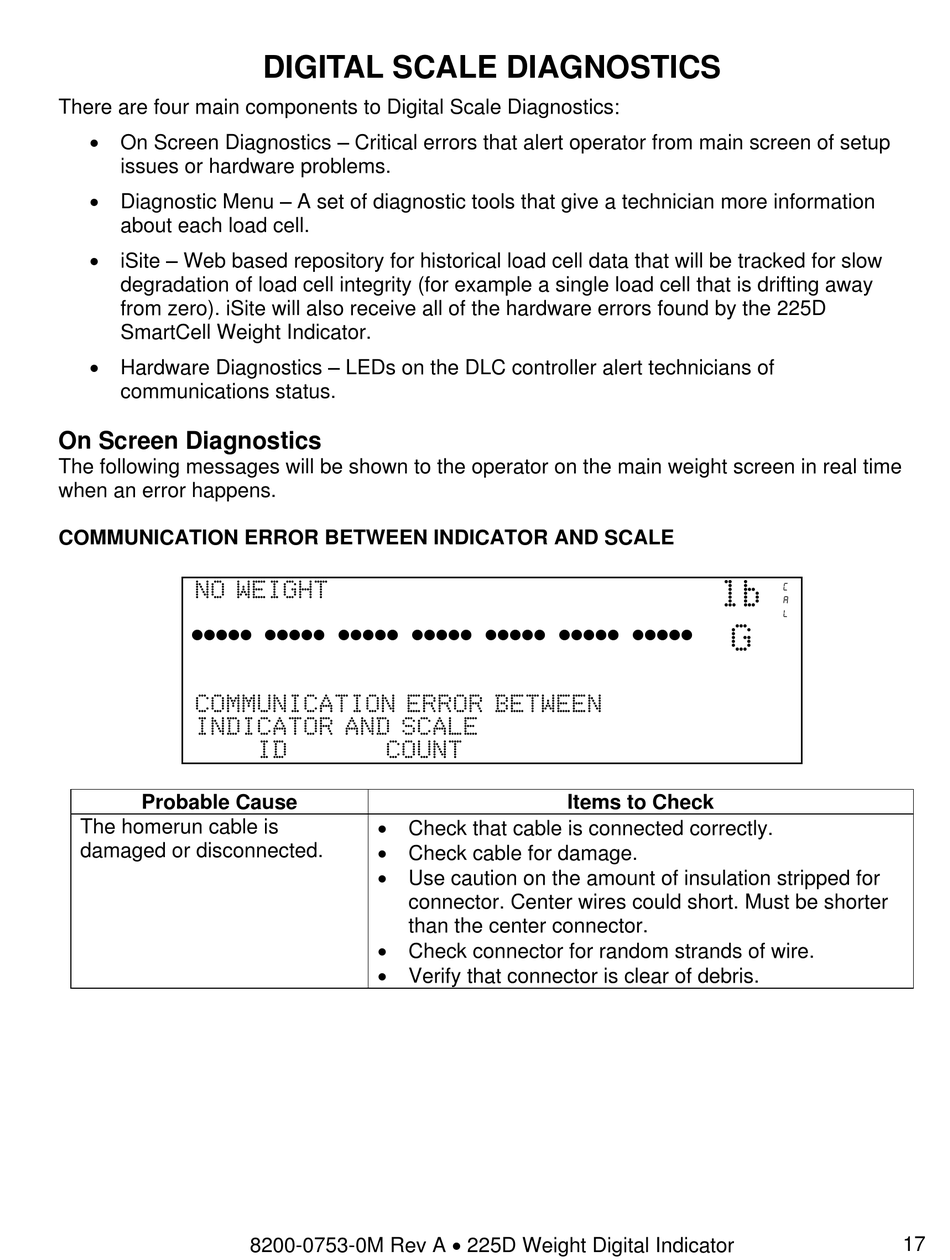

Digital Scale Diagnostics; On Screen Diagnostics - Cardinal 225D SmartCell Installation And Technical Manual

There are four main components to Digital Scale Diagnostics:
 On Screen Diagnostics – Critical errors that alert operator from main screen of setup
issues or hardware problems.
 Diagnostic Menu – A set of diagnostic tools that give a technician more information
about each load cell.
 iSite – Web based repository for historical load cell data that will be tracked for slow
degradation of load cell integrity (for example a single load cell that is drifting away
from zero). iSite will also receive all of the hardware errors found by the 225D
SmartCell Weight Indicator.
 Hardware Diagnostics – LEDs on the DLC controller alert technicians of
communications status.

On Screen Diagnostics

The following messages will be shown to the operator on the main weight screen in real time
when an error happens.
COMMUNICATION ERROR BETWEEN INDICATOR AND SCALE
NO WEIGHT
-------
COMMUNICATION ERROR BETWEEN
INDICATOR AND SCALE
Probable Cause
The homerun cable is
damaged or disconnected.

DIGITAL SCALE DIAGNOSTICS

ID COUNT
 Check that cable is connected correctly.
 Check cable for damage.
 Use caution on the amount of insulation stripped for
connector. Center wires could short. Must be shorter
than the center connector.
 Check connector for random strands of wire.
 Verify that connector is clear of debris.
8200-0753-0M Rev A  225D Weight Digital Indicator
lb
G
Items to Check



17
