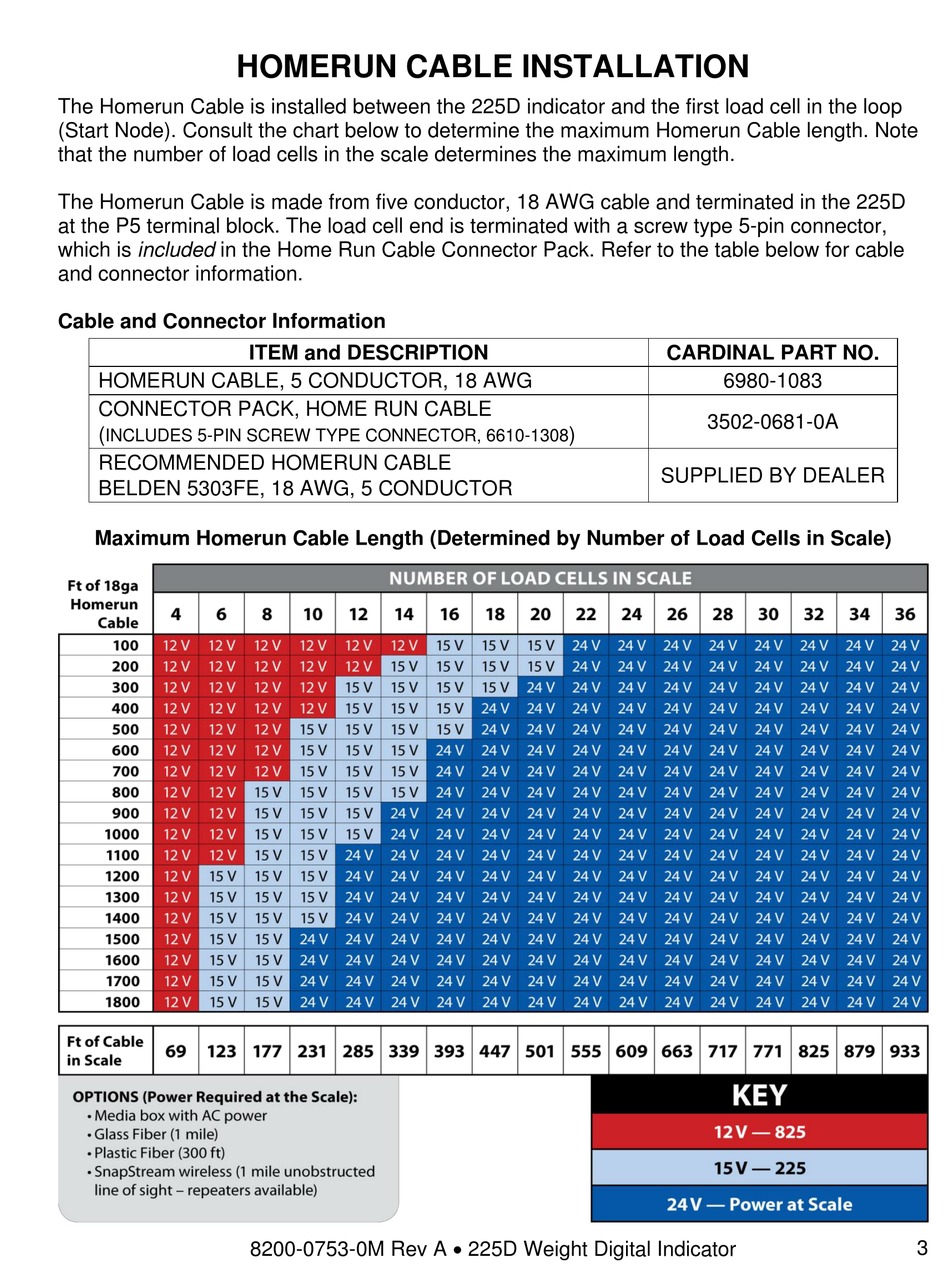

HOMERUN CABLE INSTALLATION

The Homerun Cable is installed between the 225D indicator and the first load cell in the loop
(Start Node). Consult the chart below to determine the maximum Homerun Cable length. Note
that the number of load cells in the scale determines the maximum length.
The Homerun Cable is made from five conductor, 18 AWG cable and terminated in the 225D
at the P5 terminal block. The load cell end is terminated with a screw type 5-pin connector,
which is included in the Home Run Cable Connector Pack. Refer to the table below for cable
and connector information.
Cable and Connector Information
HOMERUN CABLE, 5 CONDUCTOR, 18 AWG
CONNECTOR PACK, HOME RUN CABLE
(
INCLUDES 5-PIN SCREW TYPE CONNECTOR, 6610-1308
RECOMMENDED HOMERUN CABLE
BELDEN 5303FE, 18 AWG, 5 CONDUCTOR
Maximum Homerun Cable Length (Determined by Number of Load Cells in Scale)
ITEM and DESCRIPTION
8200-0753-0M Rev A  225D Weight Digital Indicator
CARDINAL PART NO.
6980-1083
3502-0681-0A
)
SUPPLIED BY DEALER
