ConveyLinx-IO User's Guide
As you can see, by simply manipulating the Subnet Mask values, you can configure your PC to see multiple
ConveyLinx networks.
C
E
ONFIGURATION
XAMPLE
Your PC's I.P. address is used by an Ethernet network to identify the PC on a network. For most office networks,
the I.P. address is automatically assigned by your office network or in smaller networks (like a home network) the
IP address is assigned by a router device. In some cases, your I.T. department may assign your PC or laptop a fixed
I.P. address.
For our example we wish to be able to communicate with up to 4 separate ConveyLinx Subnets. With a properly
configured PC, we can use EasyRoll to view and set parameters for all modules on all 4 networks.
The following figure illustrates how we want our PC's I.P. address settings to be configured:
Publication ERSC-1008 Rev 1.1 – October 2017

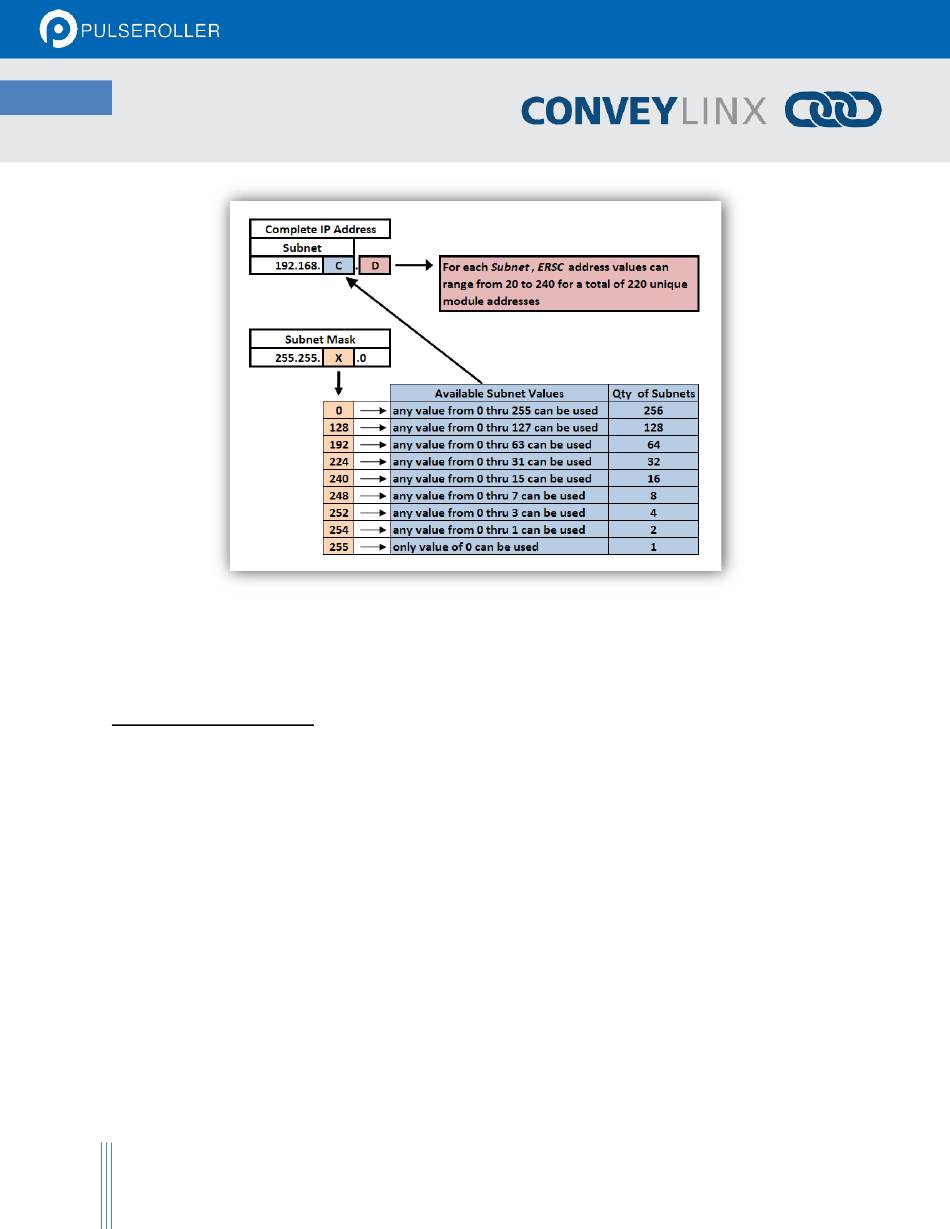

FIGURE 37 - AVAILABLE SUBNETS PER TYPICAL SUBNET MASK VALUES
