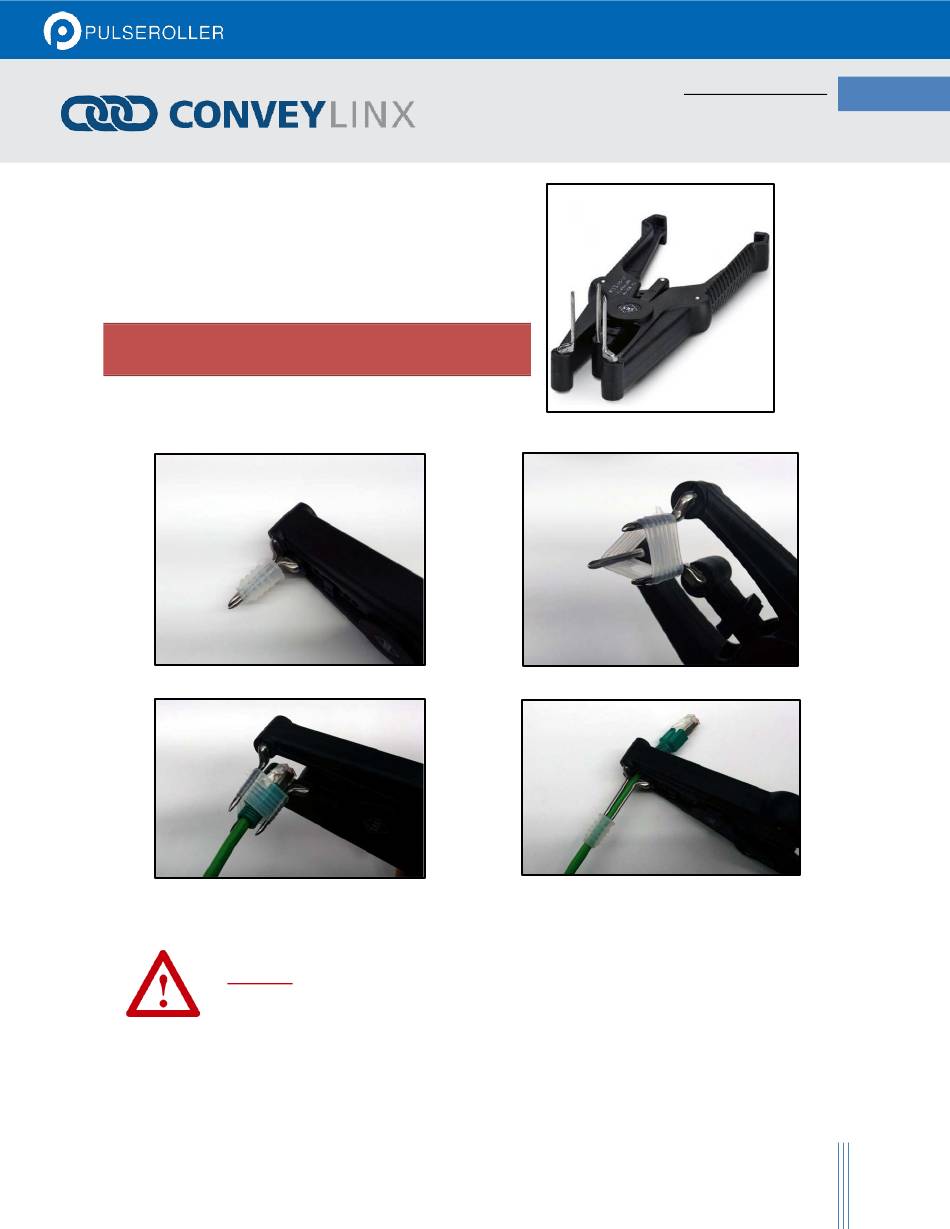

IP54 protective shroud requires a special tool to properly install
the shroud onto the RJ-45 connector. Figure 7 shows Phoenix
Contact item 2891547 FL IP 54 Assembly Tool.
This tool must be purchased separately
FIGURE 8 - PROTECTIVE SHROUND PLACED ON TOOL
FIGURE 10 - INSERTING RJ-45 END THROUGH SHROUD
All Ethernet cables for connections between modules are recommended to be
shielded.
unexpected results. Shown above are Ethernet cables with sealing shrouds
required for IP54 compliance.
Failure to use shielded cables may result in data loss and
Hardware Connections
FIGURE 7 - PHOENIX CONTACT ETHERNET
SWITCH 2891547 FL IP 54 ASSEMBLY TOOL
FIGURE 9 - SHROUND STRETCHED WITH TOOL
FIGURE 11 - SHROUD REMOVED FROM TOOL PINS
Publication ERSC-1008 Rev 1.1 – October 2017
19
