EasyRoll Software Configuration Tool
49

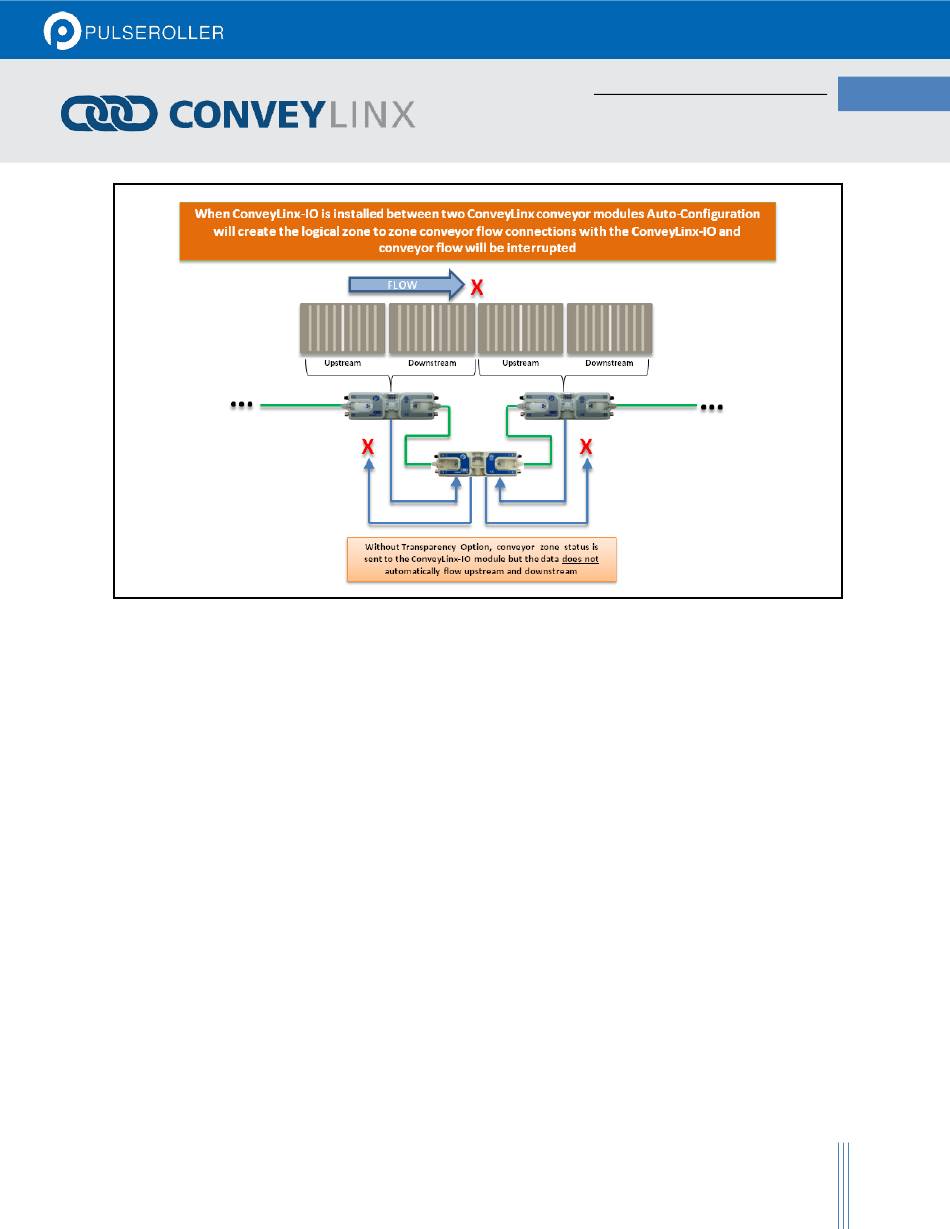

FIGURE 30 - CONVEYLINX CONVEYOR WITH CONVEYLINX-IO CONFIGURED IN THE NETWORK
In applications where a ConveyLinx-IO module is installed between two ConveyLinx-Ai2 modules that need to
maintain their logical upstream to downstream flow; the Transparency Option instructs the ConveyLinx-IO module
to automatically pass through the conveyor flow status data between its ConveyLinx-Ai2 neighbours. This in
essence makes the ConveyLinx-IO "transparent" to the conveyor flow. The conveyor will operate as if the two
ConveyLinx conveyor controllers are connected to each other as illustrated in Figure 31 .
Publication ERSC-1008 Rev 1.1 – October 2017
